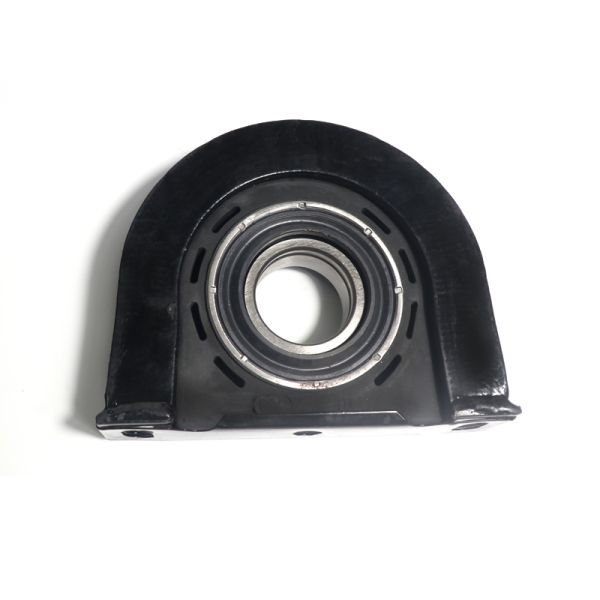

Metal Intermediate Support Assembly 2241-00017 Drive Shaft Support
Metal Intermediate Support Assembly 2241-00017 Drive Shaft Support
Metal Intermediate Support Assembly 2241-00017 Drive Shaft Support
Metal Intermediate Support Assembly 2241-00017 Drive Shaft Support
Metal Intermediate Support Assembly 2241-00017 Drive Shaft Support
Metal Intermediate Support Assembly 2241-00017 Drive Shaft Support
Metal Intermediate Support Assembly 2241-00017 Drive Shaft Support
Metal Intermediate Support Assembly 2241-00017 Drive Shaft Support
Metal Intermediate Support Assembly 2241-00017 Drive Shaft Support
Metal Intermediate Support Assembly 2241-00017 Drive Shaft Support
Specifications
Place of Origin :
China
Payment Terms :
D/A,L/C,D/P,T/T,Western Union
Brand Name :
Jechance
MOQ :
5
Weight :
Varies by part, typically between 0.5kg to 20kg
Aftersalesservice :
24/7 customer support available
Packaging Details :
Wooden pallet
Supply Ability :
1000 units per month
Installation :
Easy to install with standard tools
Material :
High-grade steel
Temperatureresistance :
-40°C to 120°C
Warranty :
12 months manufacturer warranty
Delivery Time :
7day
Price :
negotiable
Origin :
Made in China
Pricerange :
Affordable pricing depending on part type
Description
New Metal Intermediate Support Assembly 2241-00017
This OEM-grade metal intermediate support assembly (part number 2241-00017) serves as a critical drive shaft support component specifically engineered for King Long, Higer, and Zhongtong buses. Designed for coach, city bus, and passenger bus models, it ensures stable power transmission and protects the entire drive shaft system.
Product Overview
As a core transmission system component, this intermediate support assembly mounts on the frame crossbeam or body underframe to support the intermediate drive shaft. It provides stable support, compensates for installation errors, and adapts to displacement caused by engine movement and frame deformation during operation.
Key Features & Benefits
  • OEM-Grade Compatibility - Perfectly matches King Long, Higer, and Zhongtong bus drive shaft systems
  • All-Metal Construction - High-quality carbon steel/alloy steel bracket with precision bearings
  • Vibration Absorption - Rubber elastic elements reduce operating noise and absorb drive shaft vibration
  • Durable Performance - Anti-corrosion surface treatment and double-row tapered roller bearings
  • Plug-and-Play Installation - Direct replacement without modification or professional debugging
  • Rigorous Testing - Factory tested for load-bearing, vibration, wear, corrosion, and clearance
Technical Specifications
Attribute Specification
Part Number 2241-00017
Product Name New Metal Intermediate Support Assembly (Drive Shaft Support)
Applicable Vehicles King Long, Higer & Zhongtong Buses (Coach, City Bus, Passenger Bus)
Material Composition Carbon Steel/Alloy Steel Bracket + Double-Row Tapered Roller Bearing + Rubber Elastic Element
Operating Temperature -40℃ to 120℃
Bearing Axial Clearance Approximately 0.05mm
Tightening Torque 195-245 N·m
Testing Standards Load-Bearing, Vibration, Bearing Wear, Corrosion Resistance, Axial Clearance Tests
Condition 100% Brand New, Intact Structure, Smooth Bearing Rotation
Installation Guidelines
For optimal performance: clean the mounting position on the frame crossbeam, tighten bolts to specified torque (195-245 N·m), adjust bearing axial clearance to approximately 0.05mm, and inject sufficient lubricating grease into the bearing. Ensure drive shaft rotates flexibly without jamming after installation.
Important: Install in correct position aligned with drive shaft centerline. Check drive shaft for wear and deformation before installation. Proper installation ensures stable operation and prevents early wear of transmission components.
