0A 887 Truck Air Spring Suitable for Granning 16224F/Firestone W01-M58-8683
0A 887 Truck Air Spring Suitable for Granning 16224F/Firestone W01-M58-8683
0A 887 Truck Air Spring Suitable for Granning 16224F/Firestone W01-M58-8683
0A 887 Truck Air Spring Suitable for Granning 16224F/Firestone W01-M58-8683
0A 887 Truck Air Spring Suitable for Granning 16224F/Firestone W01-M58-8683
0A 887 Truck Air Spring Suitable for Granning 16224F/Firestone W01-M58-8683
0A 887 Truck Air Spring Suitable for Granning 16224F/Firestone W01-M58-8683
0A 887 Truck Air Spring Suitable for Granning 16224F/Firestone W01-M58-8683
Specifications
Brand Name :
YITAO
Model Number :
0A887
Certification :
IATF16949
Place of Origin :
China
MOQ :
50 pieces
Price :
Negotiable in person
Payment Terms :
T/T
Supply Ability :
5000pieces/Month
Delivery Time :
30 days
Packaging Details :
Carton
OE Number :
W01-M58-8683,1T15LNR3,887MK1,60211
OE NO2 :
16224F,MLF7053,0392022,134782,38683K
Type :
Truck Air Spring
Application :
For Truck Air Suspension
Packing :
Neutral Packing Or Customized Packing
Condition :
New
Warranty :
1 Year
Sealing configuration :
Press-fit cover plate + flange
Material :
Rubber
Piston material :
Iron
Description
0A 887 Truck Air Spring Suitable for Granning 16224F/Firestone W01-M58-8683
0A887 Truck Air Spring manufactured to specifications matching Granning 16224F/Firestone W01-M58-8683. This air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
Reference Numbers
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-8683 / 1T15LNR3 W01 M58 8683/W01M588683/W01M58-8683/W01-M588683/W01-M58-8683 / :1T15LNR3
Contitech 887MK1 / 60211 :887MK1 / :60211
Airtech 134782 / 38683K :134782 / :38683K
Granning 16224F :16224F
Meritor MLF7053 :MLF7053
VDL/DAF 0392022 :0392022
DAF 0392022 :0392022
Technical Specifications
Specifications Parameters
Outer diameter φ205
Weight 8.672 kg
Package Dimensions 28*28*46.5cm
Natural height 623mm
Maximum height 580mm
Minimum height 198mm
Extended Height 475mm
Compressed Height 190mm
Top Plate Width 231mm
Piston Width 167mm

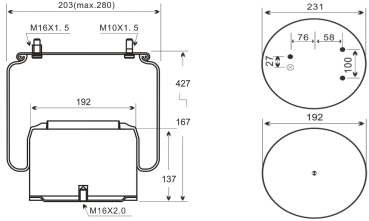

Product Drawing
0A 887 Truck Air Spring Suitable for Granning 16224F/Firestone W01-M58-8683

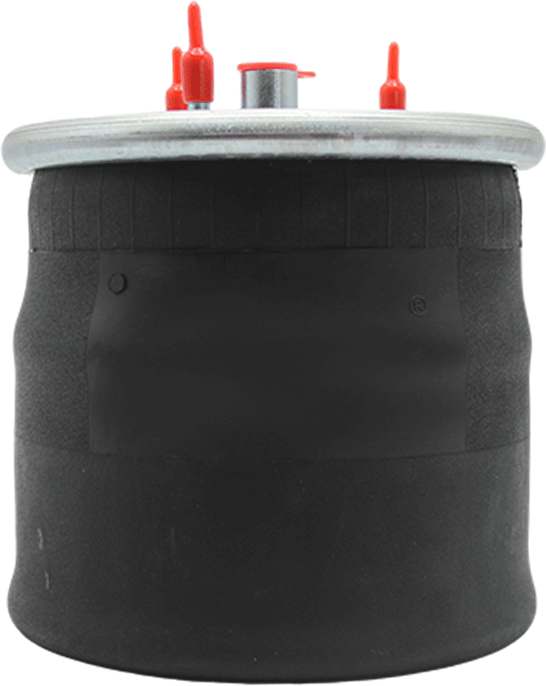

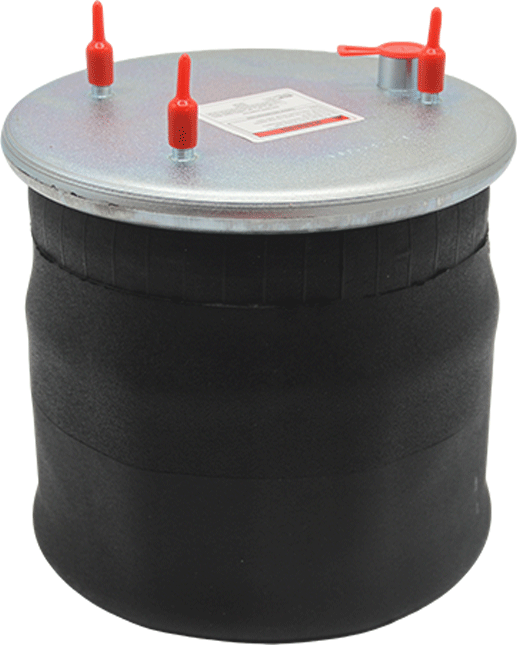

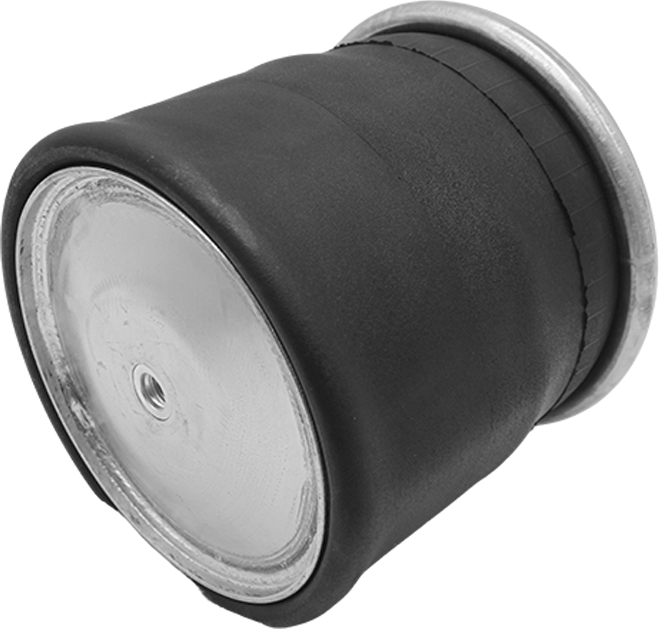

Product Images
0A 887 Truck Air Spring Suitable for Granning 16224F/Firestone W01-M58-8683 0A 887 Truck Air Spring Suitable for Granning 16224F/Firestone W01-M58-8683 0A 887 Truck Air Spring Suitable for Granning 16224F/Firestone W01-M58-8683 0A 887 Truck Air Spring Suitable for Granning 16224F/Firestone W01-M58-8683 0A 887 Truck Air Spring Suitable for Granning 16224F/Firestone W01-M58-8683 0A 887 Truck Air Spring Suitable for Granning 16224F/Firestone W01-M58-8683 0A 887 Truck Air Spring Suitable for Granning 16224F/Firestone W01-M58-8683 0A 887 Truck Air Spring Suitable for Granning 16224F/Firestone W01-M58-8683 0A 887 Truck Air Spring Suitable for Granning 16224F/Firestone W01-M58-8683
Images shown are for reference only. Actual product may vary slightly.
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions.
