1V8609 Truck Air Spring Suitable for Contitech 940MB/Phoenix 1DK21K
1V8609 Truck Air Spring Suitable for Contitech 940MB/Phoenix 1DK21K
1V8609 Truck Air Spring Suitable for Contitech 940MB/Phoenix 1DK21K
1V8609 Truck Air Spring Suitable for Contitech 940MB/Phoenix 1DK21K
1V8609 Truck Air Spring Suitable for Contitech 940MB/Phoenix 1DK21K
1V8609 Truck Air Spring Suitable for Contitech 940MB/Phoenix 1DK21K
1V8609 Truck Air Spring Suitable for Contitech 940MB/Phoenix 1DK21K
1V8609 Truck Air Spring Suitable for Contitech 940MB/Phoenix 1DK21K
Specifications
Brand Name :
YITAO
Model Number :
1V8609
Certification :
IATF16949
Place of Origin :
China
MOQ :
50 pieces
Price :
Negotiable in person
Payment Terms :
T/T
Supply Ability :
5000pieces/Month
Delivery Time :
1 ~ 30 days
Packaging Details :
Carton
OE Number :
W01-M58-8609,1T17J,1R11-763,940MB,9518117630,15919,BPW30K,05.429.42.41.1,05.429.40.93.1
OE NO2 :
0542941371,1DK21K,CPL.BPW30K,D11B39,MLF7042,130202,3940K
Type :
Truck Air Spring
Application :
For Truck Air Suspension
Packing :
Neutral Packing Or Customized Packing
Condition :
New
Warranty :
1 Year
Sealing configuration :
Crimp Cover Plate + Vulcanized Sealing Plate
Material :
Rubber
Piston material :
Plastic
Description
1V8609 Truck Air Spring Suitable for Contitech 940MB/Phoenix 1DK21K
1V8609 Truck Air Spring Manufactured to specifications matching Contitech 940MB/Phoenix 1DK21K, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
Product Overview
1V 8609 Truck Air Spring Manufactured to specifications matching Contitech 940MB/Phoenix 1DK21K, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
Cross References
Brand Reference Numbers Numbering Discrepancy
FriestoneW01-M58-8609 / 1T17JW01 M58 8609/W01M588609/W01M58-8609/W01-M588609/W01-M58-8609 / :1T17J
Goodyear1R11-7631R11 763/1R11763/1R11-763
Contitech940MB:940MB
WABCO9518117630:9518117630
Granning15919:15919
BPW TypeBPW30K:BPW30K
BPW05.429.42.41.1 / 05.429.40.93.1 / 054294137105.429.42.41.1 / 05.429.40.93.1 / :0542941371
Phoenix1DK21K / CPL.BPW30K:1DK21K / CPL.BPW30K
Dunlop FrD11B39:D11B39
MeritorMLF7042:MLF7042
Airtech130202 / 3940K:130202 / :3940K
Technical Specifications
Specifications Parameters
Outer diameterφ255
Weight9.893 kg
Package Dimensions27*27*30cm
Natural height562mm
Maximum height542mm
Minimum height211mm
Extended Height550mm
Compressed Height215mm
Top Plate Width262mm
Piston Width201mm

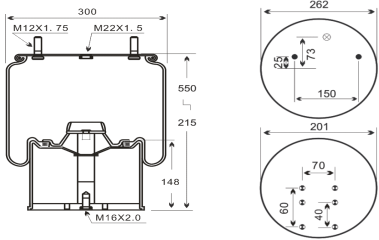

1V8609 Truck Air Spring Drawing
1V8609 Truck Air Spring Suitable for Contitech 940MB/Phoenix 1DK21K

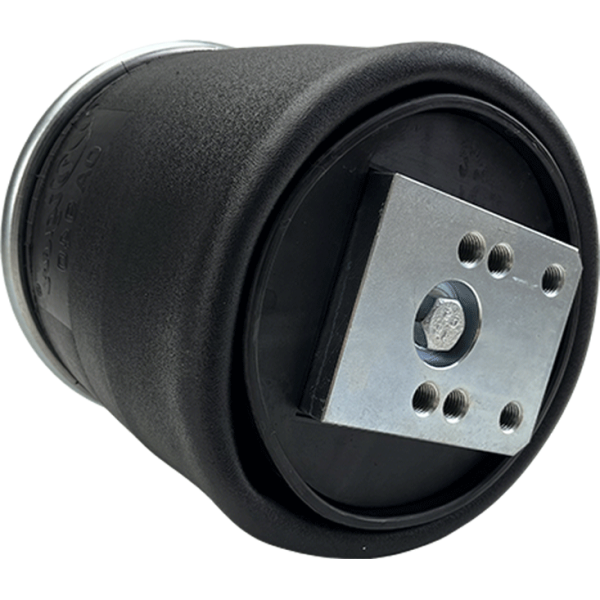

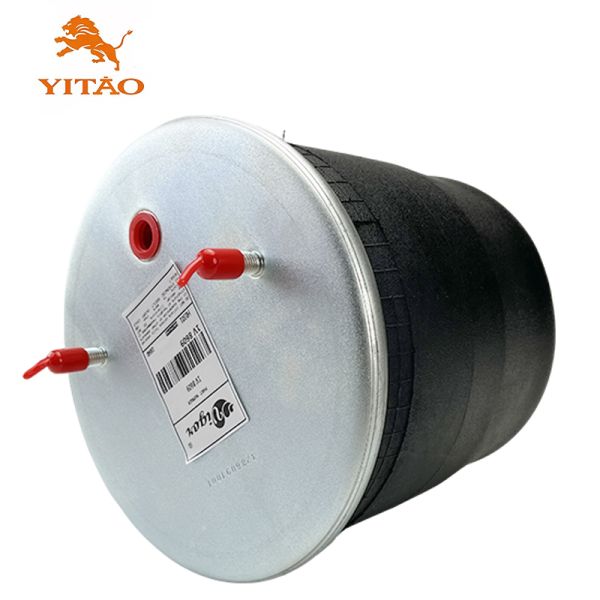

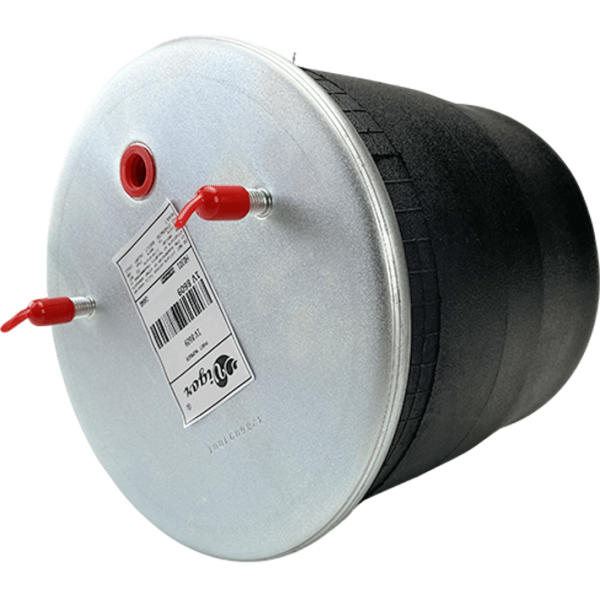

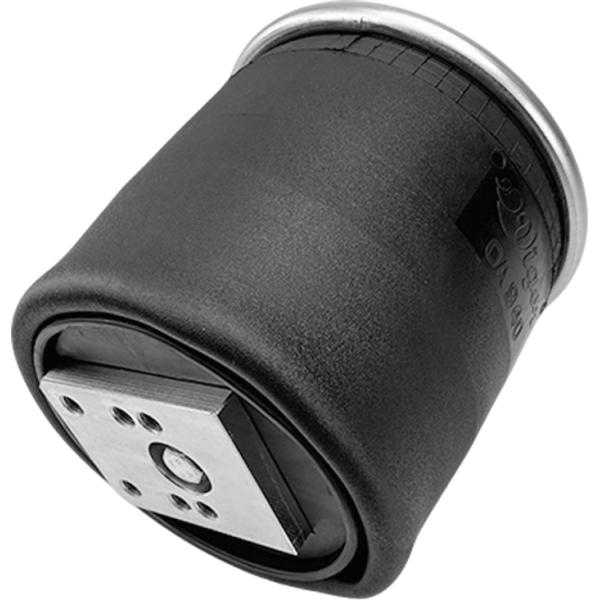

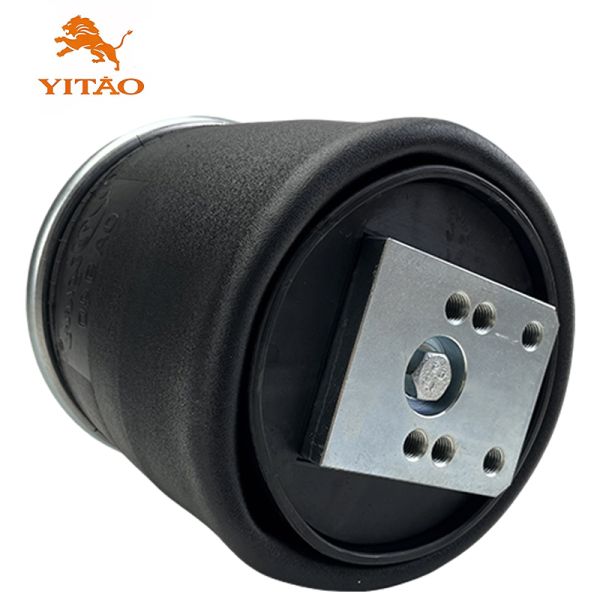

940MB 1DK21K 15919 Product Images
1V8609 Truck Air Spring Suitable for Contitech 940MB/Phoenix 1DK21K 1V8609 Truck Air Spring Suitable for Contitech 940MB/Phoenix 1DK21K 1V8609 Truck Air Spring Suitable for Contitech 940MB/Phoenix 1DK21K
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
1V8609 Truck Air Spring Suitable for Contitech 940MB/Phoenix 1DK21K 1V8609 Truck Air Spring Suitable for Contitech 940MB/Phoenix 1DK21K 1V8609 Truck Air Spring Suitable for Contitech 940MB/Phoenix 1DK21K 1V8609 Truck Air Spring Suitable for Contitech 940MB/Phoenix 1DK21K 1V8609 Truck Air Spring Suitable for Contitech 940MB/Phoenix 1DK21K 1V8609 Truck Air Spring Suitable for Contitech 940MB/Phoenix 1DK21K
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1 to 30 business days.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, usually we send the samples by TNT, DHL, FEDEX or UPS. It will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM is welcomed.
I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
