1V8105 Truck Air Spring Suitable for Firestone C01-M58-1163/1T9L-11/1T19LB-12
1V8105 Truck Air Spring Suitable for Firestone C01-M58-1163/1T9L-11/1T19LB-12
1V8105 Truck Air Spring Suitable for Firestone C01-M58-1163/1T9L-11/1T19LB-12
1V8105 Truck Air Spring Suitable for Firestone C01-M58-1163/1T9L-11/1T19LB-12
1V8105 Truck Air Spring Suitable for Firestone C01-M58-1163/1T9L-11/1T19LB-12
1V8105 Truck Air Spring Suitable for Firestone C01-M58-1163/1T9L-11/1T19LB-12
1V8105 Truck Air Spring Suitable for Firestone C01-M58-1163/1T9L-11/1T19LB-12
1V8105 Truck Air Spring Suitable for Firestone C01-M58-1163/1T9L-11/1T19LB-12
Specifications
Brand Name :
YITAO
Model Number :
1V8105
Certification :
IATF16949
Place of Origin :
China
MOQ :
50 pieces
Price :
Negotiable in person
Payment Terms :
T/T
Supply Ability :
5000pieces/Month
Delivery Time :
1 ~ 30 days
Packaging Details :
Carton
OE Number :
W01-M58-8105,C01-M58-1163,1T9L-11,1T19LB-12
Type :
Truck Air Spring
Application :
For Truck Air Suspension
Packing :
Neutral Packing Or Customized Packing
Condition :
New
Warranty :
1 Year
Sealing configuration :
Crimp cover plate + vulcanized sealing plate
Material :
Rubber
Piston material :
Iron
Description
1V8105 Truck Air Spring Suitable for Firestone C01-M58-1163/1T9L-11/1T19LB-12
1V8105 Truck Air Spring Suitable for Firestone C01-M58-1163/1T9L-11/1T19LB-12
Product Overview

1V 8105 Truck Air Spring manufactured to specifications matching Firestone C01-M58-1163/1T9L-11/1T19LB-12. This air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-8105 W01 M58 8105/W01M588105/W01M58-8105/W01-M588105/W01-M58-8105
Firestone C01-M58-1163 C01 M58 1163/C01M581163/C01M58-1163/C01-M581163/C01-M58-1163
Firestone 1T9L-11 1T9L-11/1T19LB12/1T19LB 12
Firestone 1T19LB-12 1T19LB-12/1T19LB12/1T19LB 12
Technical Specifications
Specifications Parameters
Outer diameter φ265
Weight To be dated
Package Dimensions To be dated
Natural height 735mm
Maximum height 715mm
Minimum height 275mm
Extended Height 710mm
Compressed Height 275mm
Top Plate Width 289mm
Piston Width 261mm

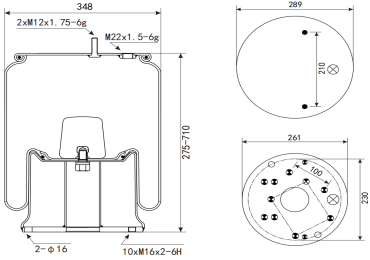

1V8105 Truck Air Spring Drawing
1V8105 Truck Air Spring Suitable for Firestone C01-M58-1163/1T9L-11/1T19LB-12

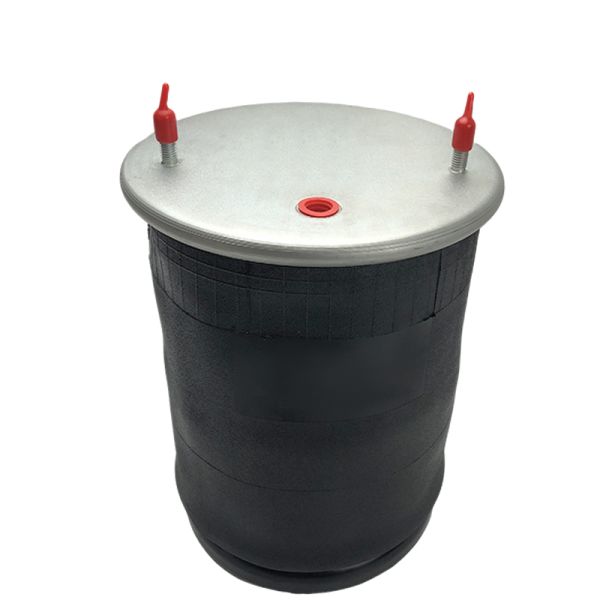

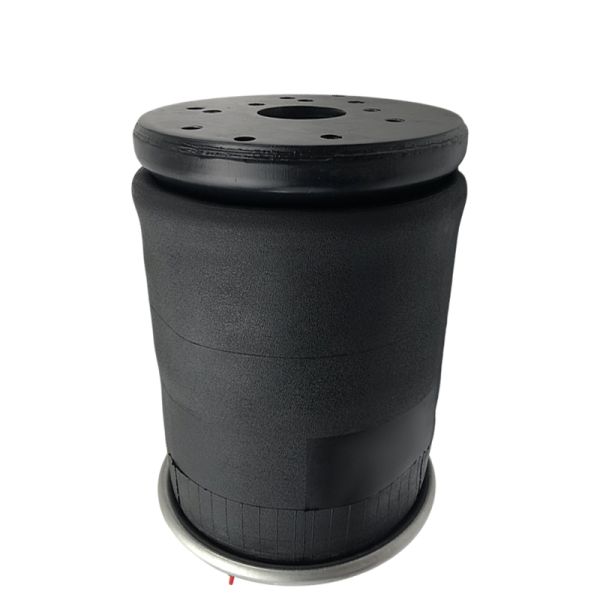

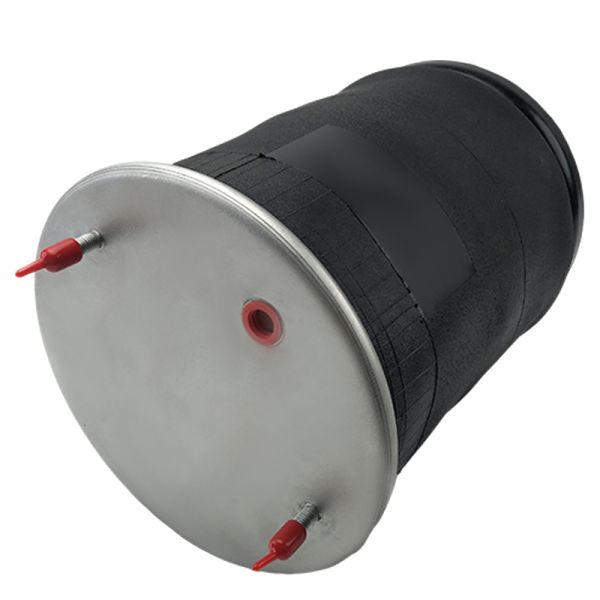

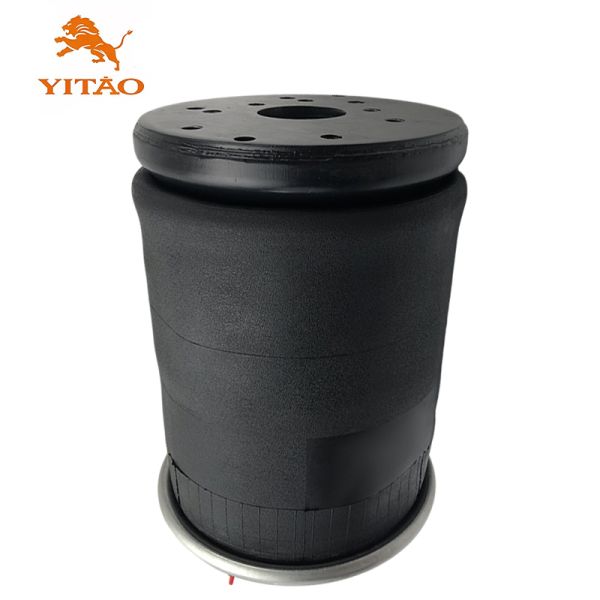

C01-M58-1163 1T9L-11 1T19LB-12 Product Images
1V8105 Truck Air Spring Suitable for Firestone C01-M58-1163/1T9L-11/1T19LB-12 1V8105 Truck Air Spring Suitable for Firestone C01-M58-1163/1T9L-11/1T19LB-12 1V8105 Truck Air Spring Suitable for Firestone C01-M58-1163/1T9L-11/1T19LB-12
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
1V8105 Truck Air Spring Suitable for Firestone C01-M58-1163/1T9L-11/1T19LB-12 1V8105 Truck Air Spring Suitable for Firestone C01-M58-1163/1T9L-11/1T19LB-12 1V8105 Truck Air Spring Suitable for Firestone C01-M58-1163/1T9L-11/1T19LB-12 1V8105 Truck Air Spring Suitable for Firestone C01-M58-1163/1T9L-11/1T19LB-12 1V8105 Truck Air Spring Suitable for Firestone C01-M58-1163/1T9L-11/1T19LB-12 1V8105 Truck Air Spring Suitable for Firestone C01-M58-1163/1T9L-11/1T19LB-12
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1 to 30 business days.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
Frequently Asked Questions
1. IS THE SAMPLE AVAILABLE?
Yes, usually we send the samples by TNT, DHL, FEDEX or UPS. It will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.
2. WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.
3. CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM is welcomed.
4. I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
