Truck Air Spring 1R14-028 Goodyear Air Spring Firestone Air Spring W01-358-9177
Truck Air Spring 1R14-028 Goodyear Air Spring Firestone Air Spring W01-358-9177
Truck Air Spring 1R14-028 Goodyear Air Spring Firestone Air Spring W01-358-9177
Truck Air Spring 1R14-028 Goodyear Air Spring Firestone Air Spring W01-358-9177
Truck Air Spring 1R14-028 Goodyear Air Spring Firestone Air Spring W01-358-9177
Truck Air Spring 1R14-028 Goodyear Air Spring Firestone Air Spring W01-358-9177
Truck Air Spring 1R14-028 Goodyear Air Spring Firestone Air Spring W01-358-9177
Truck Air Spring 1R14-028 Goodyear Air Spring Firestone Air Spring W01-358-9177
Specifications
Brand Name :
YITAO
Model Number :
1V 9177/1V9177
Certification :
IATF16949
Place of Origin :
China
MOQ :
50 pieces
Price :
Negotiable in person
Payment Terms :
T/T
Supply Ability :
5000pieces/Month
Delivery Time :
1 ~ 30 days
Packaging Details :
Carton
OE Numbe8r :
W01-358-9177,1110.5-17A316,4810N04,1R14-028,029,M3517,90557003,1090216,S2065
OE NO2 :
6426,8316,6365,Sc2046,3529177,554779C,1003589177C,3130494
YITAO Number :
1V 9177/1V9177
Type :
Truck Air Spring
Application :
For Truck Air Suspension
Condition :
Brand New
Warranty :
12 Months
Typical shipping time :
3-10 Days
Sealing configuration :
Crimp Cover Plate + Vulcanized Sealing Plate
Material :
Natural rubber
Piston material :
Aluminum
Packing :
Neutral Packing Or Customized Packing
Description
Product Overview

Manufactured to specifications matching Firestone W01-358-9177/Goodyear 1R14-028, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-9177 W01-358-9177
Contitech 1110.5-17A316 / 4810N04 11105-17A316 / 4810N04
Goodyear 1R14-028/029 1R14-028/029
Brake&Wheel M3517 M3517
Holland(Neway) 90557003 90557003
R&S Truck&Body 1090216 1090216
Hendrickson Trailer S2065 S2065
Tuthill 6426 6426
Triangle 8316/6365 8316/6365
Leland Sc2046 Sc2046
Dayton 3529177 3529177
Navistar 554779C 554779C
Ridewell 1003589177C 1003589177C
Voivo 3130494 3130494

Technical Specifications
Specifications Parameters
Outer diameter φ265
Weight 11.368 kg
Package Dimensions 30*30*39.5cm
Natural height 558mm
Maximum height 538mm
Minimum height 196mm
Extended Height 540mm
Compressed Height 180mm
Top Plate Width 289mm
Piston Width 200mm

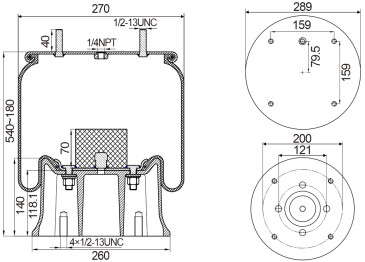

1V 9177/1V9177 Truck Air Spring Drawing
Truck Air Spring 1R14-028 Goodyear Air Spring Firestone Air Spring W01-358-9177

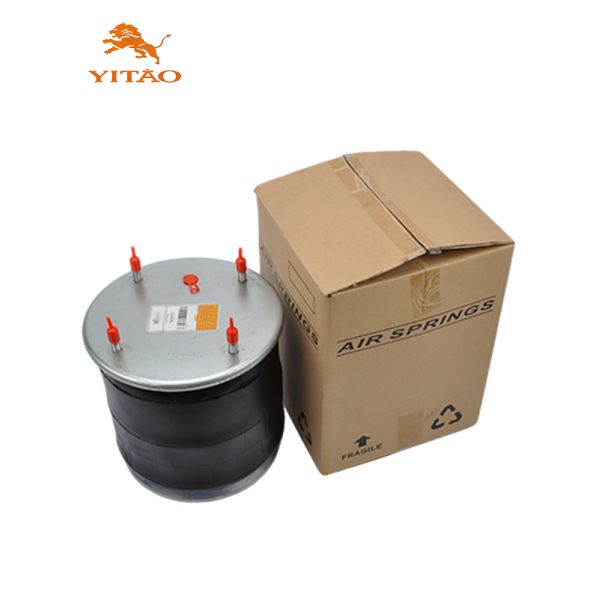

W01-358-9177 1R14-028 Product Images
Truck Air Spring 1R14-028 Goodyear Air Spring Firestone Air Spring W01-358-9177Truck Air Spring 1R14-028 Goodyear Air Spring Firestone Air Spring W01-358-9177Truck Air Spring 1R14-028 Goodyear Air Spring Firestone Air Spring W01-358-9177
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
Truck Air Spring 1R14-028 Goodyear Air Spring Firestone Air Spring W01-358-9177 Truck Air Spring 1R14-028 Goodyear Air Spring Firestone Air Spring W01-358-9177 Truck Air Spring 1R14-028 Goodyear Air Spring Firestone Air Spring W01-358-9177 Truck Air Spring 1R14-028 Goodyear Air Spring Firestone Air Spring W01-358-9177 Truck Air Spring 1R14-028 Goodyear Air Spring Firestone Air Spring W01-358-9177 Truck Air Spring 1R14-028 Goodyear Air Spring Firestone Air Spring W01-358-9177
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1–30 business days

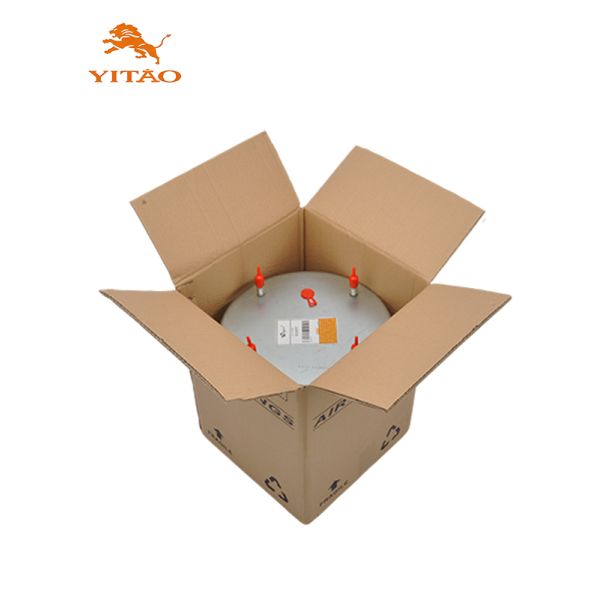

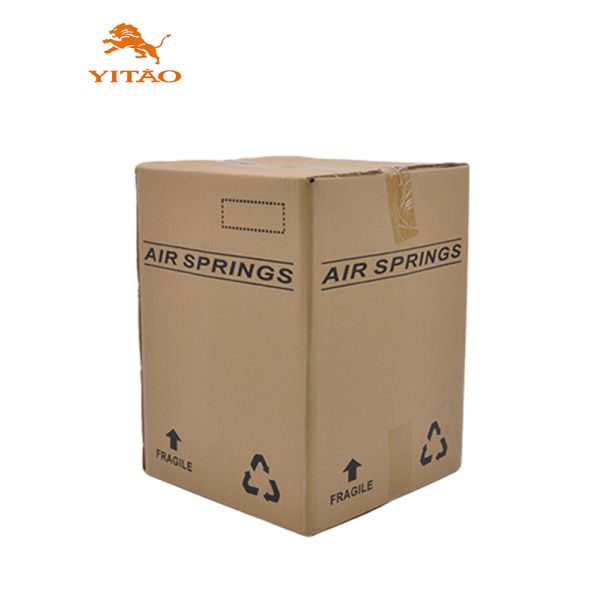

  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
Frequently Asked Questions
1. IS THE SAMPLE AVAILABLE?
Yes, usually we send the samples by TNT, DHL, FEDEX or UPS. It will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.
2. WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.
3. CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM is welcomed.
4. I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
