Specifications
Brand Name :
YITAO
Model Number :
1V 8864
Certification :
IATF16949
Place of Origin :
China
MOQ :
50 pieces
Price :
Negotiable in person
Payment Terms :
T/T
Supply Ability :
5000pieces/Month
Delivery Time :
30
Packaging Details :
Carton
OE Number :
W01-358-8864,1T15M-9,03-08716
Condition :
New
Type :
Truck Air Spring
gross weight :
5.322 kg
net weight :
4.832 kg
packing size :
27*27*30 cm
Outer diameter :
φ270
Maximum height :
603mm
Minimum height :
195mm
Piston material :
Plastic
Sealing configuration :
Crimp cover plate + vulcanized sealing plate
Description
1V 8864 Truck Air Spring
Suitable for Firestone W01-358-8864 1T15M-9 / Peterbilt 03-08716
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-8864 W013588864 / W01-3588864 / W01 358 8864
Firestone 1T15M-9 1T15M9 / 1T15M-9 / 1T15 M 9
Peterbilt 03-08716 0308716 / 03 08716 / :0308716
Technical Specifications
Specifications Parameters
Extended Height 623mm
Compressed Height 197mm
Top Plate Width 231mm
Piston Width 205mm
Weight 5.322 kg
Package Dimensions 27*27*30 cm
Product Information
  • Brand Name: Yiconton
  • Model Number: 1V 8864 W01-358-8864, 1T15M-9, 03-08716
  • Manufacturing Origin: China
  • Certification: IATF16949
  • Minimum Order Quantity: 50 pieces

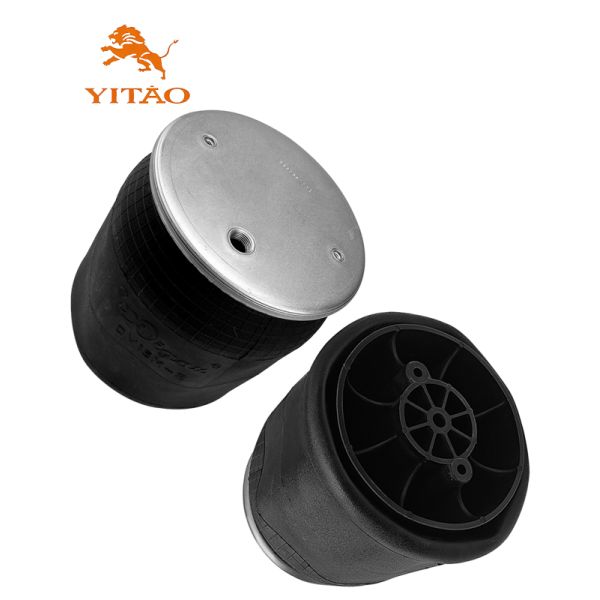

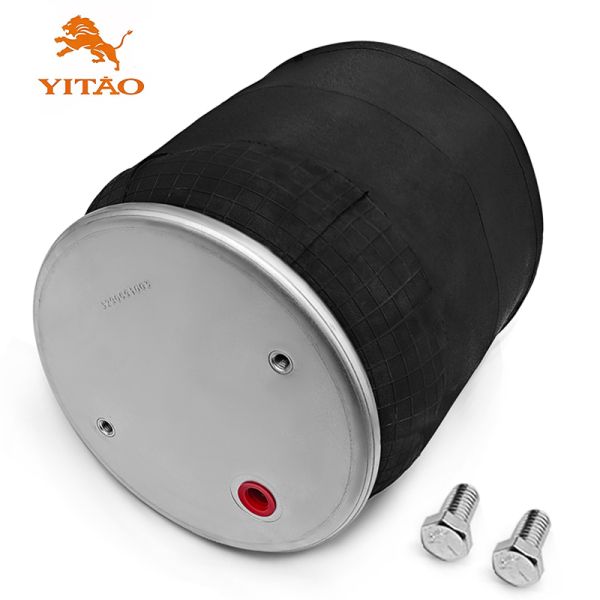

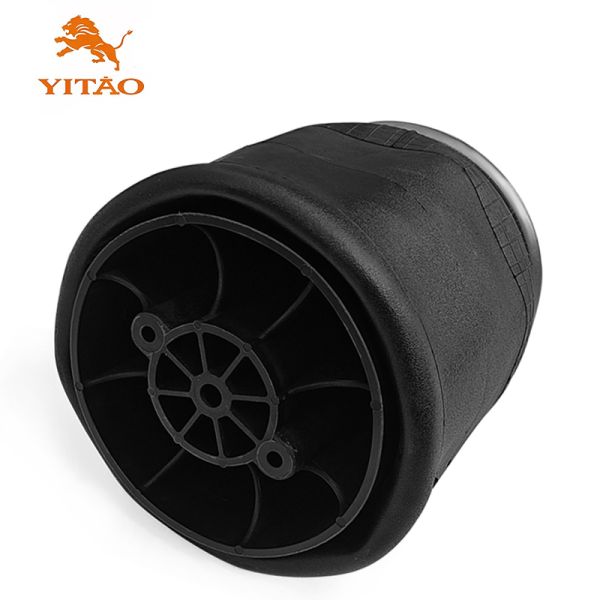

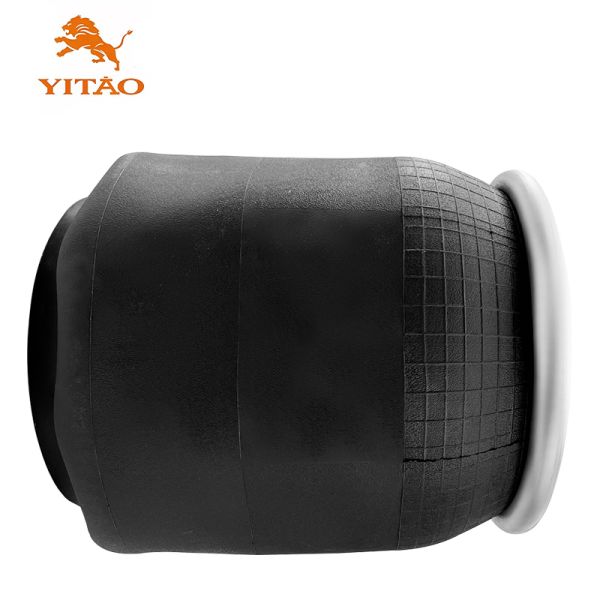

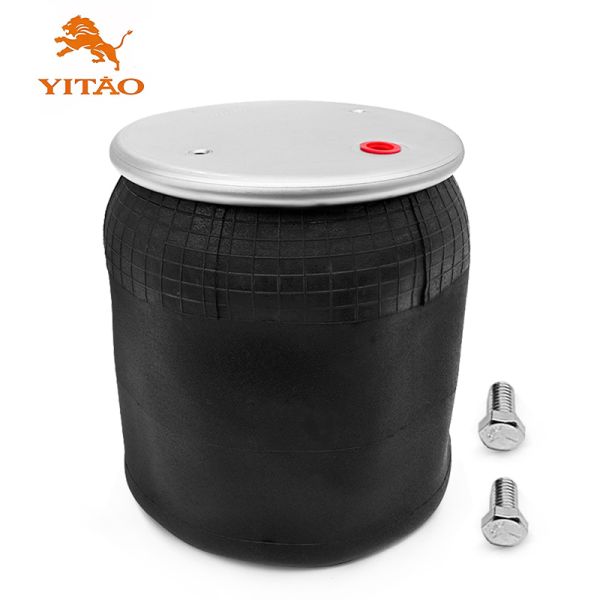

Product Images
1V 8864 Truck Air Spring, Suitable for Firestone W01-358-8864 1T15M-9/Peterbilt 03-087161V 8864 Truck Air Spring, Suitable for Firestone W01-358-8864 1T15M-9/Peterbilt 03-087161V 8864 Truck Air Spring, Suitable for Firestone W01-358-8864 1T15M-9/Peterbilt 03-087161V 8864 Truck Air Spring, Suitable for Firestone W01-358-8864 1T15M-9/Peterbilt 03-08716
Manufacturing Excellence
1V 8864 Truck Air Spring, Suitable for Firestone W01-358-8864 1T15M-9/Peterbilt 03-08716 1V 8864 Truck Air Spring, Suitable for Firestone W01-358-8864 1T15M-9/Peterbilt 03-08716 1V 8864 Truck Air Spring, Suitable for Firestone W01-358-8864 1T15M-9/Peterbilt 03-08716 1V 8864 Truck Air Spring, Suitable for Firestone W01-358-8864 1T15M-9/Peterbilt 03-08716 1V 8864 Truck Air Spring, Suitable for Firestone W01-358-8864 1T15M-9/Peterbilt 03-08716 1V 8864 Truck Air Spring, Suitable for Firestone W01-358-8864 1T15M-9/Peterbilt 03-08716
Delivery Information
  • Delivery Time: Orders shipped after payment receipt. Shipment completed within 1-30 business days depending on order size
  • Packing Method: Standard brown carton packing; custom packing available upon request
  • Shipping Marks: Standard weight and size display; custom shipping marks available
  • Transportation Methods: Sea, air, express delivery, railway, and combined transportation options
  • International Transport: Strict standard packing to prevent damage. Contact us for any logistics inquiries
Frequently Asked Questions
Is the sample available?
Yes, samples available via TNT, DHL, FEDEX or UPS (approx. 3-day delivery). Customers responsible for sample costs and freight. Sample costs refunded after order placement.
What is your warranty term?
Full container load orders receive 1% free spare parts. 12-month warranty from shipment date. Customers responsible for replacement part costs during warranty period.
Can I use my own logo and design on products?
Yes, OEM services welcomed.
I cannot find the items I want from your website, can you offer the products I need?
Yes. We provide product sourcing services. Please provide detailed information about required items.
