1V 6032 Truck Air Spring Suitable for Firestone W01-358-9875/Goodyear 1R12-432/Navistar 3541731C1
1V 6032 Truck Air Spring Suitable for Firestone W01-358-9875/Goodyear 1R12-432/Navistar 3541731C1
1V 6032 Truck Air Spring Suitable for Firestone W01-358-9875/Goodyear 1R12-432/Navistar 3541731C1
1V 6032 Truck Air Spring Suitable for Firestone W01-358-9875/Goodyear 1R12-432/Navistar 3541731C1
1V 6032 Truck Air Spring Suitable for Firestone W01-358-9875/Goodyear 1R12-432/Navistar 3541731C1
1V 6032 Truck Air Spring Suitable for Firestone W01-358-9875/Goodyear 1R12-432/Navistar 3541731C1
1V 6032 Truck Air Spring Suitable for Firestone W01-358-9875/Goodyear 1R12-432/Navistar 3541731C1
1V 6032 Truck Air Spring Suitable for Firestone W01-358-9875/Goodyear 1R12-432/Navistar 3541731C1
Specifications
Brand Name :
YITAO
Model Number :
1V 6032
Certification :
IATF16949
Place of Origin :
China
MOQ :
50 pieces
Price :
Negotiable in person
Payment Terms :
T/T
Supply Ability :
5000pieces/Month
Delivery Time :
30
Packaging Details :
Carton
OE Number :
W01-358-9875,1T15MT-9,1R12-432,566-24-3-066,566-24-7-236,3541731C1,AS9900
Type :
Truck Air Spring
Condition :
New
gross weight :
6.973 kg
net weight :
6.4 kg
packing size :
28*27*36cm
Outer diameter :
φ255
Natural height :
634mm
Maximum height :
580mm
Minimum height :
170mm
Sealing configuration :
Press-fit cover plate + flange
Piston material :
Plastic
Description
1V 6032 Truck Air Spring
High-quality replacement air spring designed for heavy-duty truck applications, compatible with multiple OEM part numbers including Firestone W01-358-9875 1T15MT-9/Goodyear 1R12-432/Navistar 3541731C1
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-9875 W013589875 / W01-3589875 / W01 358 9875
Firestone 1T15MT-9 1T15MT9 / 1T15MT-9 / 1T15 MT 9
Goodyear 1R12-432 1R12432 / 1R12 432 / :1R12432
Goodyear 566-24-3-066 566243066 / 566 24 3 066 / :566243066
Goodyear 566-24-7-236 566247236 / 566 24 7 236 / :566247236
Navistar 3541731C1 :3541731C1
Dallas AS9900 :AS9900
Technical Specifications
Specifications Parameters
Extended Height 600mm
Compressed Height 200mm
Top Plate Width 231mm
Piston Width 255mm
Weight 6.973 kg
Package Dimensions 28*27*36cm
Product Information
  • Brand Name: Yiconton
  • Model Number: 1V 6032
  • OEM: W01-358-9875, 1T15MT-9, 1R12-432, 566-24-3-066, 566-24-7-236, 3541731C1, AS9900
  • Certification: IATF16949
  • Minimum Order Quantity: 50 pieces

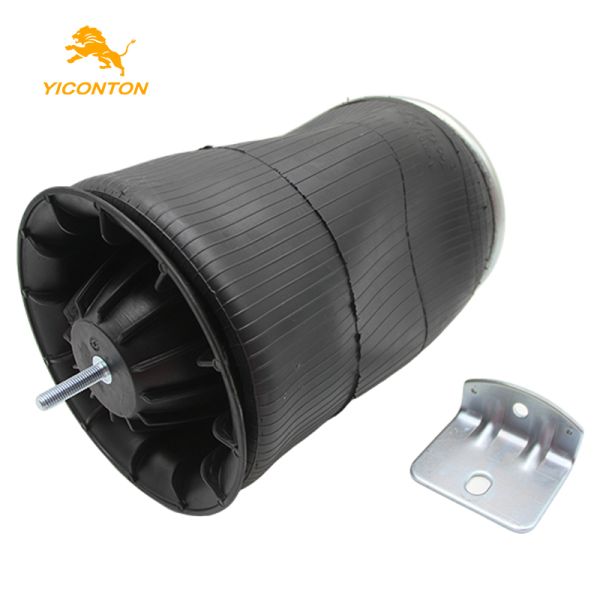

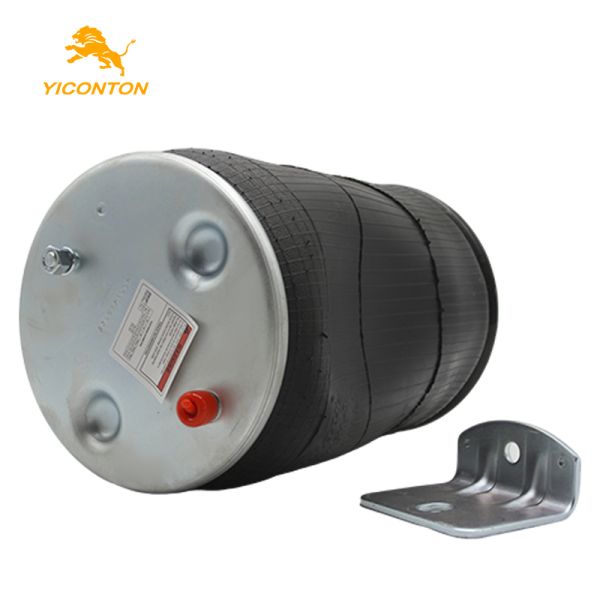

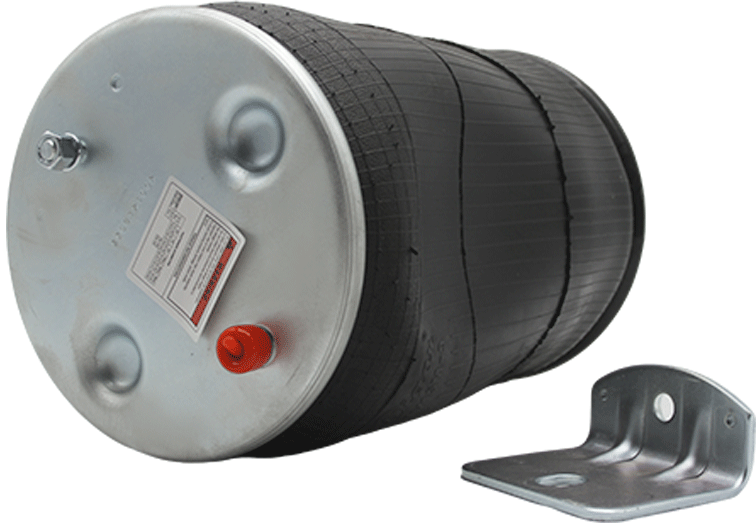

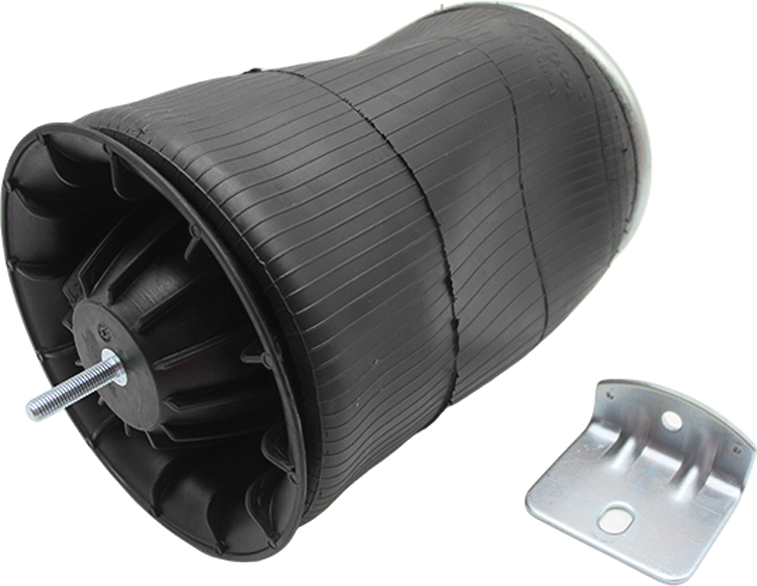

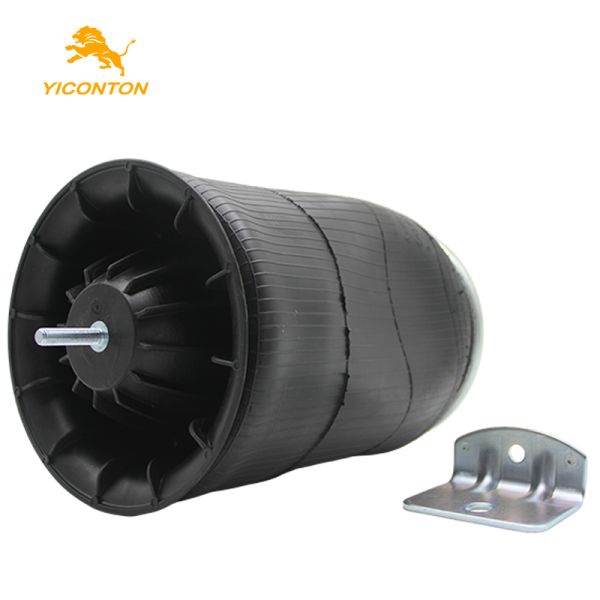

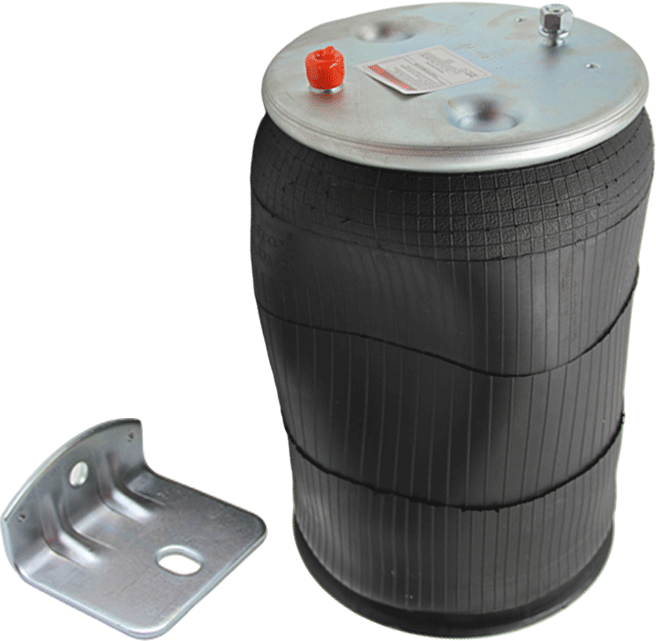

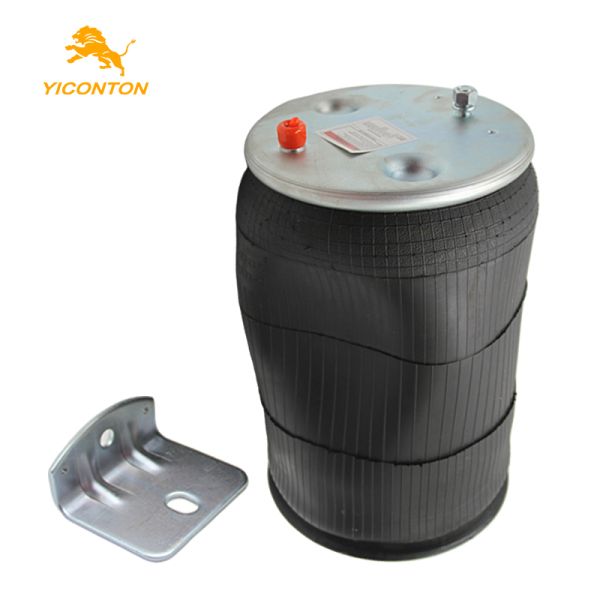

Product Images
1V 6032 Truck Air Spring Suitable for Firestone W01-358-9875/Goodyear 1R12-432/Navistar 3541731C1 1V 6032 Truck Air Spring Suitable for Firestone W01-358-9875/Goodyear 1R12-432/Navistar 3541731C1 1V 6032 Truck Air Spring Suitable for Firestone W01-358-9875/Goodyear 1R12-432/Navistar 3541731C1 1V 6032 Truck Air Spring Suitable for Firestone W01-358-9875/Goodyear 1R12-432/Navistar 3541731C1 1V 6032 Truck Air Spring Suitable for Firestone W01-358-9875/Goodyear 1R12-432/Navistar 3541731C1 1V 6032 Truck Air Spring Suitable for Firestone W01-358-9875/Goodyear 1R12-432/Navistar 3541731C1
Images shown are for reference only. Actual product may vary slightly.
