Specifications
Brand Name :
YITAO
Model Number :
1V 9307
Certification :
IATF16949
Place of Origin :
China
MOQ :
50 pieces
Price :
Negotiable in person
Payment Terms :
T/T
Supply Ability :
5000pieces/Month
Delivery Time :
30
Packaging Details :
Carton
OE Number :
W01-358-9307,1T15M.1,90557129,AR-41,45845-1 (plastic)
Type :
Truck Air Spring
Application :
For Truck Air Suspension
Packing :
Neutral Packing Or Customized Packing
Condition :
New
Warranty :
1 Year
Sealing configuration :
Crimp Cover Plate + Vulcanized Sealing Plate
Material :
Rubber
Piston material :
Plastic
Description
1V 9307 Truck Air Spring Suitable for Firestone W01-358-9307 / Holland(Neway) AR-41
1V 9307 Truck Air Spring Manufactured to specifications matching Firestone W01-358-9307 / Holland(Neway) AR-41, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-9307 W01 358 9307 / W013589307 / W01358-9307 / W01-3589307 / W01-358-9307
Firestone 1T15M-1 1T15M 1 / 1T15M1 / 1T15M-1
Holland(Neway) 90557129 :90557129
Holland(Neway) AR-41,45&45-1(plastic) AR 41,45&45 1(plastic) / AR41,45&451(plastic) / AR-41,45&45-1(plastic)
Technical Specifications
Specifications Parameters
Outer diameter φ255
Weight 5.785
Package Dimensions 27*27*36cm
Natural height 355mm
Maximum height 335mm
Minimum height 109mm
Extended Height 310mm
Compressed Height 120mm
Top Plate Width 231mm
Piston Width 242mm

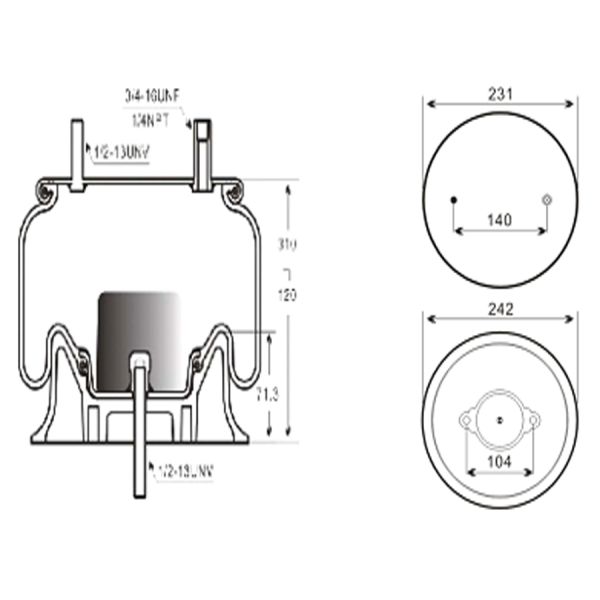

1V 9307 Truck Air Spring Drawing
1V 9307 Truck Air Spring Suitable for Firestone W01-358-9307 / Holland(Neway) AR-41
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

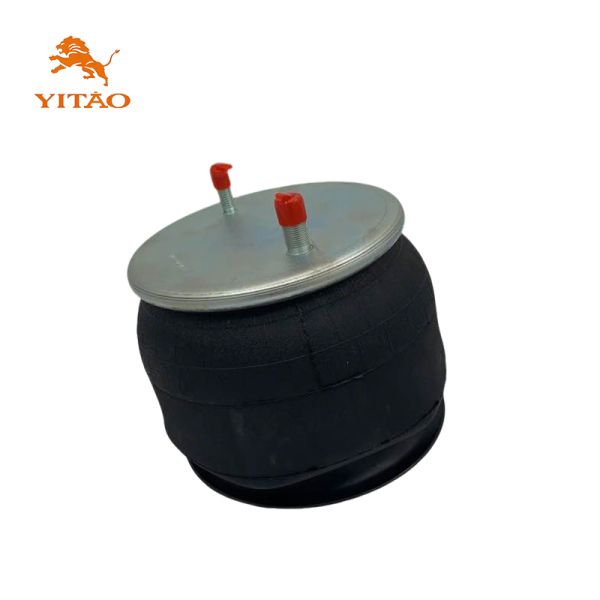

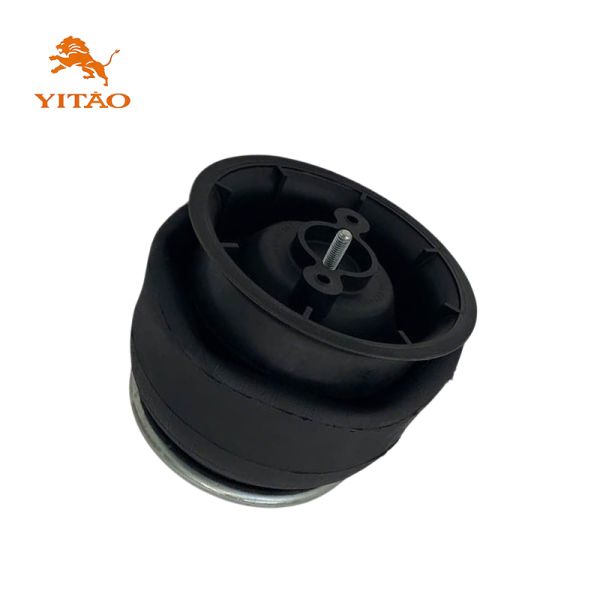

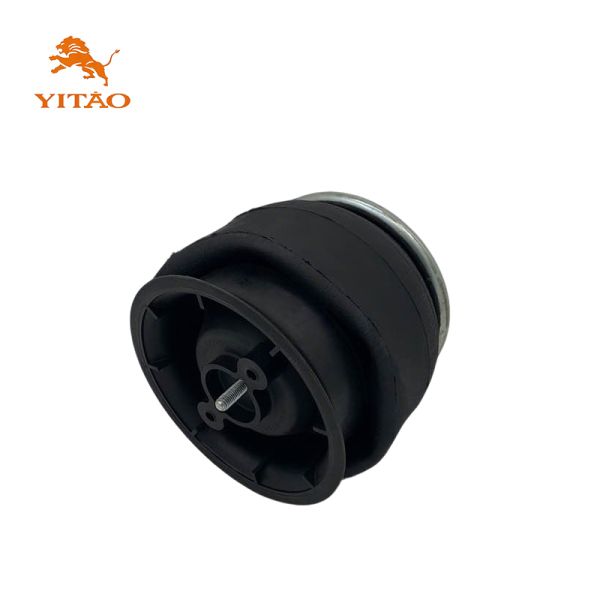

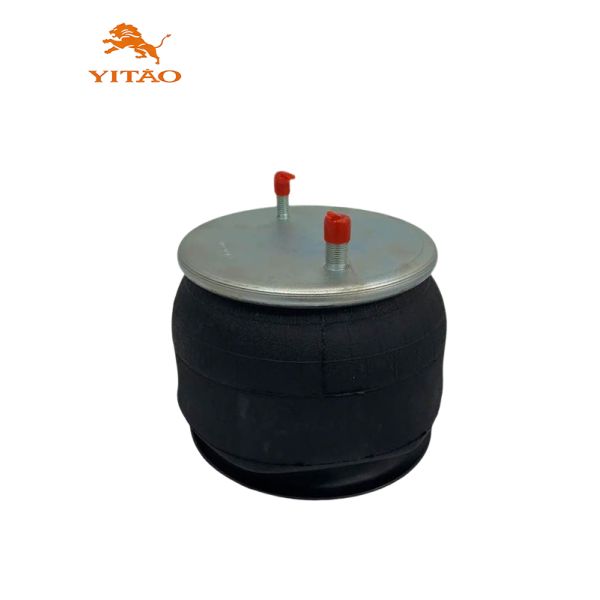

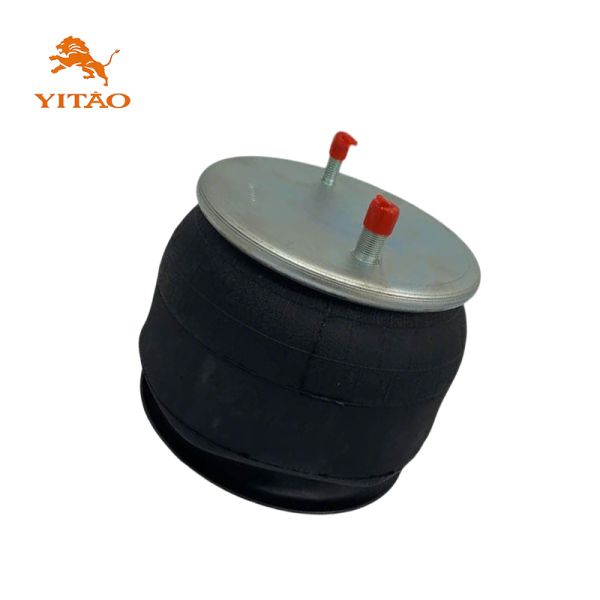

W01-358-9307 1T15M.1 Truck Air Spring Real Pictures
1V 9307 Truck Air Spring Suitable for Firestone W01-358-9307 / Holland(Neway) AR-41 1V 9307 Truck Air Spring Suitable for Firestone W01-358-9307 / Holland(Neway) AR-41 1V 9307 Truck Air Spring Suitable for Firestone W01-358-9307 / Holland(Neway) AR-41 1V 9307 Truck Air Spring Suitable for Firestone W01-358-9307 / Holland(Neway) AR-41 1V 9307 Truck Air Spring Suitable for Firestone W01-358-9307 / Holland(Neway) AR-41
Images shown are for reference only. Actual product may vary slightly.
