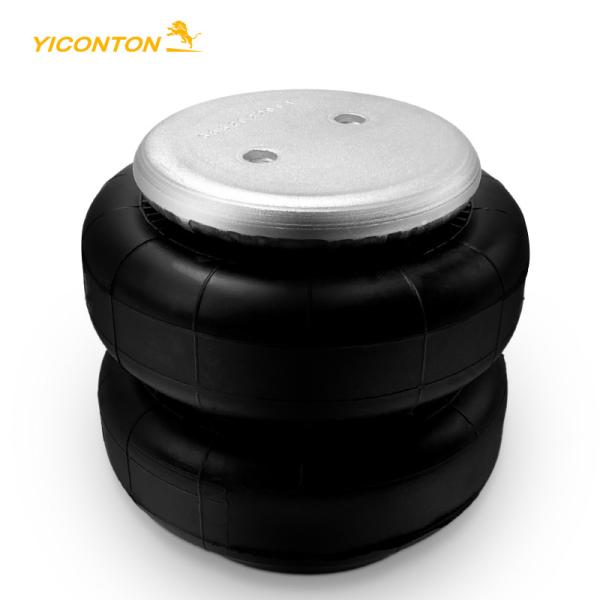

Double Convoluted Air Bags Truck Air Spring W01-358-7025 W013587025
Double Convoluted Air Bags Truck Air Spring W01-358-7025 W013587025
Double Convoluted Air Bags Truck Air Spring W01-358-7025 W013587025
Double Convoluted Air Bags Truck Air Spring W01-358-7025 W013587025
Specifications
Brand Name :
Yiconton
Model Number :
2B 5202
Certification :
IATF16949
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
500pieces/Month
Delivery Time :
5-8 Work Days
Packaging Details :
Carton
Main Material :
Rubber+Metal
Product name :
Double Convoluted air spring
Net weight :
1.545 kg
Package dimension :
29*29*38 mm
Bellows Type :
Double Convoluted
Cross references :
W01-358-7025 W013587025 W01 358 7025
Operation :
Gas-filled
Plate Dia :
111mm
Description

double convoluted air bags Truck air spring W01-358-7025 W013587025

Cross references
Firestone
 W01-358-7025 W013587025 W01 358 7025

Specifications and Detail Technical Parameters

❶ Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 44 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

In Middle of Bottom Cover Plate

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet :1/4-18NPTF

❸ Cover Plate

Top Cover Plate Diameter (Width): 111 mm

Bottom Cover Plate Diameter (Width): 111 mm

❹Rubber Bellows

Rubber Bellows Natural Diameter : 146mm

Rubber Bellows MAX Diameter : 165 mm

Installation Space Diameter : 180 mm

Rubber Bellows Natural Height : 212 mm

Stroke:65mm-175mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

About Yitconton

We are the biggest manufacturer of air suspensions parts in China. Our products have been imported worldwide. We can provide you with quality products and good service.

Yiconton Advantage
The rubber is of high quality.
The plate is the steel,coated Zn,high capacity and anti-corrosion.
All air spring types can be used at a working temperature between -40°C and 70°
We also have our strict series quality control.
OEM Manufacturing welcome: Product
Sample order is available.
We will reply you for your inquiry in 24 hours.
After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

Product picture

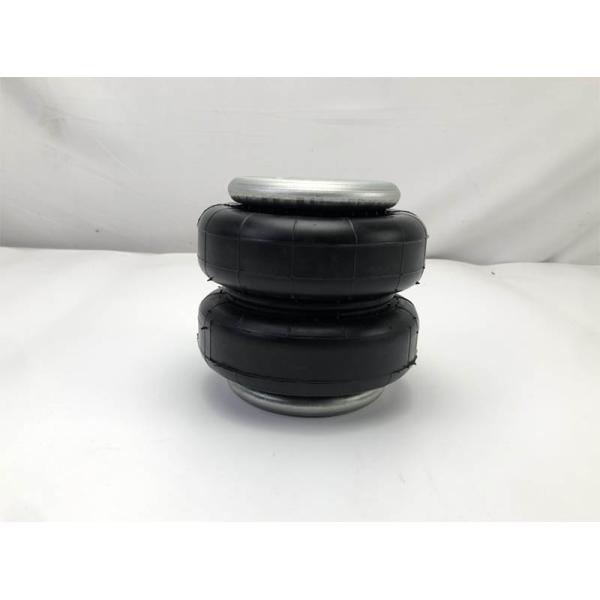

Double Convoluted Air Bags Truck Air Spring W01-358-7025 W013587025
