61560040068 Cylinder Head Assembly For WD615
61560040068 Cylinder Head Assembly For WD615
Specifications
Delivery Time :
5-15days
Condition :
New
After-sales Service :
Supportive
Quality :
Top
MOQ :
1 pcs
Price :
$1-$100
Status :
In Stock
Place of Origin :
CHINA
Model Number :
61560040068
Payment Terms :
Western Union,T/T,D/P
Purpose :
For Replace/Repair
Warranty :
2 years
Certification :
ISO CE
Packaging Details :
Neutral Package or As Customers' Request
Brand Name :
Weichai /WD615/618
Supply Ability :
1000pcs/day
Size :
OEM Standard
Description

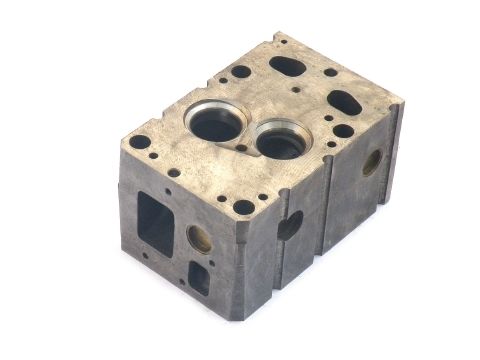

61560040068 Cylinder Head Assembly For WD615

Quick Details:

Ref. Part No: 61560040068
Part Name: Cylinder Head
Model: For SHACMAN,HOWO,SINOTRUCK
Engine Model: WD615

61560040068 Cylinder Head Assembly For WD615

Weichai WD615 Spare Parts List

Serial No. OEM No. Product Name
1 61560040040B Cylinder head assembly
2 61500050002 Outer valve spring
3 61500050001 Inner valve spring
4 612600050073 Intake valve
5 612600050025 Exhaust valve
6 612600040113 Valve guide
7 611560050041 Exhaust valve
8 61500050109 Spring cup
9 614050017 Spring seat (intake)
10 61500050032 Valve tappet
11 2130050065 Valve lock nut
12 61500040058 Cylinder head gasket
13 81500050070 Push rod assembly
14 61500050070 Push rod
15 614050049 Rocker arm assembly
16 614050048 Rocker arm
17 614050010 Valve setting screw
18 61500050096 Camshaft
19 614050053 Camshaft gear
20 61560050044 Intermediate gear shaft
21 61560010029 Camshaft bushing
22 612600010990 Camshaft bushing
23 61500010366 Crankcase
24 61560010095B Cylinder block
25 612600010747 Cylinder block
26 612600010806 Cylinder block
27 61500010344 Cylinder liner
28 VG1540010006 Cylinder liner
29 61560020029 Crankshaft
30 61500020071 Crankshaft
31 61500020012 Crankshaft
32 61200020024 Crankshaft
33 VG1500010046 Main bearing assembly
34 61560037034 Connecting rod upper bearing
35 61560037033 Connecting rod lower bearing
36 VG1500010125 Thrust washer
37 61500010100 Crankshaft rear oil seal
38 90003311416 Ball bearing
39 612600030011 Piston
40 612600030010 Piston
41 VG1560037011 Piston assembly
42 61560030013 Piston pin
43 VG1560030013 Piston pin
44 61500030077 Connecting rod bushing
45 VG1500030077 Connecting rod bushing
46 61500030009 Connecting rod
47 61500030008 Connecting rod body
48 61560030033 Connecting rod bearing
49 612600030020 Connecting rod bearing
50 VG1540030005 Piston ring assembly
51 61800150015 Oil pan
52 VG1800150015A Oil pan
53 AZ1500070021A Oil pump
54 AZ1500070020A Oil pump gear assembly
55 AZ1500070015A Oil pump housing
56 61500010334 Oil radiator
57 VG1500060151 Oil cooler core
58 612600010532 Oil dipstick
59 612600070311 Oil filter
60 612600010267 Oil-gas separator
61 61500060248 Water pump shaft
62 61500060234 Water pump
63 612600060389 Water pump assembly
64 VG1500060052 Water pump assembly
65 614060135 Thermostat assembly
66 612600060398 Fan hub
67 612600060539 Water seal assembly
68 612600082116 Injection pump assembly
69 61560080304 Injection pump
70 61560080282 Injection pump
71 612600087171 Injection pump
72 612600080255 Injector assembly
73 61560080178 Nozzle assembly
74 61560080305 Nozzle holder
75 612600080799 Fuel transfer pump
76 612600081334 Fuel filter
77 AZ1560080018 Fuel oil pipe
78 612600080585 Injection pipe
79 AZ1560130070 Air compressor
80 612600130408 Air compressor
81 61560110131 Air intake pipe assembly
82 VG1560110673 Front exhaust manifold
83 VG1560110855 Rear exhaust manifold
84 612600110855 Rear exhaust manifold
85 612600110673 Front exhaust manifold
86 61560118227 Turbocharger assembly
87 61560110227 Turbocharger
88 61500010012 Flywheel assembly
89 612600020220 Flywheel
90 61560020010 Vibration damper
91 612600060392 Belt tensioner pulley
92 612600060390 Belt pulley
93 612600020252 Belt pulley
94 612600090201 Belt
95 61500090065 Fan belt
96 612600090210 Starter motor
97 612600090147 Alternator
98 612600090353 Generator
99 AZ1500090132 Water temperature sensor
100 61500090051 Oil pressure warning sensor
101 614090067 Temperature transmitter
102 612640130730 Electromagnetic valve
103 614150004 Gasket
104 614070155 Seal ring
105 614060008 Seal pad
106 612600150106 Gasket
107 612600110162 Seal ring
108 612600080275 Seal washer
109 612600080201 Seal washer
110 61500010100 Crankshaft rear oil seal
111 81500130068 Seal ring
112 90003070092 Oil seal
113 61800070051 Filter
114 614080295A Filter assembly
115 61000070005 Filter
116 612600070311 Oil filter
117 612600081334 Fuel filter

About us

Guangzhou Zerbe Parts Chain Co.,Ltd is located Guangzhou City, China.we are auto parts wholesales since 2000, for JAC, HOWO, DFAC, FAW, SHACMAN...... engine, gearbox and complete vehicle parts.

Our services

  1. We are keeping very good relationship with many parts factories, so our price will be lower at about 5%-15% than other suppliers;
  2. We are supplying both Original parts and OEM parts, base on customer.
  3. Leading Time: within 3 working days for air order, and 20 days for sea order.
  4. Guarantee: If we send you wrong parts, damaged parts during shipment, we will replace you new ones by free.

Shipping photos

61560040068 Cylinder Head Assembly For WD615

61560040068 Cylinder Head Assembly For WD615

Customers

61560040068 Cylinder Head Assembly For WD615

61560040068 Cylinder Head Assembly For WD615

61560040068 Cylinder Head Assembly For WD615
