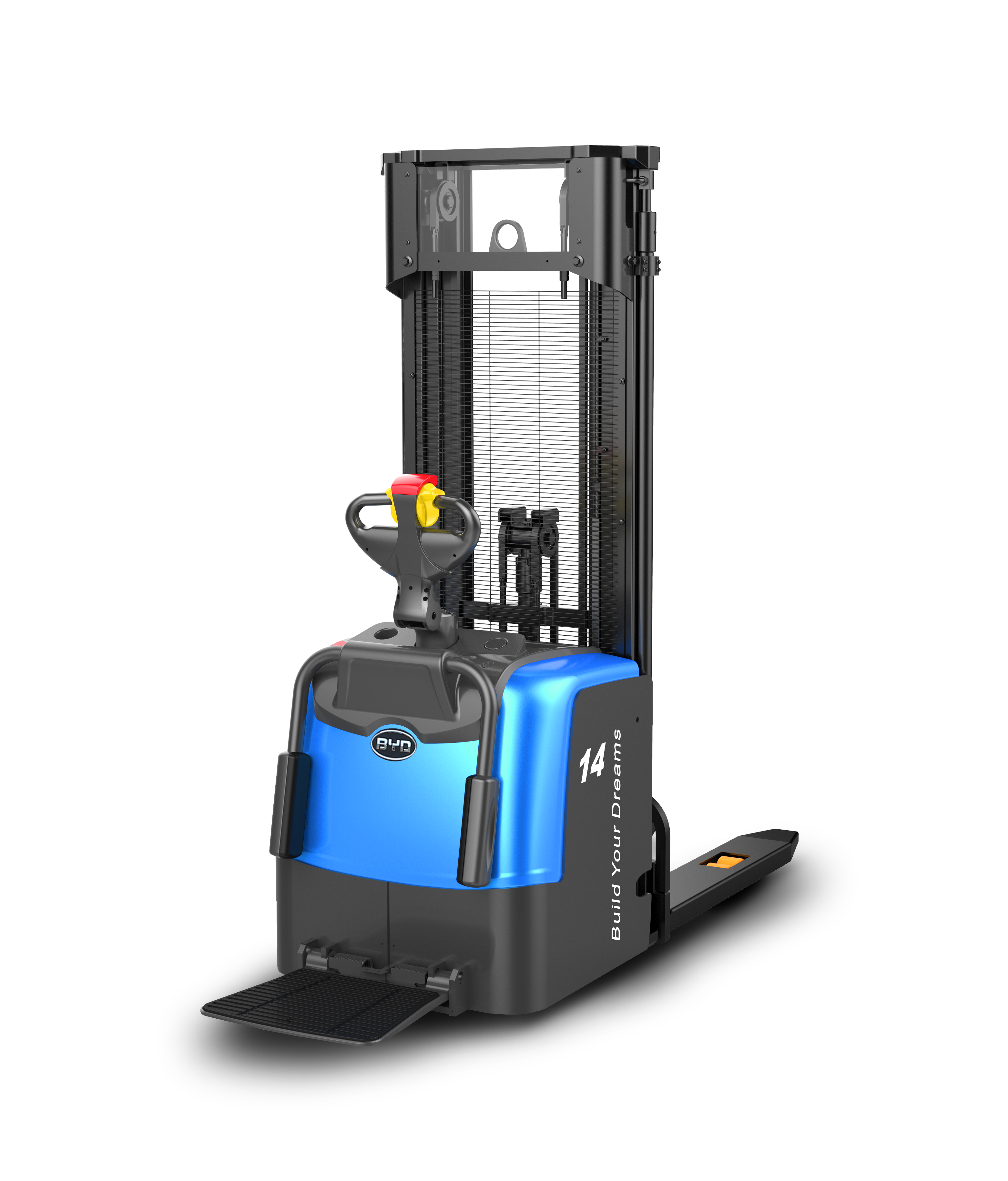

Top Sellers BYD Brand 1.4T -S14PS Pallet Stacker For Warehouse
Top Sellers BYD Brand 1.4T -S14PS Pallet Stacker For Warehouse
Top Sellers BYD Brand 1.4T -S14PS Pallet Stacker For Warehouse
Top Sellers BYD Brand 1.4T -S14PS Pallet Stacker For Warehouse
Top Sellers BYD Brand 1.4T -S14PS Pallet Stacker For Warehouse
Top Sellers BYD Brand 1.4T -S14PS Pallet Stacker For Warehouse
Top Sellers BYD Brand 1.4T -S14PS Pallet Stacker For Warehouse
Top Sellers BYD Brand 1.4T -S14PS Pallet Stacker For Warehouse
Top Sellers BYD Brand 1.4T -S14PS Pallet Stacker For Warehouse
Top Sellers BYD Brand 1.4T -S14PS Pallet Stacker For Warehouse
Top Sellers BYD Brand 1.4T -S14PS Pallet Stacker For Warehouse
Top Sellers BYD Brand 1.4T -S14PS Pallet Stacker For Warehouse
Specifications
Place of Origin :
Guangdong, China
Brand Name :
BYD
Model Number :
S14PS
Packaging Details :
Customizable outer packaging
Supply Ability :
500 Piece/Pieces per Month
Price :
$9,500.00/pieces 1-2 pieces
Type :
Drive-In Pallet Rack
Material :
Steel
Feature :
Esd Protection
Use :
Industrial
Weight Capacity :
1400
Width :
800
Height :
800
Wheelbase (mm) :
1260
Total Weight w. Battery(Kg) :
1180
Fork Lifting height (mm) :
3200
Fork Lowered height (mm) :
90
Turning Radius (mm) :
1490
Travel Speed, Loaded (km) :
7
Lift Speed, Loaded(mm/s) :
160
Descend speed, Loaded(mm/s) :
320
Battery Voltage (V) :
24
Battery Capacity (AH) :
210-270
Port :
Xinjiang, Ningbo, Shanghai,ChengDu,TianJin
Description
Details Images
Top Sellers BYD Brand 1.4T -S14PS Pallet Stacker For Warehouse
Standard Features
1-AC drive system 2-Energy regeneration brake 3-Electric disc brake
Specifications
S14PS
Rated Capacity (Kg)
1400
Wheelbase (mm)
1260
Total Weight w. Battery(Kg)
1180
Fork Lifting height (mm)
3200
Fork Lowered height (mm)
90
Overall Length(mm)
1970/2450
Overall Width(mm)
800
Turning Radius (mm)
1490
Travel Speed, Loaded (km)
7
Lift Speed, Loaded(mm/s)
160
Descend speed, Loaded(mm/s)
320
Battery Voltage (V)
24
Battery Capacity (AH)
210,270
Charging Current (A)
30/100
Charging Time (H)
1.2,2.5,3(100A)
Certification
CE
Manufacturing Technique
Manufacturing Technique
Top Sellers BYD Brand 1.4T -S14PS Pallet Stacker For Warehouse
Technical integration of batteries, BMS, and chargers
BYD has been working in the field of new energy for more than 20 years, mastering key core technologies of new energy, including battery grouping technology, BMS battery management system, precise signal measurement technology, accurate battery state estimation, battery balance control technology, charging technology, etc. A reasonable charging method can extend the lifespan of lithium batteries and improve charging efficiency, which not only depends on the design and materials of the power battery, but also on the charging control strategy related to the charger. BYD Forklift perfectly integrates battery and BMS battery management system, and achieves deep matching with charging control strategy, providing an integrated solution for new energy forklifts.

Battery

BYD has always adhered to the development concept of "technology is the king, innovation is the foundation". With its passion and persistence in technology, BYD's lithium-ion battery technology leads the global research and commercial application of lithium-ion batteries. In the field of environmentally friendly power batteries, high-quality, safe, and pollution-free BYD lithium batteries are expected to gradually replace petroleum and lead-acid batteries as the choice for forklift power batteries. BYD lithium-ion batteries have been successfully applied in various fields such as automobiles, buses, rail transit, urban logistics, construction logistics, energy storage power stations, etc. Their products are distributed in more than 50 countries and regions worldwide, in over 240 cities, achieving a global layout on six continents and becoming a leader in the field of new energy. The high-quality and performance of BYD lithium batteries have been tested and recognized by the market.
Top Sellers BYD Brand 1.4T -S14PS Pallet Stacker For Warehouse
High efficiency
BYD's lithium battery has high charging efficiency (over 98% charging efficiency) and can perform 100% DOD deep discharge, achieving fast charging.
Top Sellers BYD Brand 1.4T -S14PS Pallet Stacker For Warehouse

Zero pollution and emissions

No heavy metal pollution during the production process; No pollution or emissions during use; Comply with RoHs environmental regulations; No acid mist is generated during the charging process; After the life cycle, the battery can still be recycled and reused.
Top Sellers BYD Brand 1.4T -S14PS Pallet Stacker For Warehouse

High security

Capable of withstanding harsh conditions and undergoing experiments such as collisions, squeezing, punctures, fires, and high and low temperature impacts without igniting or exploding.
Top Sellers BYD Brand 1.4T -S14PS Pallet Stacker For Warehouse
Long-life
Under normal charging and discharging conditions, the capacity retention rate is greater than 75% after 4000 cycles of use, with a lifespan of over ten years. Electric forklifts do not require battery replacement during their lifespan.
Top Sellers BYD Brand 1.4T -S14PS Pallet Stacker For Warehouse

Maintenance-free

BYD batteries are fully enclosed and do not require manual maintenance or regular refilling of electrolyte or distilled water. Its core advantage lies in not only reducing manual maintenance, but also avoiding damage to the battery caused by improper maintenance.
Top Sellers BYD Brand 1.4T -S14PS Pallet Stacker For Warehouse

Adapt to high and low temperature working environments

In high and low temperature working environments between -40 ° C and 60 ° C, iron batteries have excellent performance, without the need to manually equip different electrolyte concentrations at different temperatures. Their applicability is far greater than that of lead-acid batteries.
Top Sellers BYD Brand 1.4T -S14PS Pallet Stacker For Warehouse

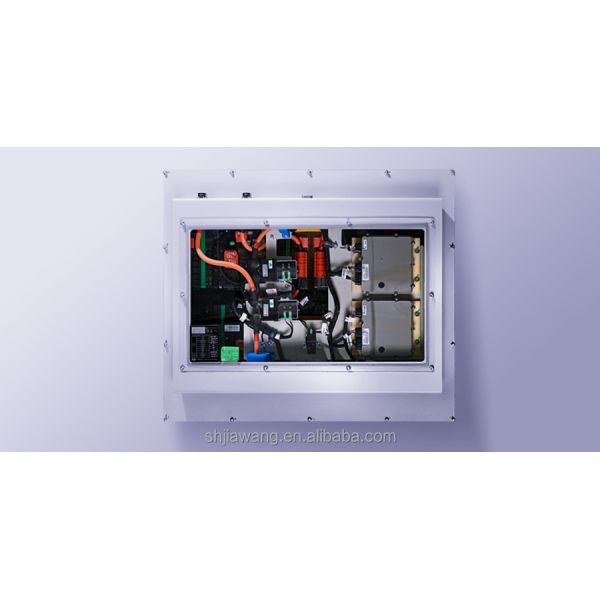

BMS power management
The battery is equipped with a BMS power management system independently developed by BYD with balancing function, which monitors the battery temperature, voltage, and charging and discharging current in real-time, ensuring that the battery is always in normal working condition and effectively extending its lifespan.
Top Sellers BYD Brand 1.4T -S14PS Pallet Stacker For Warehouse

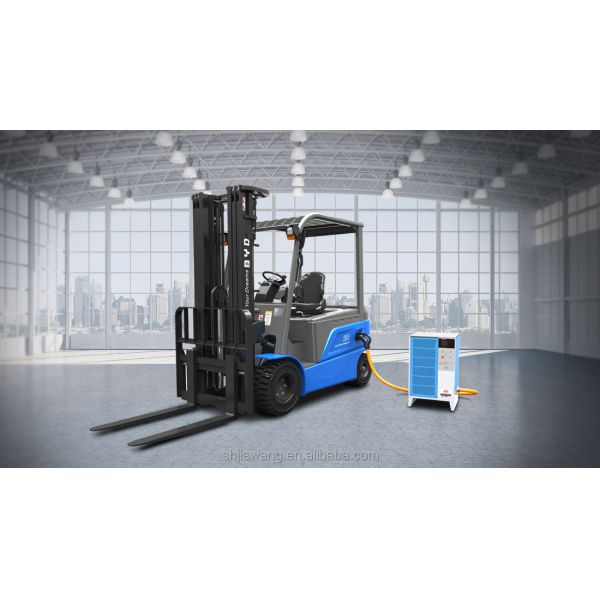

Charger
Equipped with a charging program strategy that perfectly matches the self-developed battery and BMS system, and an intelligent fast charger with multiple charging protection functions.
Top Sellers BYD Brand 1.4T -S14PS Pallet Stacker For Warehouse
Global operational footprint
Since its official launch in 2013, BYD Forklift has relied on the strong global operating network of the group, and after nearly a decade of ingenious operation, its footprint has spread throughout China. It has successfully entered multiple overseas markets such as the UK, Germany, France, Italy, Spain, the Netherlands, the United States, Canada, Brazil, Singapore, Japan, South Korea, Australia, and covers six continents worldwide.
