High Capacity Long Lifespan Home Energy Storage System Made in China
High Capacity Long Lifespan Home Energy Storage System Made in China
Specifications
Brand Name :
Qingtao Energy
Model Number :
QT-HoESS-5L
Place of Origin :
Kunshan, Jiangsu Province, China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
2000
Delivery Time :
5-8work days
Packaging Details :
492×200×774mm
Description
Home Energy Storage Systems Made in China

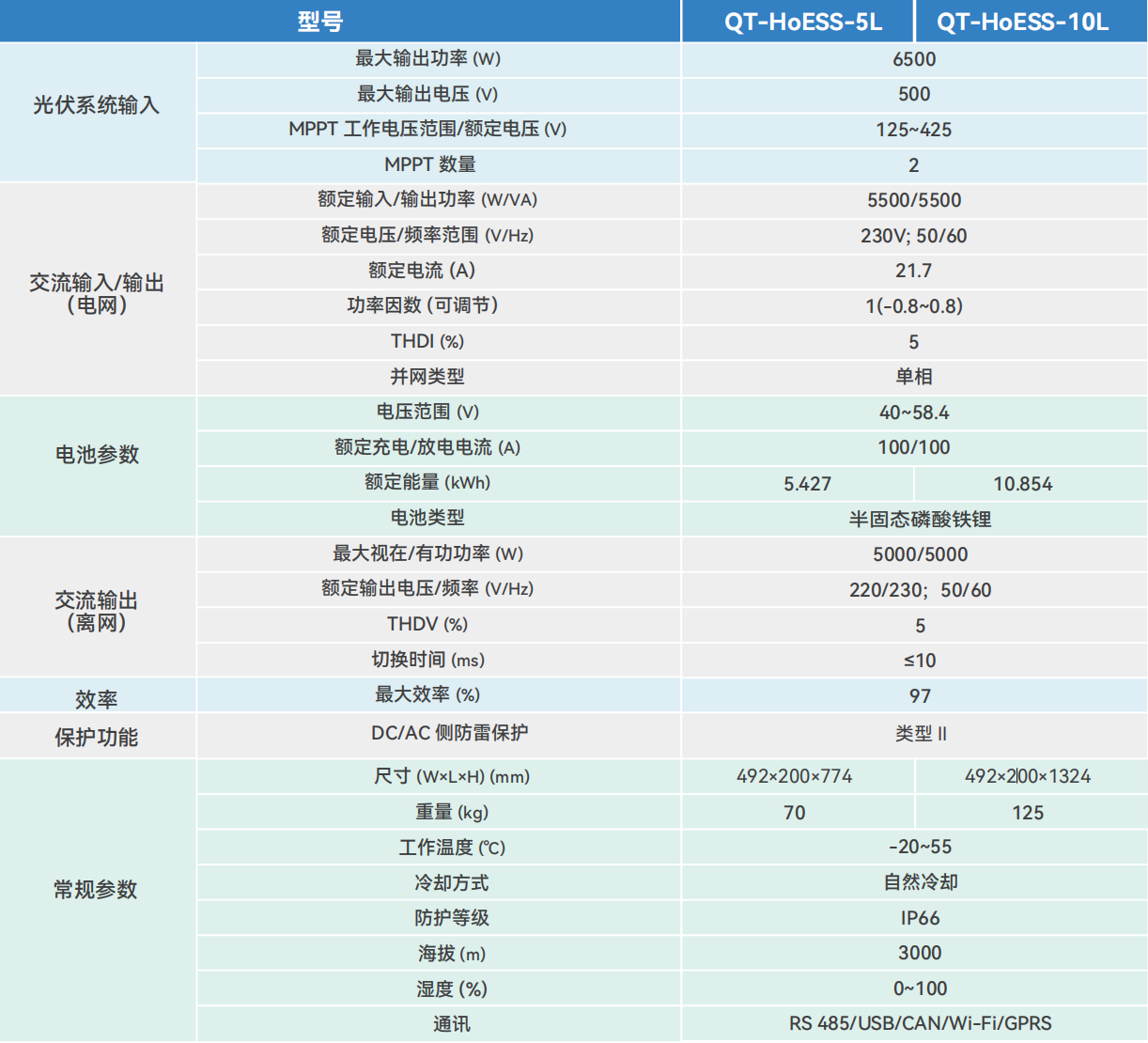

Model QT-HoESS-5L QT-HoESS-10L
PV System Input

Maximum Output Power (W) 6500 6500
Maximum Output Voltage (V) 500 500
MPPT Operating Voltage Range/Rated Voltage (V) 125~425 125~425
Number of MPPT 2 2
AC Input/Output (Grid)

Rated Input/Output Power (W/VA) 5500/5500 5500/5500
Rated Voltage/Frequency Range (V/Hz) 230V; 50/60 230V; 50/60
Rated Current (A) 21.7 21.7
Power Factor (Adjustable) 1(-0.8~0.8) 1(-0.8~0.8)
THDI (%) 5 5
Grid-connection Type Single-phase Single-phase
Battery Parameters

Voltage Range (V) 40~58.4 40~58.4
Rated Charging/Discharging Current (A) 100/100 100/100
Rated Energy (kWh) 5.427 10.854
Battery Type Semi-solid Lithium Iron Phosphate Semi-solid Lithium Iron Phosphate
AC Output (Off-grid)

Maximum Apparent/Active Power (W) 5000/5000 5000/5000
Rated Output Voltage/Frequency (V/Hz) 220/230; 50/60 220/230; 50/60
THDV (%) 5 5
Switching Time (ms) ≤10 ≤10
Efficiency

Maximum Efficiency (%) 97 97
Protection Functions

DC/AC Side Surge Protection Type Ⅱ
Dimensions, Weight and Operating Conditions

Dimensions (W×L×H) (mm) 492×200×774 492×200×1324
Weight (kg) 70 125
Operating Temperature (℃) -20~55 -20~55
Cooling Method Self-cooling Self-cooling
