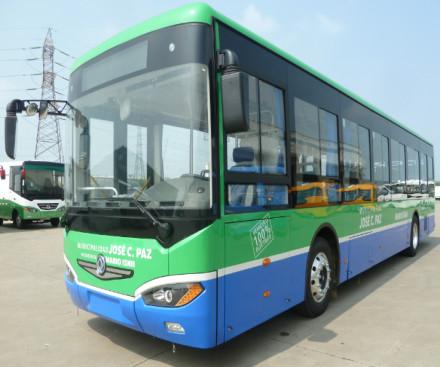

| Dongfeng 12m 48 seats Electric Power City Bus | ||||||
| items | technical specification | |||||
| bus | Dimensions(mm) | L×W×H(mm) | 12000×2550×3020/3150 | |||
| wheelbase(mm) | 6000 | |||||
| tread(mm) | 2060/1836 | |||||
| ovrerhang F/R(mm) | 2680/3320 | |||||
| weight | Curb weight(kg) | 12600/12900 | ||||
| G.V.W(kg) | 18000 | |||||
| rated passenger | 82/10-43 | |||||
| performance | Max. Speed(km/h) | 69 | ||||
| Max.gradeability | ≥15﹪ | |||||
| Max.brake distance(m) | (30 km/h)<10 | |||||
| Min. turning diameter(m) | 22 | |||||
| Approach/departure angle(0) | 7/7 | |||||
| drive range(km) | 280 | |||||
| electric parameter | low voltage device systems(V) | 24 | ||||
| high voltage device systems(V) | 595.2 | |||||
| total power(Kwh) | 238 | |||||
