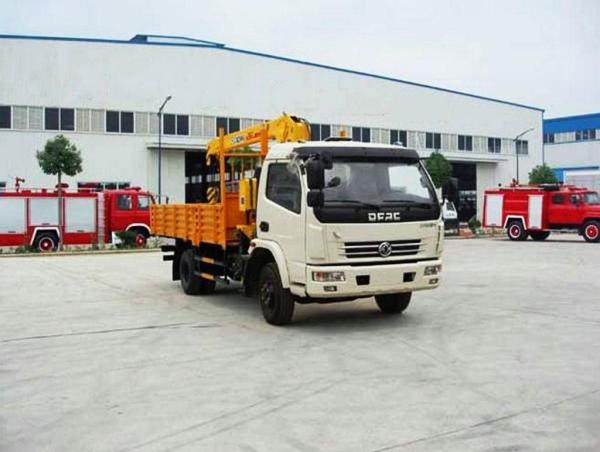

120HP 4T Dongfeng EQ1070JSQ Truck Crane
120HP 4T Dongfeng EQ1070JSQ Truck Crane
Specifications
Place of Origin :
Shiyan City,Hubei Province, China
Brand Name :
DONGFENG
Model Number :
EQ1070JSQ
Certification :
ISO9001 TS16949
Packaging Details :
Nude
Delivery Time :
30-35 Working Days
Payment Terms :
T/T
Supply Ability :
500 Units per month
MOQ :
1 Unit
Description

Dongfeng EQ1070JSQ Truck Crane

Vehicle model

EQ5070JSQ Truck Crane

Chassis model

EQ1070TJ9AD3

Weight

Parameters

Load weight

2950,2850kg

Overall dimension

7000x2320x3150mm

Vehicle curb weight

5350,5450kg

Box dimension

4350x2050x550mm

Max gross weight

8495kg

Wheelbase

3800mm

Engine

Parameters

Engine model

CY4102-E3C

Engine type

4 cylinders in line

Water cooling

Pressurized diesel engine

Engine Power

/Displacement

91kw/3856ml

Engine manufacturer

Dongfeng Chaoyang Diesel Engine Co., Ltd

Performance

Parameters

Top speed

95km/h

Wheel tread

Front

1835,1750mm

Max grade ability

30%

Rear

1640,1586mm

Fuel consumption

12L/100km

Suspension

Front

1180mm

Tire size

8.25-16

Rear

2020mm

Min turning doameter

≤16m

Driving angles

Approach

20

Cab

Flat head single cab

Departure

12

Crane（3.2T two sectionscrane）

Crane model

SQ3.2SK1Q

Max lifting weight

3200KG

Max lifting torque

6.72 T.M

Recommend power

14KW

Hydraulic system max flow rate

25L/MIN

Hydraulic system rated pressure

26MPA

Fuel tank volume

60L

Rotating angle

360°

Crane weight

1172KG

Installation space

850MM

Lifting height

6.8m

Crane working radius

5.5m
