Product Description

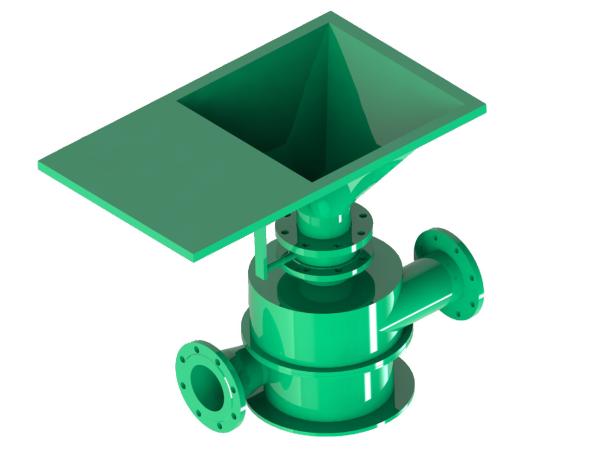

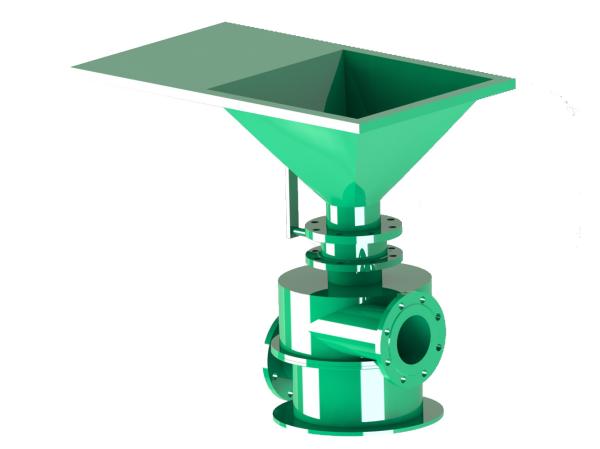

The TRSL Series Mud Mixing Hopper from TR SolidsControl is a highly efficient jet-type mud mixing device, specially designed to rapidly blend drilling fluids and accurately adjust fluid density and viscosity. Utilizing advanced Venturi tube technology combined with a jet nozzle and hopper, it simplifies drilling fluid mixing operations, enabling operators to quickly and uniformly incorporate weighting materials and chemicals, especially crucial in emergency situations such as well control operations. With a robust design, easy operation, and high mixing efficiency, TR mud hoppers are widely used in oil & gas drilling, horizontal directional drilling (HDD), tunneling, and microtunneling projects worldwide.

Attributes

• Model: TRSLH150 Series, TRSLH100
• Capacity: 60–240 m³/h
• Operating Pressure: 0.25–0.40 MPa
• Inlet Diameter: 100–150 mm
• Jet Nozzle Diameter: 30–50 mm
• Hopper Size: 600×600 mm or 750×750 mm
• Applications: Oil & gas drilling fluid mixing, HDD, tunneling, shield construction

Technical Specifications

Key Features

• Efficient Jet Mixing: Advanced Venturi tube technology combined with high-speed jet nozzles ensures rapid and thorough mixing.
• Easy Operation: Equipped with standard butterfly valve for simple operation and accurate control.
• Robust Construction: Heavy-duty build quality ensures durability and reliable operation in harsh drilling environments.
• Fast Feeding Capability: Strong suction power allows quick and uniform feeding of drilling fluid additives and weighting agents.
• Versatile Usage: Highly suitable for mixing various types of drilling mud, including weighted materials, bentonite, polymers, and chemical additives.
• Compact Design: Occupies minimal space, ideal for use in compact or mobile solids control systems.

Applications

• Oil & Gas Drilling: Quickly adjusts drilling mud density during drilling operations, enhancing drilling efficiency and safety.
• Horizontal Directional Drilling (HDD): Provides precise mud mixing to maintain stable drilling fluid properties.
• Tunneling and Microtunneling: Supports accurate slurry mixing, improving project reliability and efficiency.
• Shield Construction: Efficiently prepares and maintains high-quality drilling fluids required in shield tunneling operations.
• Emergency Well Control: Rapidly mixes large quantities of weighting agents during critical well control situations, such as blowouts.

Certifications

• API Certified: Fully compliant with API industry standards.
• ISO 9001 Certified: Adheres to international quality management system requirements.

FAQ

Q: What is the primary function of the TRSL mud hopper?
A: It quickly and uniformly mixes drilling fluid additives, adjusting density and viscosity as needed.

Q: How easy is the mud hopper to operate?
A: Very simple. It comes with a standard butterfly valve and intuitive controls for rapid deployment and ease of use.

Q: Can the mixing capacity and hopper size be customized?
A: Yes, TR offers various models and customization options to meet specific client requirements.

Q: What types of pumps are compatible with these mud hoppers?
A: Matched pumps include TR’s centrifugal pumps ranging from 15 kW to 55 kW.

Advantages & Services

• Competitive Pricing: Excellent performance-to-price ratio, providing cost-effective solutions.
• Fast Delivery: Large stock availability ensures quick shipping worldwide.
• Flexible Payment Terms: Multiple convenient payment options tailored to customer needs.
• Reliable After-Sales Service: Professional support team offering timely maintenance, spare parts, and technical guidance.
• Interchangeability: Fully compatible and replaceable with international brands.
