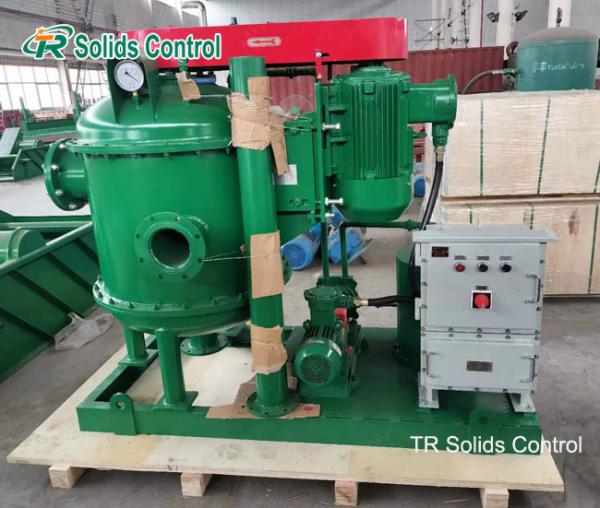

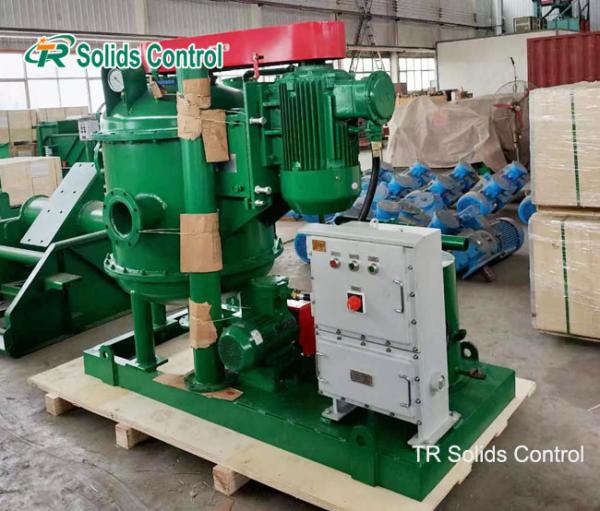

Vacuum Degasser Solids Control Equipment
Vacuum Degasser Solids Control Equipment
Vacuum Degasser Solids Control Equipment
Vacuum Degasser Solids Control Equipment
Specifications
Brand Name :
TR Solids Control
Model Number :
TRZCQ240
Certification :
API / ATEX / IEC / ISO9001
Place of Origin :
Xi'an,China
Price :
USD 275-45800 or Negotiable
Description

Mud vacuum degasser is a special product for gas treatment in drilling fluid. The unit is located downstream of the shale shaker, mud cleaner and mud gas separator, followed by the hydrocyclone and centrifuge. Used to remove small entraining bubbles left in the mud by the mud gas separator.

Mud Vacuum degasser is a device that uses a vacuum pump to create a negative pressure environment in the main body of the degasser, and presses the liquid to be treated (such as mud, drilling fluid, etc.) into the interior of the degasser through atmospheric pressure, and uses the impeller to break the bubbles in the liquid and separate the gas. Its working principle mainly includes the suction of the vacuum pump, the rupture and separation of the bubble and the discharge of the gas and other steps. Common types of degasser include vacuum degasser, jet degasser and Derrlck vacuum degasser.

Drilling Vacuum Degasser Technical Parameters

Model TRZCQ240 TRZCQ270 TRZCQ300 TRZCQ360
Body Diameter 700mm 800mm 900mm 1000mm
Handling Capacity 240 m³/h 270 m³/h 300 m³/h 360 m³/h
Vacuum Degree -0.030-0.045Mpa -0.030-0.050Mpa -0.030-0.045Mpa -0.030-0.045Mpa
Transmission Ratio 1.68 1.68 1.68 1.72
Degassing Efficiency ≥95% ≥95% ≥95% ≥95%
Motor Power 15kW 22kW 30kW 37Kw
Vacuum Pump Power 2.2kW 3kW 4kW 7.5kW
Impeller Speed 860r/min 870r/min 876r/min 880r/min
Dimension 1750*860*1500mm 2000*1000*1670mm 2250*1330*1650mm 2400*1500*1850mm
Weight 1100kg 1350kg 1650kg 1800kg

Mud Vacuum degasser advantages:

1. Water ring mud vacuum pump is suitable for the suction of flammable and explosive gas.
2. The gas-water separator in the drilling vacuum degasser is water-saving and environmentally friendly.
3. Scientific and reasonable structure design to achieve effective separation of gas and liquid.
4. The degassing efficiency of mud vacuum degasser is high, up to 95% or more.
5. Self-priming device can pump drilling fluid without centrifugal pump.
6. Belt drive, ensure long time trouble-free work.

We are a mud vacuum degasser supplier. TR is a Chinese mud vacuum degasser manufacturer integrating design, sales, production and service. If you need a degasser then start from TR, we can give you a free design scheme. The best vacuum degasser starts with TR.
