Oil-Based Mud Vertical Cutting Dryer | 95% Fluid Recovery, VFD Speed Control, Explosion-Proof for Drilling Waste

High-Performance Vertical Cutting Dryer for Drilling Waste Management – TR SolidsControl

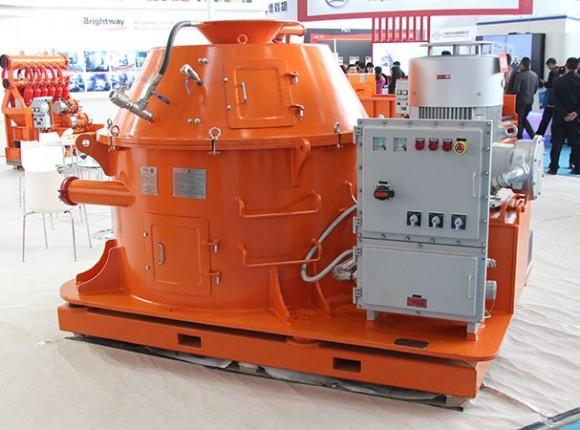

The vertical cutting dryer is an essential drilling waste management solution designed to recover valuable drilling fluids and reduce waste disposal costs. TR SolidsControl cutting dryers offer high-speed rotation, efficient liquid-solid separation, and durable performance, making them ideal for oil-based and synthetic-based mud drilling operations.

Attributes

• Model: TRCD930 Series
• Processing Capacity: 30-50 T/h
• Basket Max Diameter: 930mm
• Basket Gap: 0.25 – 0.5mm
• Rotary Speed: 900 r/min (VFD model: 0-900 r/min)
• Air Knife Pressure: 0.69 MPa
• Air Supply Volume: 1.8m³/min
• Fuel Tank Volume: 60L
• Main Motor Power: 55kW
• Oil Pump Power: 0.55kW
• Weight: 5900kg – 6000kg
• Application: Drilling waste management, drilling fluid recovery, oil-based and synthetic mud treatment

Technical Specifications

Key Features

• High-Speed Drying Efficiency – Recovers up to 95% of drilling fluids, reducing waste volume.
• Variable Speed Control (VFD Model) – Adjustable rotation speed (0-900 r/min) for optimal performance in different drilling conditions.
• Optimized Basket Design – 930mm stainless steel basket with 0.25-0.5mm gap ensures maximum separation efficiency.
• Integrated Air Knife System – Prevents screen blockages by applying 0.69 MPa high-pressure air.
• Heavy-Duty Construction – Made of wear-resistant materials, ensuring long service life.
• Low Maintenance & Energy Efficient – Equipped with a 55kW main motor and 0.55kW oil pump for stable and efficient operation.

Applications

• Oil & Gas Drilling Waste Management – Reduces environmental impact by separating drilling cuttings from fluids.
• Oil-Based Mud (OBM) & Synthetic-Based Mud (SBM) Treatment – Maximizes fluid recovery while minimizing waste disposal costs.

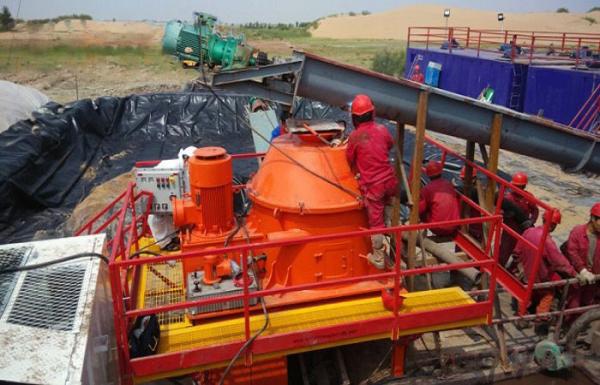

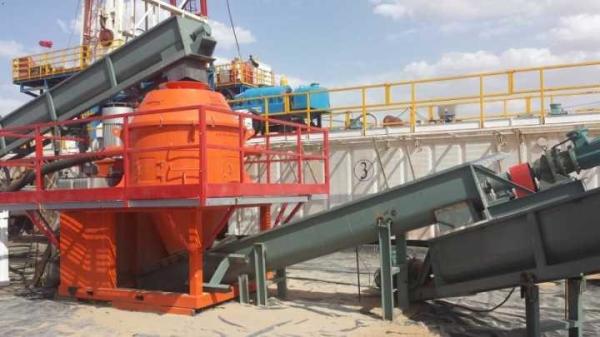

• Onshore & Offshore Drilling Operations – Suitable for high-performance solids control applications in land rigs and offshore platforms.

Certifications

• API & ISO 9001 Certified – Complies with international safety and quality standards.

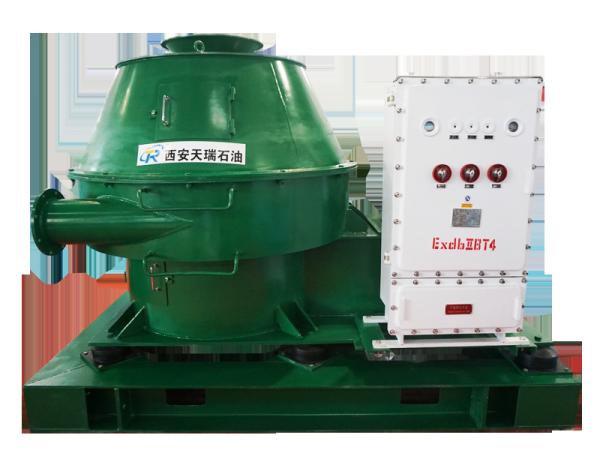

• Explosion-Proof Standards – Available for hazardous drilling environments.

FAQ

• What is the purpose of a vertical cutting dryer?
  It separates drilling fluids from drill cuttings, allowing fluid recovery and reducing drilling waste.

• What is the processing capacity of the TRCD930 series?
  It can handle 30-50 tons per hour, making it ideal for large-scale drilling operations.

• What type of drilling fluids does it work with?
  Designed for oil-based mud (OBM) and synthetic-based mud (SBM) recovery.

• How does the air knife system improve performance?
  The high-pressure air knife (0.69 MPa) prevents screen blockages, ensuring continuous operation.

• What maintenance does the vertical cutting dryer require?
  Regular basket inspection, lubrication of motors, and monitoring of air knife pressure to ensure optimal performance.

Advantages and Services

• Customizable Solutions – Available in fixed-speed and variable-frequency (VFD) models.
• After-Sales Support – Technical assistance, spare parts supply, and on-site service.
• Fast Delivery – Large inventory ensures quick shipment to drilling sites worldwide.
