Mud Gas Separator - Manufacturer from China TR
Mud Gas Separator - Manufacturer from China TR
Mud Gas Separator - Manufacturer from China TR
Mud Gas Separator - Manufacturer from China TR
Specifications
Brand Name :
TR Solids Control
Model Number :
TRZYQ800,TRZYQ1000,TRZYQ1200
Certification :
API Q1,ISO9001
Place of Origin :
Xi'an,China
MOQ :
1
Payment Terms :
L/C,T/T
Model  :
TRZYQ800
Capacity  :
180 m³/h
Inlet Pipe  :
DN100mm
Output Pipe  :
DN150mm
Gas Discharge Pipe  :
DN200mm
Weight  :
1750 kg
Description
Mud Gas Separator - Manufacturer from China TR

We are TR Solids Control, a professional manufacturer of solids control equipment based in Xi’an, China. With over decades of experience in the oil and gas drilling industry, we have exported our products to more than 40 countries worldwide, and our Mud Gas Separator is one of our most trusted safety solutions.

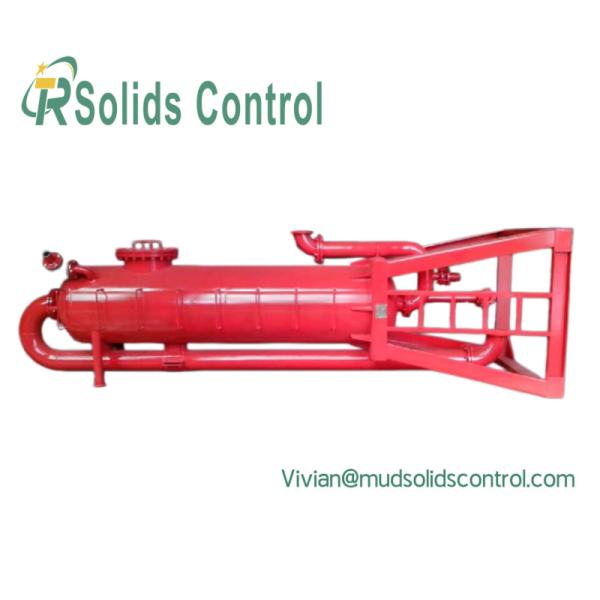

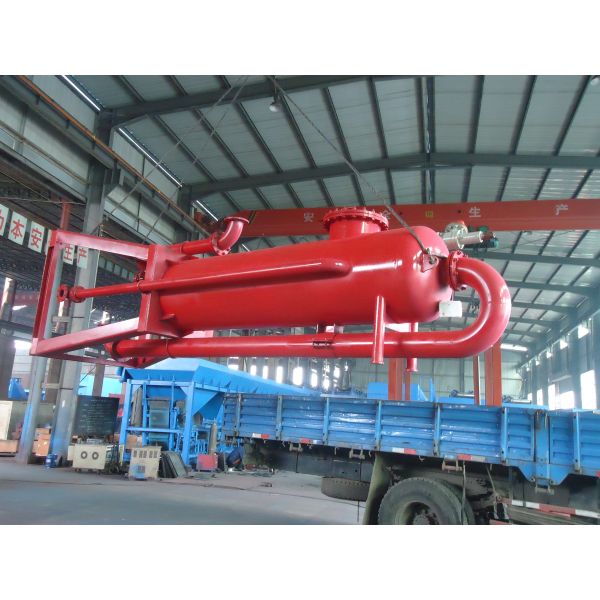

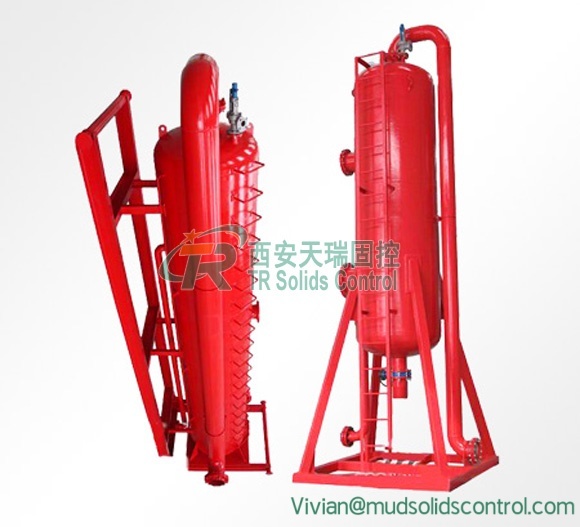

1. Product Overview: Mud Gas Separator


A Mud Gas Separator is a critical safety device in drilling operations, designed to remove harmful gases (such as methane, hydrogen sulfide) from gas-cut drilling mud before it enters the solids control system. This Mud Gas Separator effectively prevents blowouts, reduces fire risks, and protects downstream equipment like shale shakers and centrifuges.

Our Mud Gas Separator series offers three standard models, with capacities from 180 m³/h to 320 m³/h. Each Mud Gas Separator is built to withstand harsh oilfield conditions, ensuring stable performance for your solids control system.

2. Why Choose Our Mud Gas Separator?

  • Reliable Performance: Our Mud Gas Separator ensures efficient gas-liquid separation, even under high gas-cut conditions.
  • API Standard Compliance: Every Mud Gas Separator is manufactured according to industry standards for safety and durability.
  • Customizable Design: We can adjust the Mud Gas Separator’s size, connections, and accessories to match your specific drilling project.
  • Global Support: With our experience exporting to 40+ countries, we provide complete documentation, technical guidance, and after-sales service for your Mud Gas Separator.

Parameters of Our Vertical Cutting Dryer


Parameter TRZYQ800 TRZYQ1000 TRZYQ1200
Model TRZYQ800 TRZYQ1000 TRZYQ1200
Capacity 180 m³/h 240 m³/h 320 m³/h
Main Body Diameter 800 mm 1000 mm 1200 mm
Inlet Pipe DN100mm DN125mm DN125mm
Output Pipe DN150mm DN200mm DN250mm
Gas Discharge Pipe DN200mm DN200mm DN200mm
Weight 1750 kg 2235 kg 2600 kg
Dimensions (L×W×H) 1900 × 1900 × 5700 mm 2000 × 2000 × 5860 mm 2200 × 2200 × 6634 mm


Mud Gas Separator - Manufacturer from China TR

Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.


If you are looking for a high-quality Mud Gas Separator for your drilling operation, feel free to contact us for a quotation and detailed specifications.
