150m³/h Industrial Shear Pump For Mud Preparation Drilling Fluid
150m³/h Industrial Shear Pump For Mud Preparation Drilling Fluid
Specifications
Brand Name :
TR Solids Control
Model Number :
TRJQB
Certification :
APIQ1,IOS 9001
Place of Origin :
Xi'an,China
Flow Rate :
150m³/h
Motor :
55KW
Weight :
980kg
Lift :
45m
Description

Industrial Shear Pump For Mud Preparation Drilling Fluid


product description:

Shear pumps are crucial equipment in drilling fluid circulation systems for preparing drilling mud. They are primarily used to treat polymers and clay in the drilling fluid, improving its performance. The impeller structure of the shear pump crushes and disperses chemical particles, clay, and other solid phases in the fluid flow, resulting in broken-up and uniformly distributed solids. Mud shear pumps can reduce polymers by more than 15% and bentonite by more than 30%. They also reduce mud cake and fluid loss, improve gel strength, and more effectively protect the wellbore and prevent oil reservoir contamination. Mud shear pumps are often used in conjunction with jet funnels. Currently, mud shear mixing devices are widely used in subway tunnel boring machine (TBM) construction.


Drilling Shear Pump Parameter:

Model

Flow Rate

Lift

Motor

Weight

Dimension

TRJQB6545

150m³/h

45m

55kw

980kg

1050×1000×1360mm

TRJQB6535

100m³/h

35m

37kw

800kg

1050×1000×1230mm


Advantages of Mud Shear Pump:

  • TR solid control shear pump adopted comprehensive mechanical seal.
  • New and chicly designed lead equipment more durable for long service life.
  • Make the bentonite hydration easier also save bentonite over 30%.
  • Strong power for polymer hydration provide high property drilling mud.

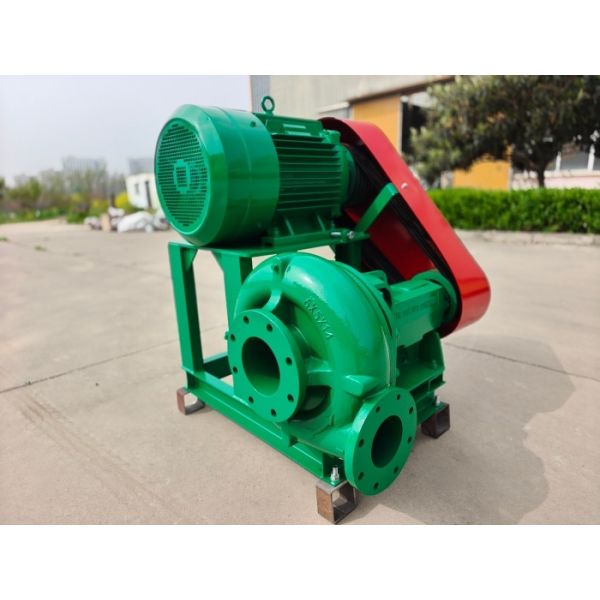

product photos:

150m³/h Industrial Shear Pump For Mud Preparation Drilling Fluid

150m³/h Industrial Shear Pump For Mud Preparation Drilling Fluid
