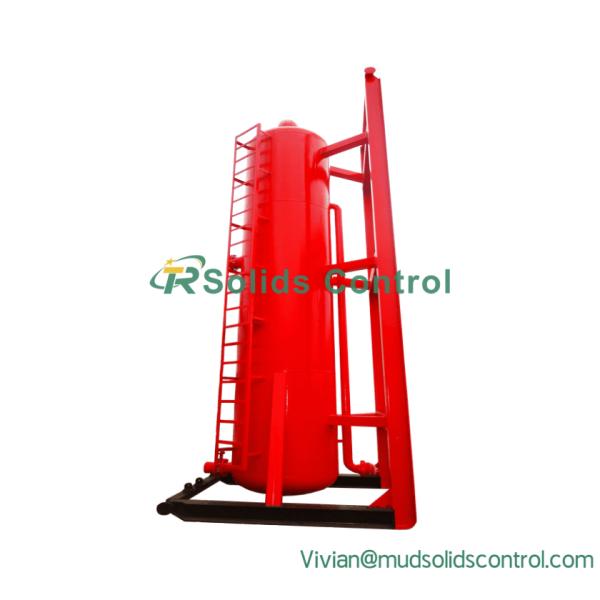

TRZYQ1000 Mud Gas Separator – Reliable Gas Control for Safe Drilling Operations

Product Description

The TRZYQ1000 Mud Gas Separator (commonly known as a Poor Boy Degasser) is a high-capacity safety device engineered to remove hazardous free gas—including toxic H₂S and flammable hydrocarbons—from drilling fluids. Installed downstream of the choke manifold, it plays a critical role in well control, restoring mud density and viscosity to safe operating levels and preventing kicks, blowouts, or other dangerous drilling incidents.

With a processing capacity of 240 m³/h and a 1,000 mm main body diameter, the TRZYQ1000 is built for both onshore and offshore applications, offering dependable gas separation performance under demanding drilling conditions. Fabricated from H₂S-resistant carbon steel and fully certified to ExdIIBt4 / IECEx / ATEX standards, it ensures safe operation in hazardous environments.

The system features a DN125 mm inlet, DN200 mm outlet, and DN200 mm gas discharge line, ensuring controlled venting and safe gas disposal to flare systems. With a weight of 2,235 kg and dimensions of 2000 × 2000 × 5860 mm, the TRZYQ1000 is skid-mounted for structural stability and ease of rig-up.

Features & Benefits

✔ High-Capacity Gas Removal – Effectively handles up to 240 m³/h, removing dangerous free gases such as methane, CO₂, and H₂S.

✔ Explosion-Proof Safety – Certified to ExdIIBt4 / IECEx / ATEX, ensuring reliable use in hazardous drilling zones.

✔ Durable Construction – Heavy-duty steel body with H₂S resistance for long service life.

✔ Fail-Safe Operation – Zero moving parts design minimizes maintenance and improves reliability.

✔ Customizable Layout – Flexible inlet/outlet piping options for vertical or horizontal installations.

✔ Controlled Venting – Gas discharge directed safely to flare systems via DN200 outlet.

✔ Rig-Friendly Design – Skid-mounted, compact, and easy to install across different rig configurations.

Technical Specifications

Technical Advantages

✔ Optimized Gas Separation Efficiency – Removes over 90% of free gas, maintaining safe mud properties for drilling operations.

✔ Pressure & Flow Versatility – Capable of adapting to variable gas loads and flow conditions.

✔ Corrosion-Resistant Materials – Built with high-strength, coated steel to withstand H₂S and abrasive drilling environments.

✔ Enhanced Safety Performance – Provides critical first-line defense against well-control incidents.

✔ Low Maintenance Design – Simple structure with no moving parts ensures minimal downtime.

✔ International Standard Compliance – Meets API RP 53, ISO 9001, and ATEX requirements for global deployment.

Applications

✔ Oil & Gas Drilling – Primary safety barrier for free gas removal in well control systems.

✔ Horizontal Directional Drilling (HDD) – Protects operations from hazardous gas intrusion during trenchless drilling.

✔ Mining & Geotechnical Drilling – Ensures safe gas separation in mineral and ore extraction projects.

✔ Tunneling & Civil Projects – Maintains safe mud systems in piling, tunneling, and underground construction.

✔ Offshore & Onshore Rigs – Adaptable, explosion-proof design suited for diverse drilling environments.

Advantages & Services

✔ Tailored Configurations – Custom options available for material selection, inlet/outlet size, and system integration.

✔ Proven in the Field – Extensively deployed in drilling projects worldwide, with consistent safety performance.

✔ Reduced Operational Risks – Minimizes risk of kicks, blowouts, and environmental hazards.

✔ Long-Term Value – High durability and low maintenance ensure cost-effective operation.

Why Construction Professionals Choose TRZYQ1000 Mud Gas Separator?

✔ Critical Well Control Protection – Prevents kicks and blowouts by removing free gas effectively.

✔ High-Capacity & Durable – Built for 240 m³/h operations with H₂S-resistant steel.

✔ Certified Safety – Explosion-proof design compliant with Ex / IECEx / ATEX standards.

✔ Zero Moving Parts – Reduced downtime and lower maintenance requirements.

✔ Trusted Across Industries – Proven in oilfield, HDD, tunneling, and mining applications.

✔ Efficient & Adaptable – Compact, skid-mounted design for rapid deployment and reliable operation.
