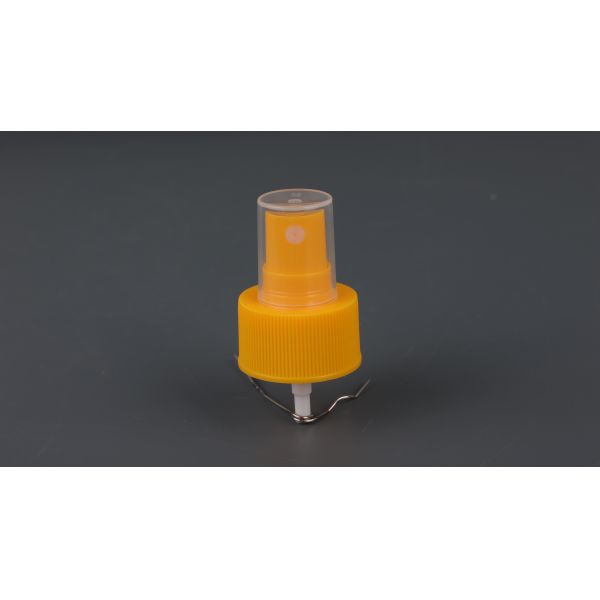

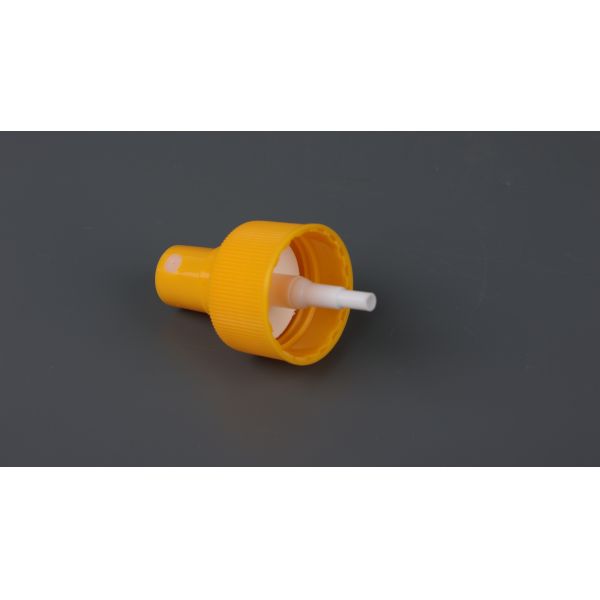

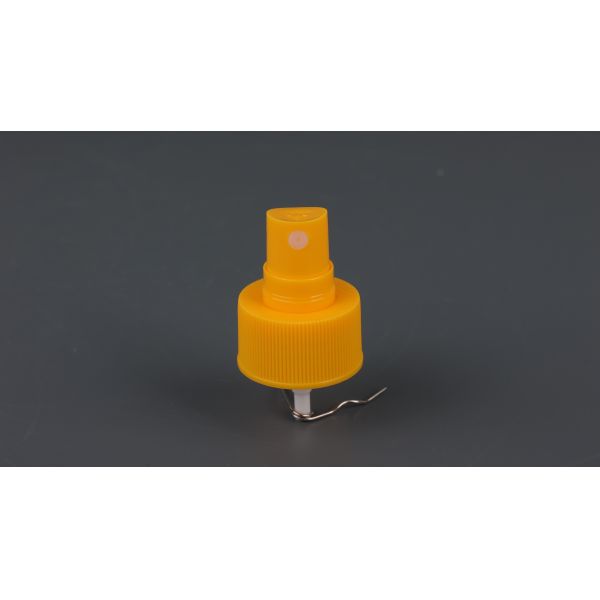

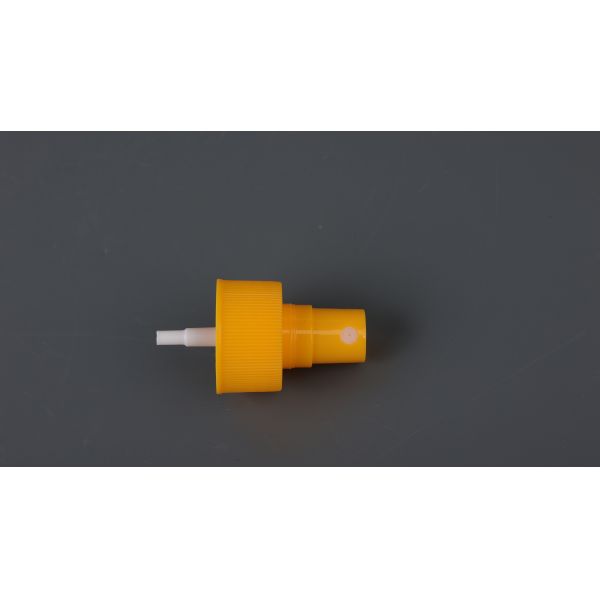

Eco 20/410 All-Plastic Fine Mist Sprayer: Sustainable Precision for Modern Formulations
Advanced Polymer Engineering for Next-Generation Dispensing
The Eco 20/410 All-Plastic Fine Mist Sprayer represents a breakthrough in eco-conscious dispensing technology, engineered for brands that prioritize both environmental responsibility and uncompromising performance. This system eliminates traditional metal components entirely, utilizing advanced polymer science to create a 100% plastic mechanism that maintains laboratory-grade precision while achieving unprecedented sustainability credentials.
Technical Innovation: The Science of Metal-Free Precision
Advanced Polymer Atomization System: The core innovation utilizes a proprietary co-polymer spring mechanism that replaces traditional stainless steel with a shape-memory polymer composite. This material provides consistent elastic recovery through 20,000+ cycles while maintaining chemical neutrality.
Sustainable Material Engineering
- Primary Housing: 100% Post-Consumer Recycled (PCR) polypropylene with UV stabilizers
- Spring Mechanism: Proprietary thermoplastic elastomer with shape-memory properties
- Nozzle Assembly: Bio-based polymer composite with enhanced wear resistance
- Valve System: PTFE-encapsulated polymer check valves ensuring zero-drip performance
- Sealing Technology: Multi-layer silicone-free elastomer matrix
- Fluid Pathway: Hydrophobically treated interior surfaces preventing residue accumulation
Technical Specifications: Eco-Performance Metrics
| Performance Dimension |
Technical Specification |
Sustainability Advantage |
| Dosage Precision |
0.1cc ± 0.04ml per actuation |
Minimizes product waste through pharmaceutical-grade accuracy |
| Droplet Distribution |
90% between 50-100 microns (narrow distribution) |
Optimal absorption efficiency reducing reapplication frequency |
| Spray Pattern |
70° conical distribution with 97% uniformity |
Even coverage minimizing overspray and environmental dispersion |
| Chemical Compatibility |
Full pH 2-12 range; 100% metal-free construction |
Prevents catalytic degradation of sensitive natural formulations |
| Temperature Resilience |
-15°C to 65°C operational range |
Maintains performance in diverse climate conditions |
| Cycle Endurance |
20,000+ cycles with <2.5% performance variance |
Extended lifespan reducing replacement frequency |
| Polymer Composition |
100% plastic, 85% PCR content available |
Maximum recyclability and circular economy compatibility |
| Carbon Footprint |
65% reduction vs. conventional metal-spring sprayers |
Significant environmental impact reduction |
| Thread Standard |
20/410 (optimized for sustainable packaging) |
Ideal for eco-conscious 100-250ml formats |
Advanced Application Systems
Natural & Organic Skincare Integration:
- Botanical Facial Mists: Gentle delivery of plant extracts and essential oil blends
- Active Serum Systems: Metal-free application preventing oxidation of sensitive actives
- Mineral Sunscreen Delivery: Consistent dispersion of physical UV blockers
- Sensitive Skin Formulations: Hypoallergenic system for reactive skin types
Sustainable Household Solutions:
- Plant-Based Cleaners: Effective dispersion of enzymatic and botanical cleaning agents
- Natural Disinfectants: Controlled application of alcohol-free sanitizing solutions
- Eco Fabric Care: Even misting of natural fabric refreshers and stain treatments
- Green Surface Care: Sustainable application of plant-derived polishing solutions
Sustainability Engineering Features
Circular Design Architecture:
- Mono-Material Construction: 100% polypropylene for simplified recycling stream integration
- Tool-Free Disassembly: Easy separation of components for end-of-life processing
- Material Identification: Universal recycling codes and material identification markers
- Design for Recycling: Optimized geometry for industrial recycling system compatibility
Global Eco-Certifications
- Cradle to Cradle Certified Material Health Certification
- EU Ecolabel Compliance and Certification
- FDA 21 CFR 177 Food-Contact Material Compliance
- ISO 14001 Environmental Management System
- Global Organic Textile Standard (GOTS) Compatibility
- COSMOS Natural and Organic Certification Compatibility
Performance Validation Data
Independent environmental and performance testing demonstrates:
- 65% reduction in carbon footprint versus conventional sprayers
- 40% reduction in product waste through precision dosing
- 99.9% recyclability in standard polypropylene recycling streams
- 50% longer service life compared to conventional eco-alternatives
- 85% consumer preference in sustainability-focused market testing
- 30% improvement in brand perception for eco-conscious positioning
- 95% material recovery in industrial recycling systems
Contact our sustainable solutions engineering team to request eco-certified samples, discuss your specific sustainability requirements, or schedule a comprehensive environmental impact assessment.
