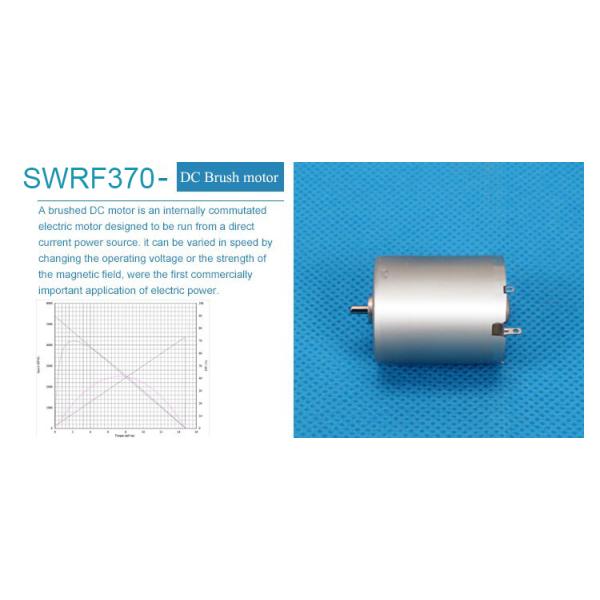

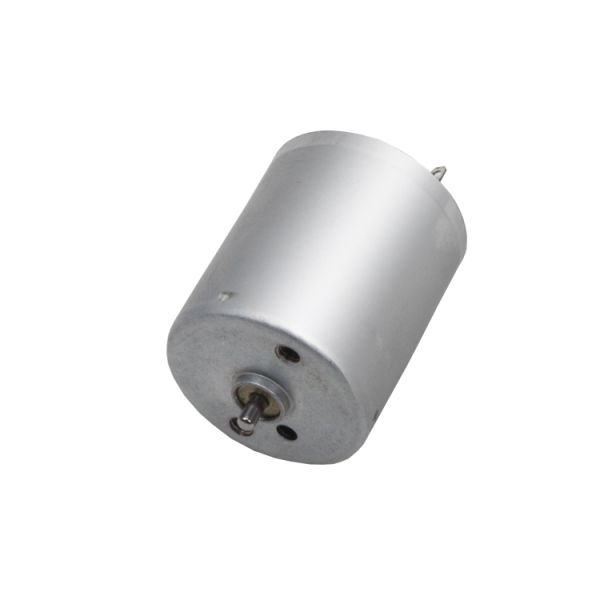

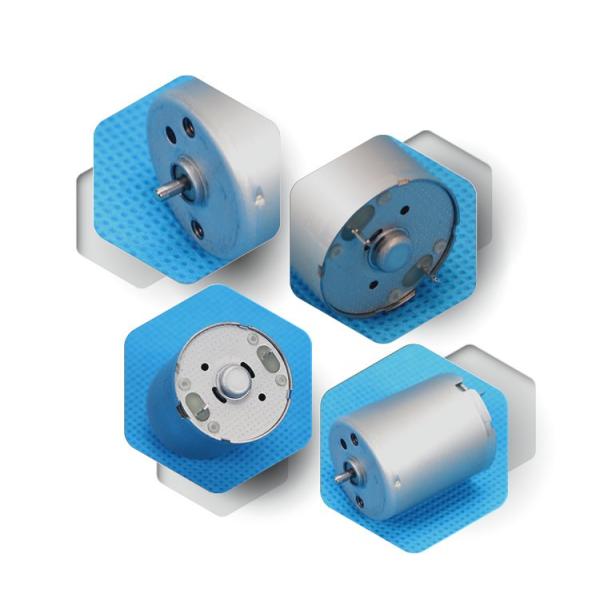

Small 12mm low rpm 1 2 hp 12v dc motor small brush motor for medical equipment
Small 12mm low rpm 1 2 hp 12v dc motor small brush motor for medical equipment
Small 12mm low rpm 1 2 hp 12v dc motor small brush motor for medical equipment
Small 12mm low rpm 1 2 hp 12v dc motor small brush motor for medical equipment
Small 12mm low rpm 1 2 hp 12v dc motor small brush motor for medical equipment
Small 12mm low rpm 1 2 hp 12v dc motor small brush motor for medical equipment
Small 12mm low rpm 1 2 hp 12v dc motor small brush motor for medical equipment
Small 12mm low rpm 1 2 hp 12v dc motor small brush motor for medical equipment
Specifications
Brand Name :
SOVOFLO
Model Number :
SWRF-370CA
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50000 Piece/per Day
Delivery Time :
5-15 working days
Packaging Details :
Inside: foam, plastic bag Outside: carton
Type :
Micro Motor
Torque :
186 gcm
Construction :
Permanent Magnet
Commutation :
Brush
Speed :
6000RPM
Continuous Current :
0.16A
Output power :
1.18
Voltage :
12V
Efficiency :
65%
Material :
Electro-Galvanized Steel,plastics
Application :
Inhalation therapy nebulizer/beauty
Life test :
long life time(≥50000cycles)
Max torque :
55
Description


MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
TORQUE
Rated
voltage		 Voltage
range		 SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF
rpm A rpm A g.cm W % g.cm
WRF-370CA-22170 6 3~9 5500 0.05 4760 0.3 21.8 1.06 71.5 163.5
WRF-370CA-15370 12 9~15 5600 0.03 4800 0.16 24 1.18 64.8 186
WRF-370CA-08700 24 18~26 5500 0.03 4670 0.09 16.4 0.78 67 106.8
WRF-370CA-21170 12 9~15 11630 0.09 10000 0.43 35.4 3.63 70.1 253.3


APPLICATION
Inhalation therapy nebulizer/beauty, etc
