Motorized four-wheeled three-wheeled garbage truck
Motorized four-wheeled three-wheeled garbage truck
Motorized four-wheeled three-wheeled garbage truck
Motorized four-wheeled three-wheeled garbage truck
Motorized four-wheeled three-wheeled garbage truck
Motorized four-wheeled three-wheeled garbage truck
Motorized four-wheeled three-wheeled garbage truck
Motorized four-wheeled three-wheeled garbage truck
Specifications
Brand Name :
Dishen
Model Number :
DS1500DZH-80
Certification :
CCC
Place of Origin :
Sichuan, China
MOQ :
5sets
Price :
5000-20000RMB
Payment Terms :
T/T,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
5000sets/month
Delivery Time :
5-8works
Packaging Details :
Wooden Box
Product name :
Motorized four-wheeled three-wheeled garbage truck
clour :
Red,yellow
Maximum Speed :
30-50Km/h
Driving Mileage :
≥90km
Voltage :
60V
Wheelbase (mm) :
2000,2000
Quality :
100% Tested
Brake System :
Front disc+Rear drum
Leaf spring :
Steel Plate
Motor power :
48V/4KW
Description

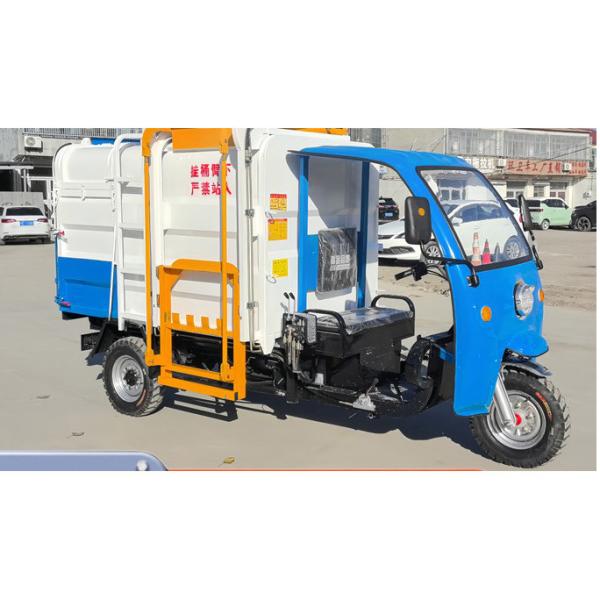

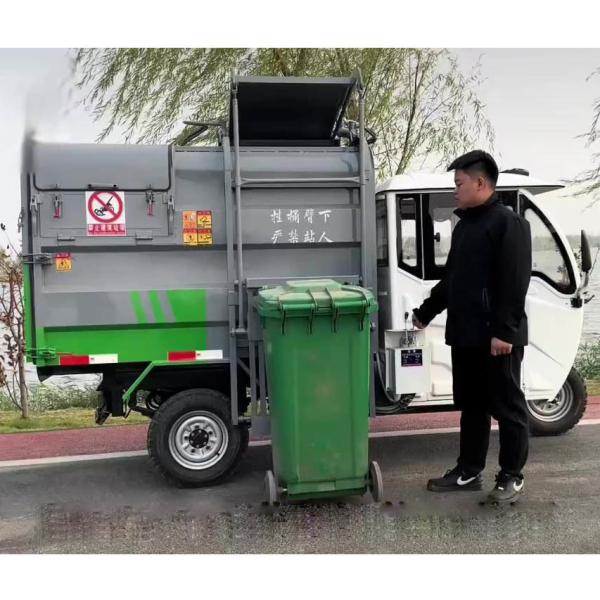

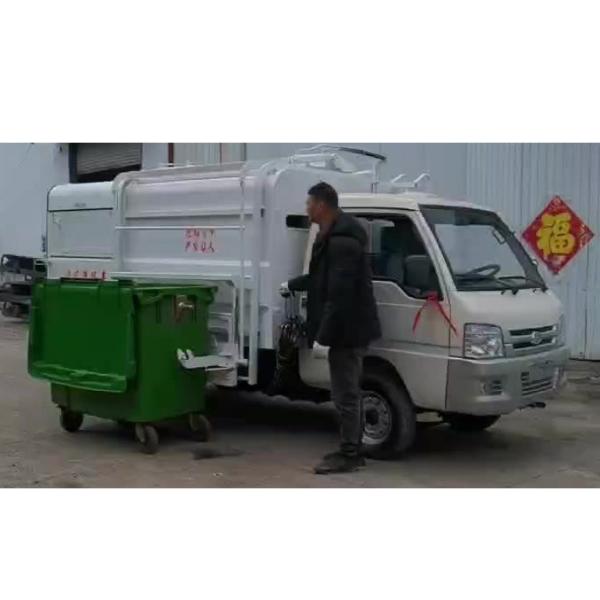

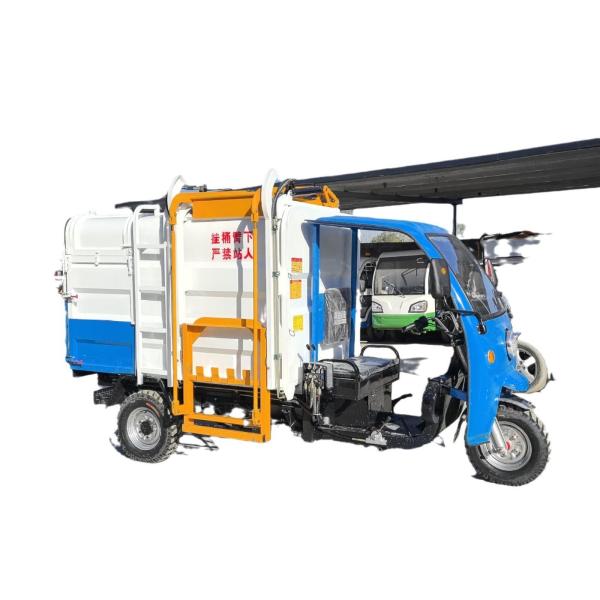

Product Name: Motorized four-wheeled three-wheeled garbage truck

The Motorized Four-Wheeled Garbage Truck is a hybrid utility vehicle engineered for robust waste management in urban settings. Merging three-wheeled maneuverability with a four-wheeled chassis, it ensures exceptional stability and agility in crowded streets or narrow alleys.

Powered by a rechargeable lithium-ion battery (non-solar), it operates emission-free, supporting sustainable urban cleanup. The truck features a 1-2 ton cargo capacity with reinforced steel bins, leak-resistant liners, and automated lifting mechanisms for efficient bin emptying. Dual rear wheels enhance load balance, while hydraulic brakes and a compact design enable safe, responsive handling.

Exclusively cargo-focused, it adheres to non-passenger safety standards. Optional add-ons include GPS tracking, IoT waste-level sensors, and anti-odor systems. Ideal for municipalities, commercial hubs, or industrial parks, this truck reduces manual labor, lowers emissions, and elevates operational efficiency in waste collection.

Specification

Power

501 - 800W

Voltage

> 60V

Maximum Speed

30-50Km/h

Charge Time(h)

7-9h

Grade Ability

20-25°

Driving Mileage

70-90km

Use For

Passenger

Body Type

Open

Certification

CCC

Place of Origin

Sichuan, China

Model Name
 DS1500D
Dimensions (mm)
2900,3090*1095,1145*1325
Wheelbase (mm)
 2000,2000
Wheel Track (mm)
 887,931
Curb weight(kg)
240
Minumum ground clearance(mm)
≥150
Minimum turning radius(m)
≤4
Rated Loading capacity (kg)
300
500
Max speed(km/h)
25
40
Maximum Climbing Slope (%)
≤25
battery
72V45AH
72V80AH
Economic speed range (km)
50-60
70-80
Charging time (h)
6～8h
