Latest Arc-Capable P10 Outdoor LED Display with High Contrast & 90° Corner Splicing, IP65 Rated
Latest Arc-Capable P10 Outdoor LED Display with High Contrast & 90° Corner Splicing, IP65 Rated
Latest Arc-Capable P10 Outdoor LED Display with High Contrast & 90° Corner Splicing, IP65 Rated
Latest Arc-Capable P10 Outdoor LED Display with High Contrast & 90° Corner Splicing, IP65 Rated
Specifications
Brand Name :
Charming
Model Number :
P10
Certification :
CE,ROHS,LVD,EMC,CB,BIS,UL
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T,Paypal,Cash
Supply Ability :
10000 PCS per week
Delivery Time :
7 Working Days after Payment
Packaging Details :
Carton Case,Wooden Case,Flight Case
Type Number :
P10
Cabinet Size :
960*960MM
IP Grade :
IP65
Screen Brightness :
＞6500CD/㎡
Refresh Frequency :
≥3840Hz
Cabinet Weight :
25KG
Pixel Pitch :
10MM
Pixel Density :
10000Dot/㎡
GreyScale :
14bit
Life Span :
100,000 Hours
LED Size :
SMD2727
scan Type :
1/2Scan
Operating humidity :
10%~95%RH
Operation temperature :
-20~50℃
Description

Latest Arc-Capable P10 Outdoor LED Display with High Contrast & 90° Corner Splicing, IP65 Rated

Specification

Type Number
 P10
Dimension(MM) 960*960*77MM
Max.Power(W)
 650W/m²
Ave.power consumption 220W/m²

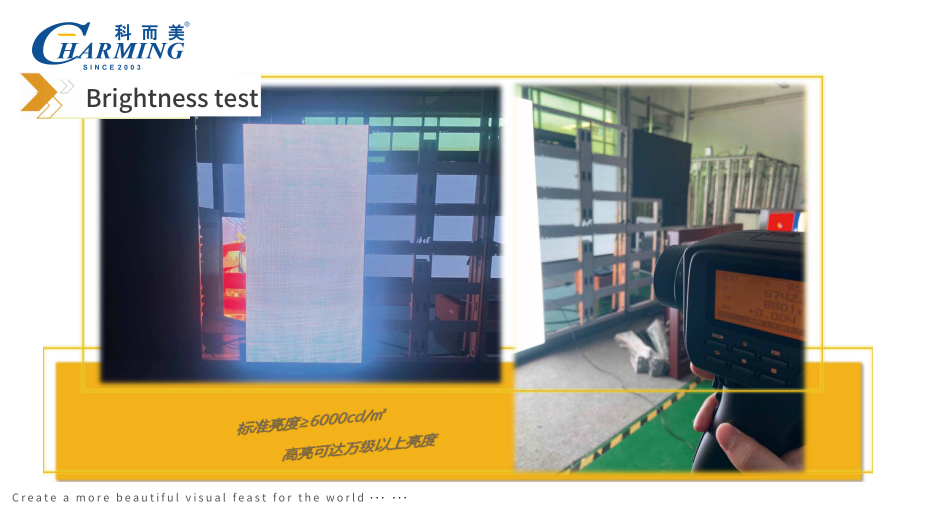

Brightness(CD/m)
≥6000 CD/㎡
LED Standard
 SMD2727
Viewing Angle
140°

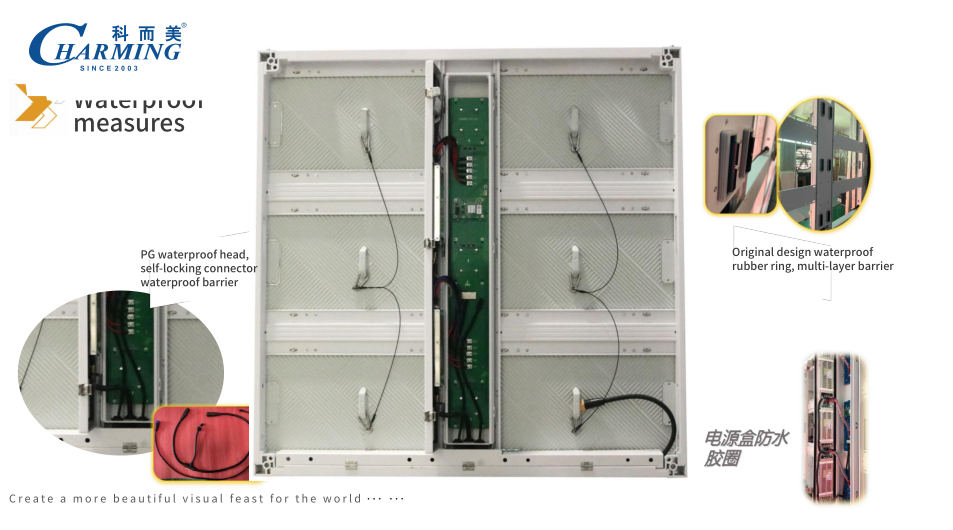

Protection Level
 IP65
Refresh Rate(Hz)
≥3840Hz
Pixel Pitch(MM)
 10MM
Scan Mode
1/4Scan
Pixel Density(Dot/m)
10000Dot/㎡
Grey Level
14Bit
Working Temperature
-20~50°C
Life Span
100000 Hours
Working Voltage
AC 110-240 50-60HZ

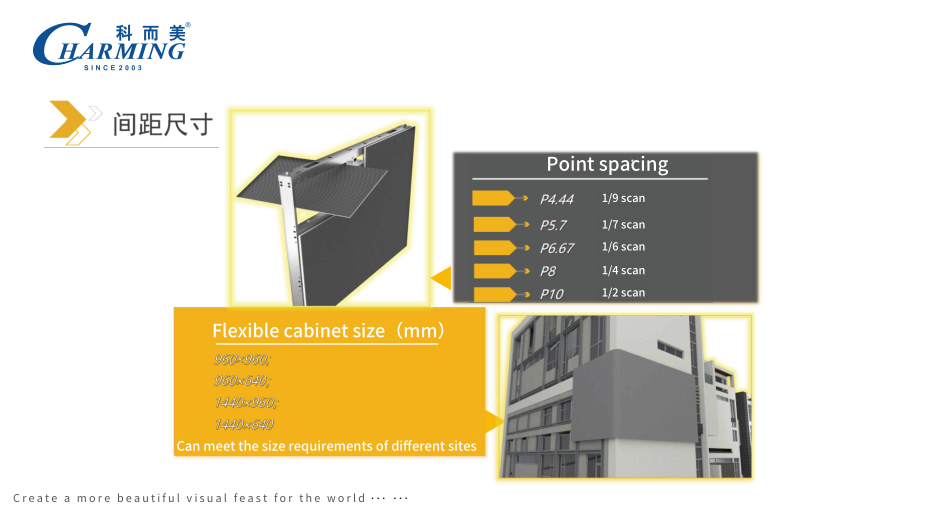

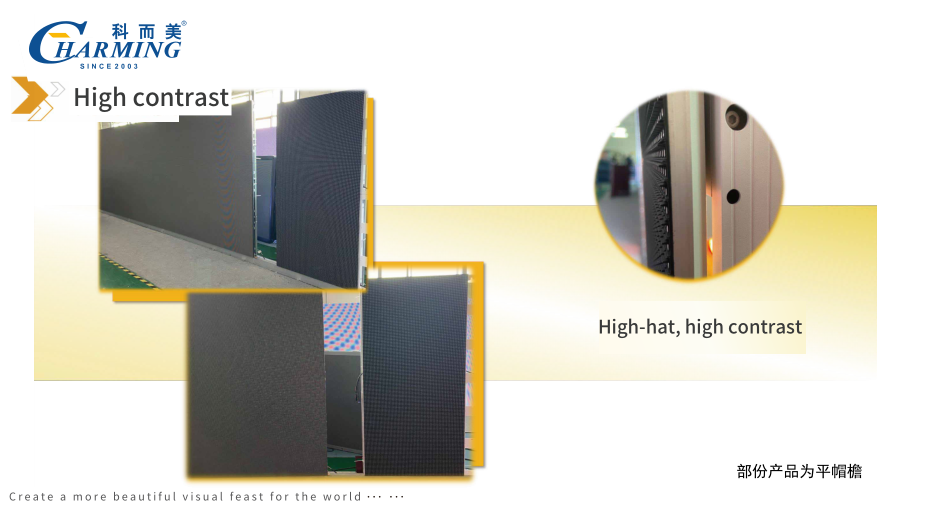

Production Details

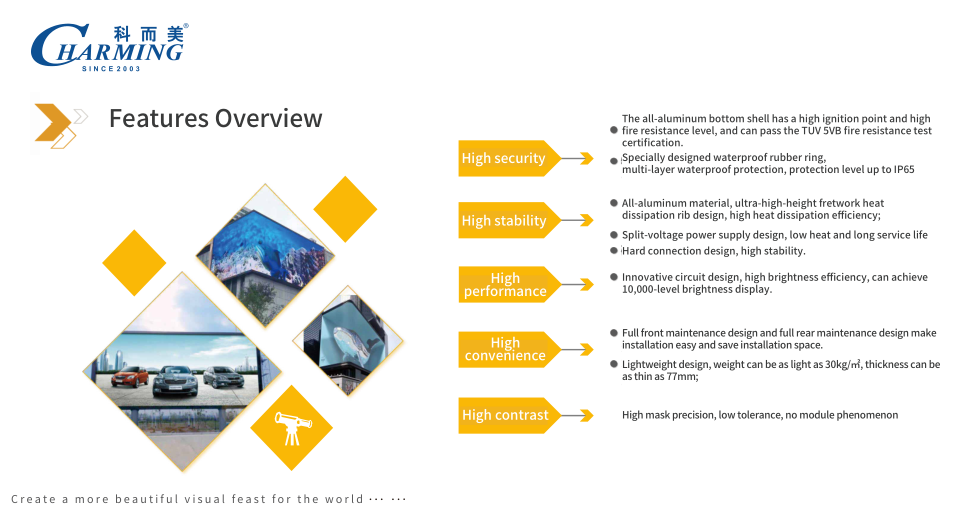

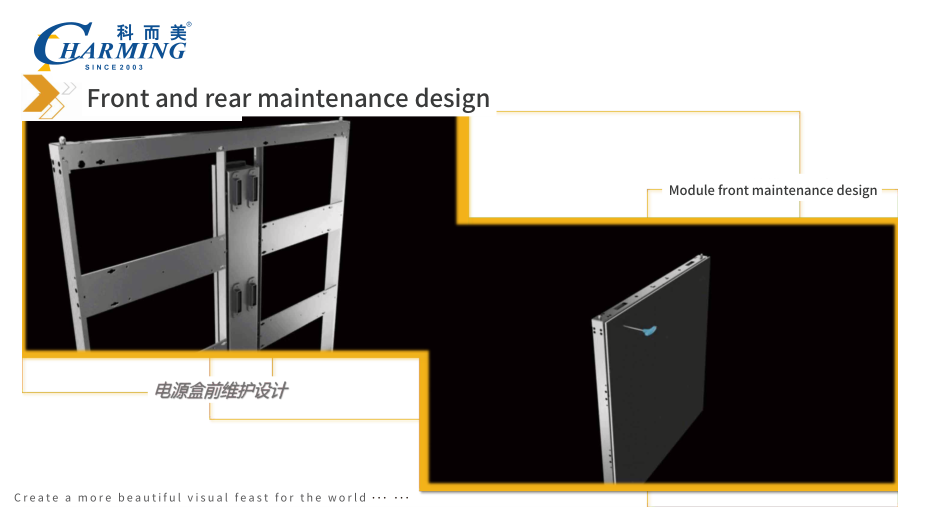

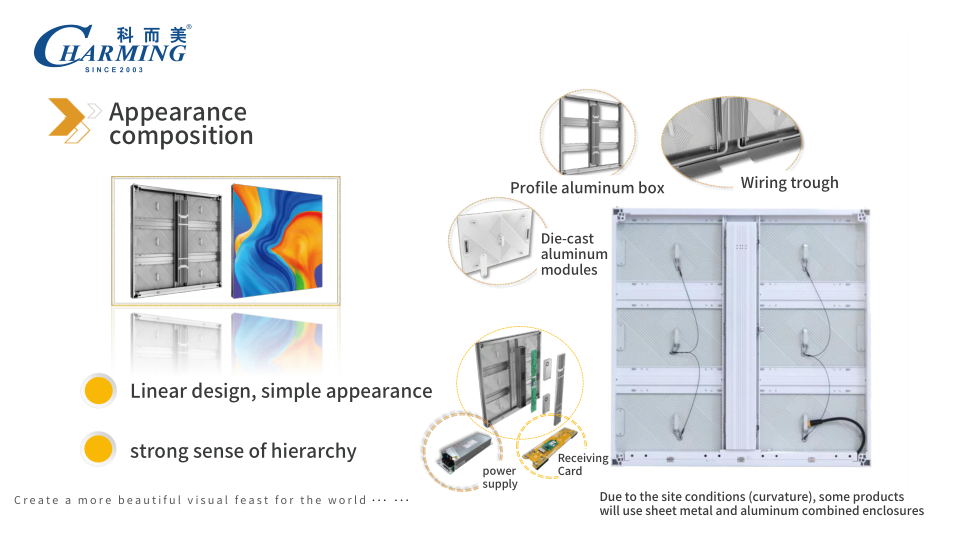

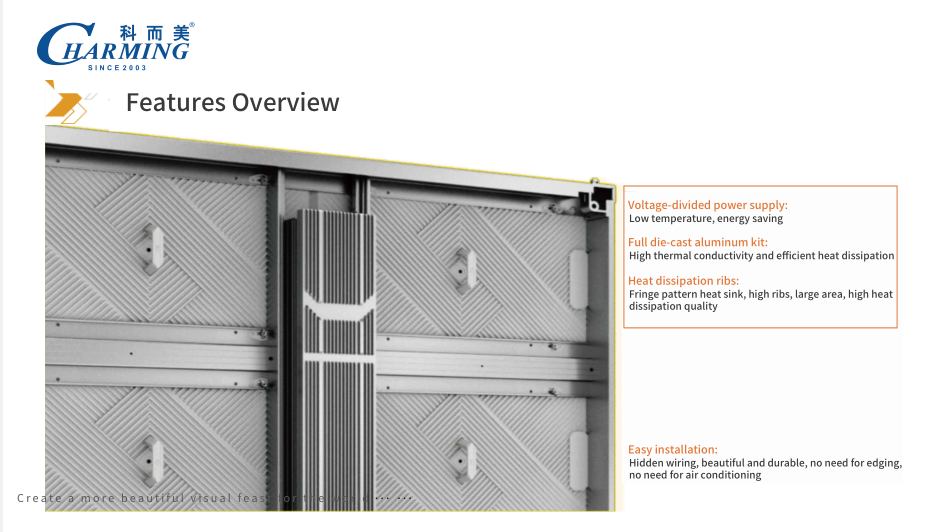

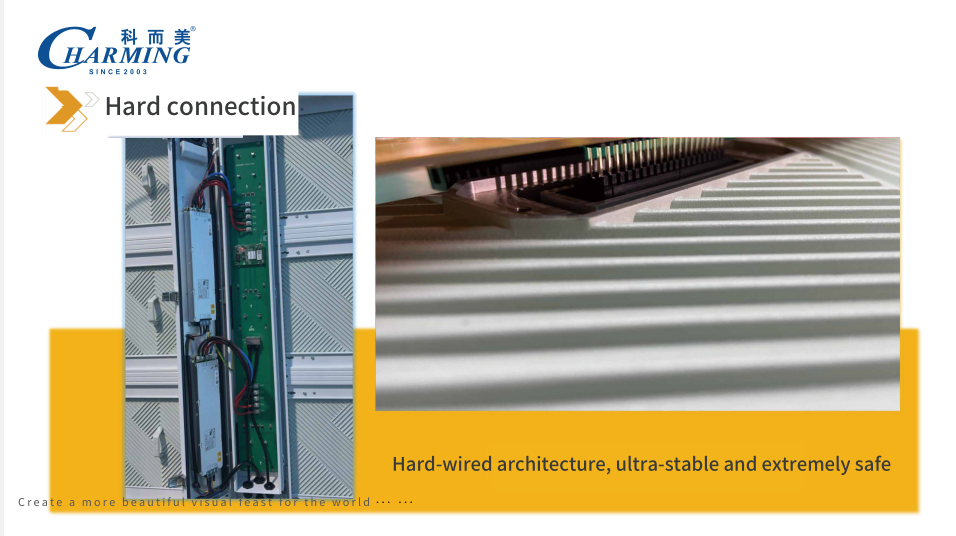

Latest Arc-Capable P10 Outdoor LED Display with High Contrast & 90° Corner Splicing, IP65 RatedLatest Arc-Capable P10 Outdoor LED Display with High Contrast & 90° Corner Splicing, IP65 RatedLatest Arc-Capable P10 Outdoor LED Display with High Contrast & 90° Corner Splicing, IP65 RatedLatest Arc-Capable P10 Outdoor LED Display with High Contrast & 90° Corner Splicing, IP65 RatedLatest Arc-Capable P10 Outdoor LED Display with High Contrast & 90° Corner Splicing, IP65 RatedLatest Arc-Capable P10 Outdoor LED Display with High Contrast & 90° Corner Splicing, IP65 RatedLatest Arc-Capable P10 Outdoor LED Display with High Contrast & 90° Corner Splicing, IP65 RatedLatest Arc-Capable P10 Outdoor LED Display with High Contrast & 90° Corner Splicing, IP65 RatedLatest Arc-Capable P10 Outdoor LED Display with High Contrast & 90° Corner Splicing, IP65 Rated

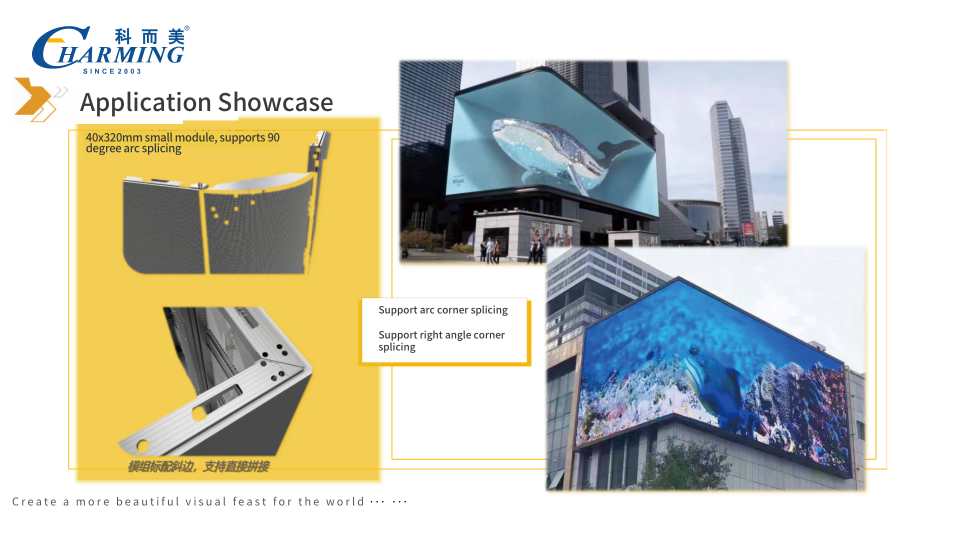

Case Show

Latest Arc-Capable P10 Outdoor LED Display with High Contrast & 90° Corner Splicing, IP65 Rated

Company Profile

Latest Arc-Capable P10 Outdoor LED Display with High Contrast & 90° Corner Splicing, IP65 Rated

Latest Arc-Capable P10 Outdoor LED Display with High Contrast & 90° Corner Splicing, IP65 Rated

Latest Arc-Capable P10 Outdoor LED Display with High Contrast & 90° Corner Splicing, IP65 RatedLatest Arc-Capable P10 Outdoor LED Display with High Contrast & 90° Corner Splicing, IP65 RatedLatest Arc-Capable P10 Outdoor LED Display with High Contrast & 90° Corner Splicing, IP65 Rated

Company introduction

Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 22 years.

Problem


1.Can I have a sample order for led screen?
Yes, we welcome sample order to test and check quality for both led module and led screen.

2.What kind of warranty do you offer?
We offer one years warranty for our products.

3.How is the after sales service?
We have a professional team which is in charge of after-sales service, also a service hot-line dealing with your complains and feedback.We also offer 24-hour online service to help you solving problems.

4. Can we make any size of led display?
Nope, according the led module size and cabient size
