HDMI Video Transmitter And Receiver COFDM Module For 4K Wireless Transmission
HDMI Video Transmitter And Receiver COFDM Module For 4K Wireless Transmission
HDMI Video Transmitter And Receiver COFDM Module For 4K Wireless Transmission
HDMI Video Transmitter And Receiver COFDM Module For 4K Wireless Transmission
Specifications
Brand Name :
Hincn
Model Number :
HC-T4K
Place of Origin :
China
MOQ :
1 pc
Price :
US$798.00~US$929.00
Payment Terms :
,T/T,Western Union,MoneyGram,D/P,D/A,L/C
Supply Ability :
300 pcs/ month
Delivery Time :
7~14 working days
Packaging Details :
carton package
Wireless modulation :
COFDM
Transmission power :
Configurable from -93dBm to -5dBm
Frequency :
160MHz~4GHz
Video input :
HDMI & Ethernet
Management :
Web UI or serial port
Brand :
Hincn
Description

HDMI Ethernet Input COFDM HD Transmitter Module For 4K Video Wireless Transmission


Key Features:

  • COFDM modulation.
  • Support HDMI input, capable of transmitting 4K (3840*2160@30) video
  • H265/H264 encoding with low latency.
  • Support input of IP camera video via network port.
  • Support analog audio or HDMI audio input.
  • Support one unidirectional data transmission serial port.
  • Web UI method or configuration through serial port for management.

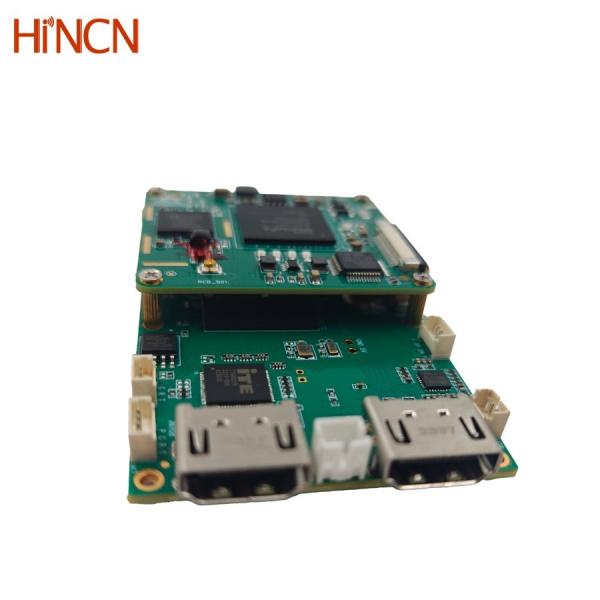

COFDM HD Transmitter Module Picture:

HDMI Video Transmitter And Receiver COFDM Module For 4K Wireless Transmission


The 4K COFDM HD Transmitter module consists of two modules: COFDM modulator and 4K video encoder. These two modules are connected via 26-pin FPC cable. The COFDM HD transmitter can achieve the highest 4K (3840*2160@30) video input with H265/H264 low-latency encoding.It also supports IP Camera video input and transmits after COFDM modulation.


The interface function description of the COFDM HD transmitter module as follows:


HDMI in Standard Type A HDMI connector, capable of supporting up to 4K (3840*2160@30) video input with H265/H264 low-latency encoding.
Ethernet 4 pin PH1.25mm connector,support simultaneous connection of IP camera and HDMI input video for COFDM modulation and transmission together. The parameters of the module can also be configured via the Ethernet port connection to the computer by Web UI.The default IP address is 192.168.0.215.
Data Uart 3PIN PH1.25mm connector,bidirectional transparent data uart,TTL 3.3V level, transmission baud rate and other parameters can be configured.
Control Uart 4PIN PH1.25mm connector, TTL 3.3V level, it can be connected to the host computer or our configuration control board for management of COFDM HD transmitter module.
Analog Audio in 3PIN PH1.25mm connector,capable of connecting analog audio input and video for simultaneous encoding and transmission. Default configuration is HDMI audio input, or it can be configured as HDMI input for video,and this audio input port for analog audio.The audio is encoded as AAC,16-bit, mono, 48 Kbps. Line in/Mic in can be configured via software.
Power in 2PIN PH2.0mm connector,supports reverse connection protection for power input, power input range is 7 to 30V. The maximum power consumption of the COFDM HD transmitter module is 5W. Maximum current is 400mA at 12V.
HDMI out Standard Type A HDMI connector
USB Software upgrade and maintenance use
Tx IPEX connector, COFDM modulation RF output port


Technical Specifications:


HDMI Ethernet Input COFDM HD Transmitter Module For 4K Video Wireless Transmission
Model number HC-T4K
Modulation COFDM QPSK, 16QAM, 64QAM
Number of Subcarriers 2K
Wireless bandwidth 1MHz~8MHz adjustable,1KHz step forward
Frequency 160MHz~4GHz
FEC 1/2, 2/3, 3/4, 5/6, 7/8
Guard interval 1/32, 1/16, 1/8, 1/4
Output power Configurable from -93dBm to -5dBm
Bitrate 0.5Mbps to 31.67Mbps
Encryption AES256
Latency

H264 1080P low-latency mode: about 130ms

H265 4K latency mode: about 350ms
Size

80*50mm(The dimensions not including the protruding part of the connector)
Weight

41g
Thickness

less than 15mm
