HDMI 4K Video COFDM Radio Transmitter Module Encoder H.265 H264
HDMI 4K Video COFDM Radio Transmitter Module Encoder H.265 H264
HDMI 4K Video COFDM Radio Transmitter Module Encoder H.265 H264
HDMI 4K Video COFDM Radio Transmitter Module Encoder H.265 H264
Specifications
Brand Name :
Hincn
Model Number :
HC-T4K
Place of Origin :
China
MOQ :
1 pc
Price :
US$798.00~US$929.00
Payment Terms :
,T/T,Western Union,MoneyGram,D/P,D/A,L/C
Delivery Time :
7~14 working days
Supply Ability :
300 pcs/ month
Packaging Details :
carton package
Wireless modulation :
COFDM
Transmission power :
Configurable from -93dBm to -5dBm
Frequency :
160MHz~4GHz
Bandwidths :
1MHz~8MHz adjustable
Bitrate :
0.5Mbps to 31.67Mbps
Size :
80*50mm
Description

HDMI Input 4K Video COFDM Modulator With H.265 /H264 Encode And Low Latency


Key Features:

  • COFDM modulation.
  • Support HDMI input, 4K (3840*2160@30) video H265/H264 encoding with low latency.
  • Supports input of IP camera video via network port.
  • Supports analog audio or HDMI audio input.
  • Supports one unidirectional data transmission serial port.
  • Web UI method or configuration through serial port for management.

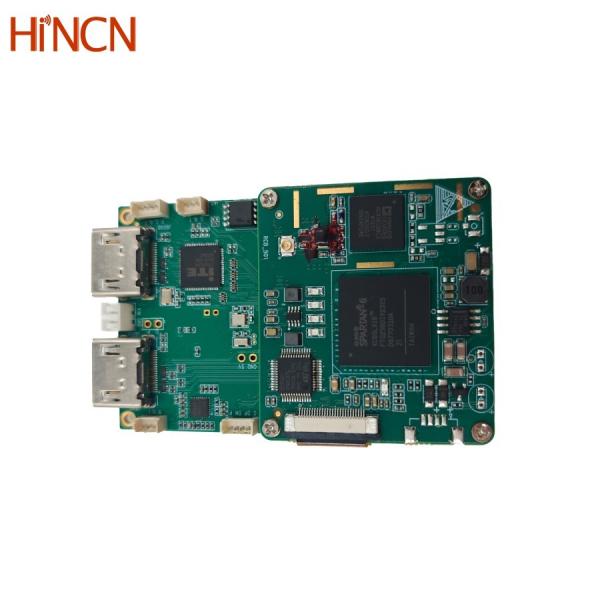

COFDM Modulator with encoder Picture:

HDMI 4K Video COFDM Radio Transmitter Module Encoder H.265 H264


The 4K COFDM Transmitter module is composed of two modules: the COFDM modulator and 4K video encoder, which is connected by 26-pin FPC ribbon cable between the two modules. Achieving the highest 4K (3840*2160@30) video input, H265/H264 low-latency encoding.It also supports IP Camera video input and transmitted after COFDM modulation.


The interface function description of the H4K COFDM transmitter module as follows:


HDMI in Standard Type A HDMI connector, capable of supporting up to 4K (3840*2160@30) video input with H265/H264 low-latency encoding.
Ethernet 4 pin PH1.25mm connector,support simultaneous connection of IP camera and HDMI input video for COFDM modulation and transmission together. The parameters of the COFDM module can also be configured via the Ethernet port connection to the computer by Web UI.The default IP address is 192.168.0.215.
Data Uart 3PIN PH1.25mm connector,bidirectional transparent data uart,TTL 3.3V level, transmission baud rate and other parameters can be configured.
Control Uart 4PIN PH1.25mm connector, TTL 3.3V level, it can be connected to the host computer or our configuration control board for management of the COFDM transmitter module.
Analog Audio in 3PIN PH1.25mm connector,capable of connecting analog audio input and video for simultaneous encoding and transmission. Default configuration is HDMI audio input, or it can be configured as HDMI input for video,and this audio input port for analog audio.The audio is encoded as AAC,16-bit, mono, 48 Kbps. Line in/Mic in can be configured via software.
Power in 2PIN PH2.0mm connector,supports reverse connection protection for power input, power input range is 7 to 30V. The maximum power consumption of the COFDM transmitter module is 5W. Maximum current is 400mA at 12V.
HDMI out Standard Type A HDMI connector
USB Software upgrade and maintenance use
Tx IPEX connector, COFDM modulation RF output port


Technical Specifications:


HDMI Input 4K Video COFDM Modulator With H.265 /H264 Encode And Low Latency
Modulation COFDM QPSK, 16QAM, 64QAM
Number of Subcarriers 2K
Wireless bandwidth 1MHz~8MHz adjustable,1KHz step forward
Frequency 160MHz~4GHz
FEC 1/2, 2/3, 3/4, 5/6, 7/8
Guard interval 1/32, 1/16, 1/8, 1/4
Output power Configurable from -93dBm to -5dBm
Bitrate 0.5Mbps to 31.67Mbps
Encryption AES256
Latency

H264 1080P low-latency mode: about 130ms

H265 4K latency mode: about 350ms
Size

80*50mm(The dimensions not including the protruding part of the connector)
Weight

41g
Thickness

less than 15mm


We have different kinds of COFDM transmitter modules with different functions,support mutiple video input formats. Customized OEM & ODM is welcomed. Just contact and talk about your project requirements.
