160MHz~860MHz Drone Video Link COFDM Video Receiver Wireless With AES256 Encryption
160MHz~860MHz Drone Video Link COFDM Video Receiver Wireless With AES256 Encryption
160MHz~860MHz Drone Video Link COFDM Video Receiver Wireless With AES256 Encryption
160MHz~860MHz Drone Video Link COFDM Video Receiver Wireless With AES256 Encryption
Specifications
Brand Name :
Hincn
Model Number :
HCT820+ HCR800
Place of Origin :
China
MOQ :
1 set
Price :
US$599~US$1,998
Payment Terms :
,T/T,Western Union,MoneyGram,D/P,D/A,L/C
Delivery Time :
7~14 working days
Certification :
CE
Supply Ability :
500 SETS/Month
Packaging Details :
Caton packing
Wireless (De) modulation :
COFDM
Transmission power :
1W(30dBm) or 2.5W(34dBm)
Frequency :
160MHz~860MHz
Encryption :
AES256
Receiving sensitivity :
-100±1dbm at QPSK 8MHz
Bandwidth :
1MHz to 8MHz
Description

COFDM Wireless Transmitter Receiver With AES256 Encryption for Drone Video Link


Transmitter Key Features:

  • COFDM modulation
  • H265/H264 video encoding/ decoding, supports up to 1080P/I at 60fps.
  • AES256 encryption and decryption
  • Support non line of sight (NLOS) high speed mobile transmission up to 800 kilometers per hour, suitable for Drone video download links from the air to the ground
  • Center frequency, wireless bandwidth, transmission stream, etc. can all be configured
  • Small size and light weight.


COFDM Video Transmitter Technical Specifications:


Wireless Transmitter
Interface
HD video input Standard HDMI interface
SD video input 4PIN 1.5mm pitch connector(CVBS Analog Audio Video Input)
One-way transparent data transmission serial port 3PIN 1.5mm pitch connector,default to be TTL3.3V level, standard RS232 level can also be optional before shipment.
Configure serial port 4PIN 1.5mm pitch connector,TTL3.3V.It can be connected to our Parameter Configure Board, and can also be connected to a PC or other host computer.
Power input XT30PW-M connector(12V Power Supply)
Antenna port SMA male
COFDM Wireless Modulation Transmission
Wireless modulation COFDM
IFFT mode 2K
Wireless bandwidth 1MHz~8MHz adjustable,1KHz step forward
FEC 1/2, 2/3, 3/4, 5/6, 7/8
Guard interval 1/32, 1/16, 1/8, 1/4
Constellation QPSK, 16QAM, 64QAM
Wireless code stream 0.5Mbps to 31.67Mbps( bites per second)
Frequency Optional working frequency band 300~360MHz;350~400MHz;450~500MHz;520~560MHz; 580~620MHz;680~720MHz;820~860MHz. Other frequencies between 300~860MHz can be customized.Center operating frequency can be configurable, with a step of 1KHz.
Transmission power 1W(30dBm) or 2.5W(34dBm),optional 10W/ 20W
Audio and video processing
Support video input Default one channel video input: HD or SD. Video input is automatically detected after power on. If connected at the same time, it defaults to the preferred HDMI input, and can also be changed to the preferred AV input. Optional dual video input simultaneous encoding and transmission.
Supported video formats 1080@60P, 1080@50P, 1080@30P, 1080@25P, 1080@24P, 1080@60I, 1080@ 50I, 1080@30I, 720@60P, 720@50P, 720@30P, …… 720*480 60I(NTSC), 720*576 50I(PAL)
Video encoding H265/H264
Audio input HDMI embedded audio or analog audio
audio format AAC, 16bit, stereo, 32Kbps
Encryption AES256
Size 104.5*50*27mm(Excludes protruding connectors)
Weight Less than 140g
Power and Power Consumption DC 12V power supply(11~13V) Power consumption for 1W PA power amplifier is less than 15W, and power consumption for 2.5W PA power amplifier is less than 23W.
Latency H265:200~300 ms; H264: 50~130 ms

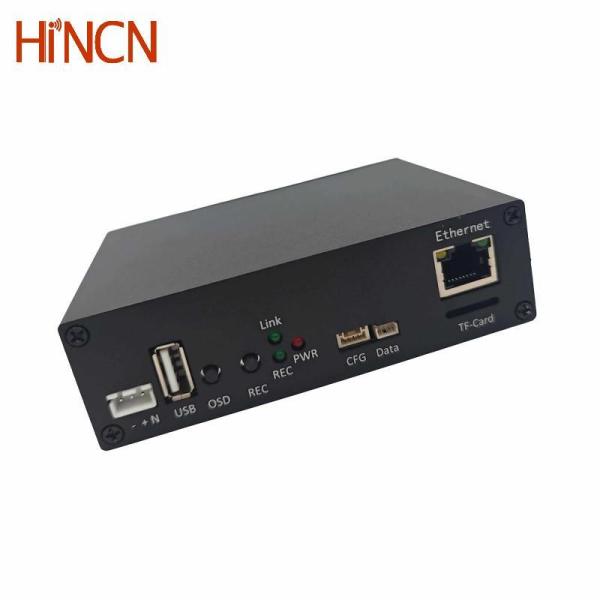

The Paired COFDM Video Receiver Technical Specifications:


Wireless Receiver
Input /output
HD video output HDMI type A connector
Composite video output RCA connector
Audio output Embedded HDMI and RCA connector
RF input Two SMA femal 50Ω
Power in 3pin PH2.54mm connector
USB Host Type A connector
OSD Key Switch key for OSD -display
Rec Key Switch key for Video recording
3.3V TTL data uart 3pin PH1.25mm connector
3.3V TTL control uart 4pin PH1.25mm lockable connector
Ethernet RJ45
TF-card TF-card slot
COFDM Wireless Demodulation
Demodulation COFDM(DVB-T)
Carriers 2K
Bandwidth Configurable from 1MHz to 8MHz,step by 1KHz
FEC 1/2,2/3,3/4,5/6,7/8
Guard interval 1/32,1/16,1/8,1/4
Constellation QPSK, 16QAM, 64QAM
Bitrates 0.5Mbps to 31.67Mbps
RF
Frequency Bands 160~860MHz
Tuning Step Size 1KHz
Sensitivity -97±1dBm(BW=8MHz, QPSK, CR=2/3, GI=1/16) for one channel and add 3dBm for two channels
Video and Audio
Video output HDMI and CVBS, Ethernet (RTSP protocol by default, option UDP), USB
Video formats 1080P or 720P 720*480 60I(NTSC), 720*576 50I(PAL)
Video Decoding MPEG-4/H.264 AVC
Audio Output Embedded HDMI and AV audio
Audio Decoding AAC
Descryption AES256
Storage USB disk or Micro- SD card
Monitoring and control
Control method Setup with our Config Panel or Windows PC or other device via control UART.
Temperature range
Full specification 0° to +70°C Ambient
Storage –40° to +80°C
Physical Characteristics
Dimensions 115*90*34mm
Weight 260g
Power requirements
Input range 7~16VDC
Power consumption <300mA @ 12V


IO Signals


160MHz~860MHz Drone Video Link COFDM Video Receiver Wireless With AES256 Encryption

The wireless transmitter is assembled with modulator, encoder and PA power amplifier. The wireless receiver is composed of demodulator and decoder. If you only want to purchase the OEM modules, please contact us for the corresponding informations for transmitter and receiver modules.
