UHF Full Duplex Transceiver Video Transmission 24V~30V
UHF Full Duplex Transceiver Video Transmission 24V~30V
UHF Full Duplex Transceiver Video Transmission 24V~30V
UHF Full Duplex Transceiver Video Transmission 24V~30V
Specifications
Brand Name :
Hincn
Model Number :
HCL605-5
Place of Origin :
China
MOQ :
1 set
Price :
US$2,255~US$2,555
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
600pcs/month
Delivery Time :
7~14 working days
Packaging Details :
Canned and packaged in cardboard boxes
Frequency :
566~678MHz and 1420~1530MHz
Sensitivity :
-102dBm(1Mbps at 20MHz)
Network mode :
Mesh
Power input :
24~30V
OEM&ODM :
Support
Warranty :
1 year warranty and lifetime maintenance
Description

TDD Full Duplex Transceiver Video Transmission Combat Radio Communication System


Key Features:

  • TDD OFDM full duplex transceiver for video data transmission.
  • Up to 100Mbps Iperf Throughput.
  • Supports Mesh Networks.

  • With flexible channel bandwidths (1.4MHz, 3MHz, 5MHz, 10MHz, 20MHz, 40MHz).

  • Interface through web browser or control uart.
  • 3 Ethernet port and 1 channel RS232/TTL to meet various data transmission requirements.
  • Maximum 100km wireless video data transmission.

  • Dual power supply with 5W*2 RF power.


Overview:

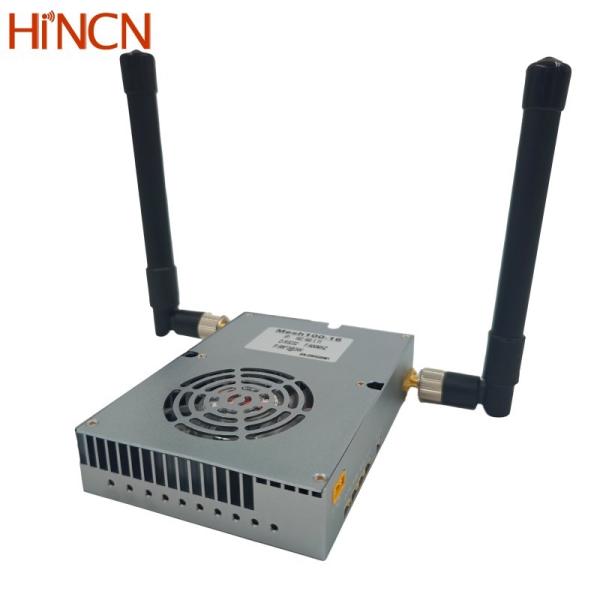

The HCL605 full duplex transceiver is a device specificallly designed for long range wireless transmission of video data. This OFDM radio operates in the 600MHz or 1.4GHz frequency bands, and employs frequency hopping spread spectrum technology (FHSS) to ensure higher stability of UAV signal communication even in rapid movement condition.


Technical Specifications:


TDD Full Duplex Transceiver Video Transmission Combat Radio Communication System
Modulation TDD OFDM
Frequency 566~678MHz and 1420~1530MHz
Bandwidths 1.4MHz, 3MHz, 5MHz,10MHz, 20MHz, 40MHz
Throughput Maximum 100Mbps
RF transmission Power 5W *2( dual power supply, each 5W of the 2 antennas)
Constellation QPSK,16QAM,64QAM, self-adaption
Sensitivity -102dBm(1Mbps at 20MHz)
IP data transmission 3 Ethernet port
Serial data transmission 1 channel RS232 or TTL
Transmission range 2~10km( ground to ground), maximum 100km( UAV to ground)
Management Trough Web UI or Control uart
Encryption AES128-bit encryption
Network mode Mesh
Movement speed Support maximum 300km/h
Power input 24~30V
Power consumption <2A at 12V
Dimensions 113.9*83.7*23.3 mm
Weight 243g


UHF Full Duplex Transceiver Video Transmission 24V~30V


Input/ Output Description
Ethernet 3 channel 4Pin PH1.25mm connector, bridged inside with same IP address
Data UART RS232 data UART(RS232 as default, optional TTL before shipping out), 3PIN PH1.25mm connector
Control UART TTL control UART, 3PIN PH1.25mm connector
Power in XT30PW-M connector
ANT 1 Tx/Rx Antenna port, SMA female
ANT 2 Tx/Rx Antenna port, SMA female



Wireless networking with HCL605-5W UAV video data link:

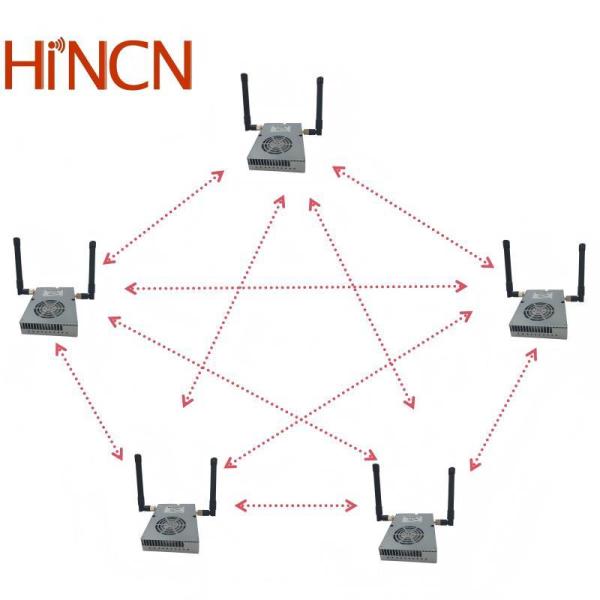

Mesh transmitting

UHF Full Duplex Transceiver Video Transmission 24V~30V


This HCL605 5W full duplex transceiver supports mesh network with maximum 32 nodes and shared maximum 100Mbps Iperf Throughput. Here we recommended the version maximum support 4 nodes- 2 hops and shared 60Mbps. Price is much more competitive.


FAQ


Q1. Does this full duplex transceiver support any other cameras except IP camera?


A: IP camera video can be connected with HCL605 directly via Ethernet port. HDMI/SDI/AHD/AV camera video can be encoded with our SE10/SE11 encoder and then work with HCL605 via Ethernet connection.
