COFDM Video Transmitter And Receiver Module Two-way FDD Wireless Transceiver
COFDM Video Transmitter And Receiver Module Two-way FDD Wireless Transceiver
COFDM Video Transmitter And Receiver Module Two-way FDD Wireless Transceiver
COFDM Video Transmitter And Receiver Module Two-way FDD Wireless Transceiver
Specifications
Brand Name :
Hincn
Model Number :
HCT-226F-M
Place of Origin :
China
MOQ :
1pc
Price :
898.00~US$1,095.00
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1,987pcs/month
Delivery Time :
1 week
Packaging Details :
carton package
Input Voltage :
7~24VDC
Modulation :
COFDM
Rf Transmission Power :
25±2 dBm+ 5W external power amplifier
Bandwidths :
1MHz~8MHz adjustable
Working mode :
Frequency Division Duplexing
OEM/ODM :
Support
Description

COFDM Video Transmitter And Receiver Module Two-way FDD Wireless Transceiver


The COFDM Video Transmitter And Receiver Module is a bidirectional wireless link. It consists of two independent one-way wireless channels, and the two-way wireless links operate on different frequency bands. The wireless link itself does not have a handshake protocol, so when one party of the wireless link is interrupted due to interference, it will not affect the data transmission of the other party. The Ethernet port supports TCP/UDP/IP protocols.


Overview


  • COFDM two-way FDD(Frequency Division Duplexing) wireless Transceiver
  • Transmission frequency range: 70MHz~4GHz, reception frequency range: 160MHz~860MHz
  • 1 Ethernet port and 1 data uart port
  • Support bidirectional transparent data transmission via Ethernet/uart ports
  • AES256 encryption / decryption
  • Control uart for control
  • Wireless transmission delay less than 30ms
  • Achieve stable signal transmission in NLOS (non-line-of-sight) environments and under high-speed movement conditions
  • Support Ethernet/UART connection for broadcast transmission of IP data/UART data

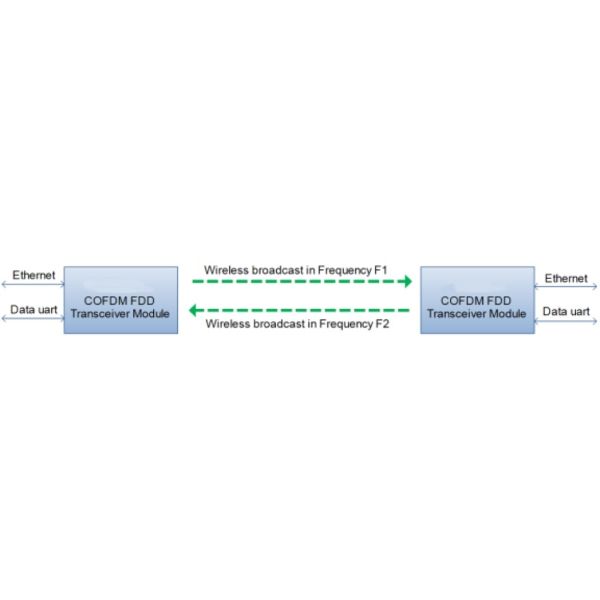

Working diagram


COFDM Video Transmitter And Receiver Module Two-way FDD Wireless Transceiver


Specification:

Input/Output

RF output MMCX female
RF input Two SMA female 50Ω, supporting diversity reception
TTL 3.3V control uart 4PIN PH1.25mm Connector
TTL 3.3V data ua 3PIN PH1.25mm Connector
Power in 2PIN PH2.54mm phenix Connector
Ethernet port 4PIN PH1.25mm Connector
TF-card For firmware update
Power led Red constant light when device is normal powered
Tx led Green blinks on transmitting
Rx led Green blinks on receiving


Modulation/Demodulation

Modulation COFDM
Carriers 2K
Bandwidth Configurable from 1MHz to 8MHz, step by 1KHz
FEC 1/2, 2/3, 3/4, 5/6, 7/8
Guard interval 1/32, 1/16, 1/8, 1/4
Constellation QPSK, 16QAM, 64QAM


RF Transmission

Frequency 70MHz~4GHz
Tunning Step Size 1KHz
RF power Configurable, maximum -5dBm


RF Reception

Frequency 160MHz~860MHz
Tuning Step size 1KHz
Sensitivity -97±1dBm(BW=8MHz, QPSK, CR=2/3, GI=1/16) for one channel and add 3dBm for two channel


Others


Control Config Panel or other device via control uart (AT command)

Full specification Temperature

 -40° to +70°C Ambient
Storage Temperature –40° to +85°C
Size

73x51x11mm (not including connectors out of the board)
Input Voltage

7~24VDC
Power consumption

<250mA@12V



COFDM Video Transmitter And Receiver Module Two-way FDD Wireless Transceiver

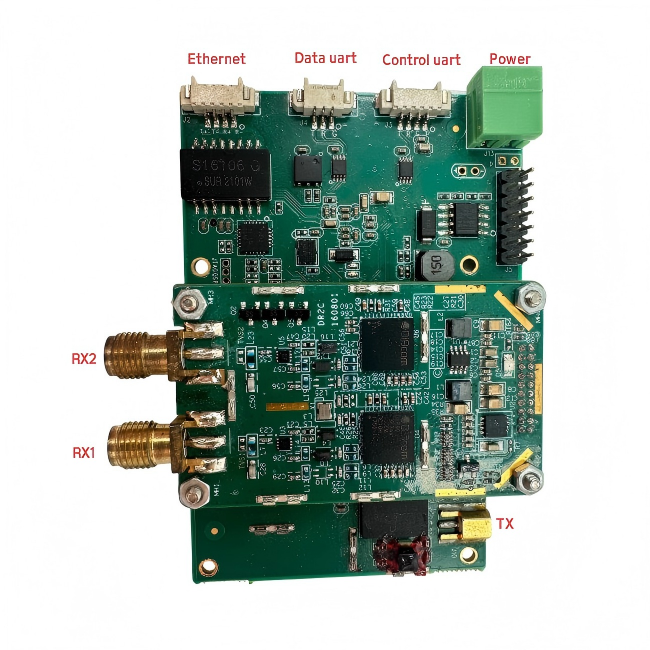

The front of the COFDM Video Transmitter And Receiver Module




COFDM Video Transmitter And Receiver Module Two-way FDD Wireless Transceiver

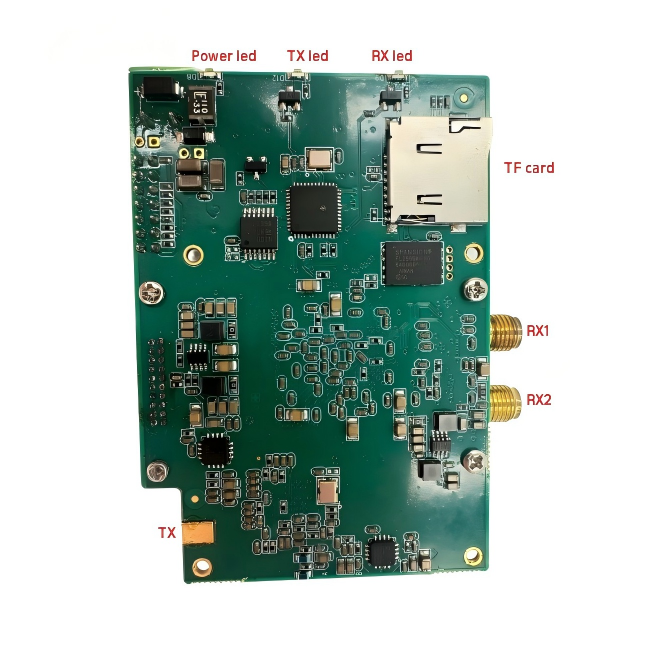

The back of the COFDM Video Transmitter And Receiver Module
