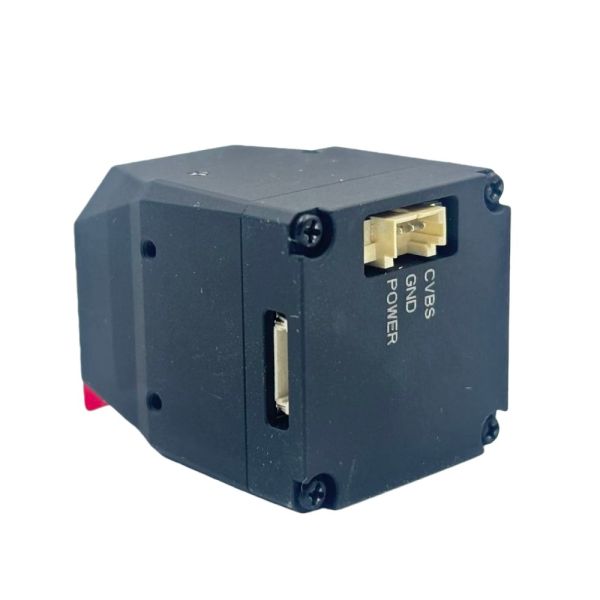

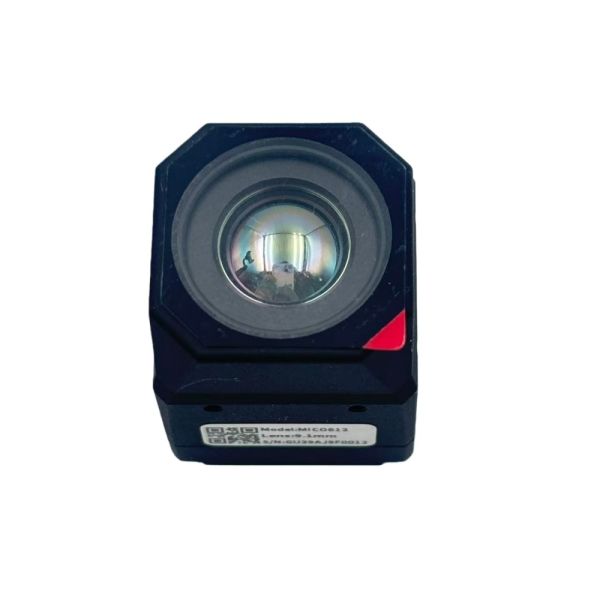

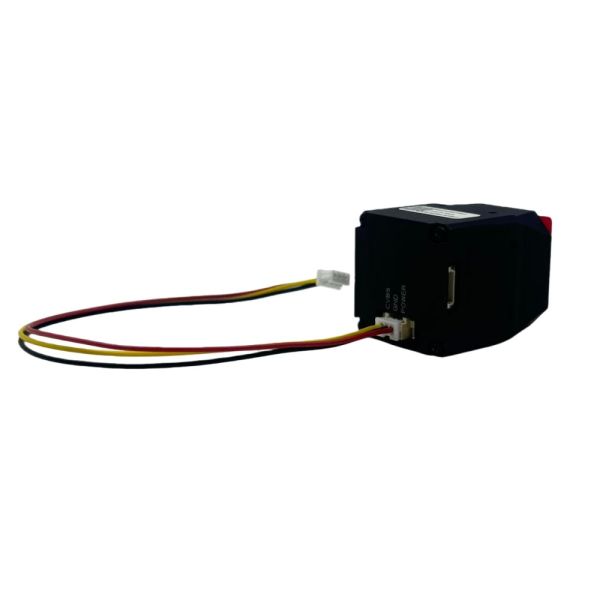

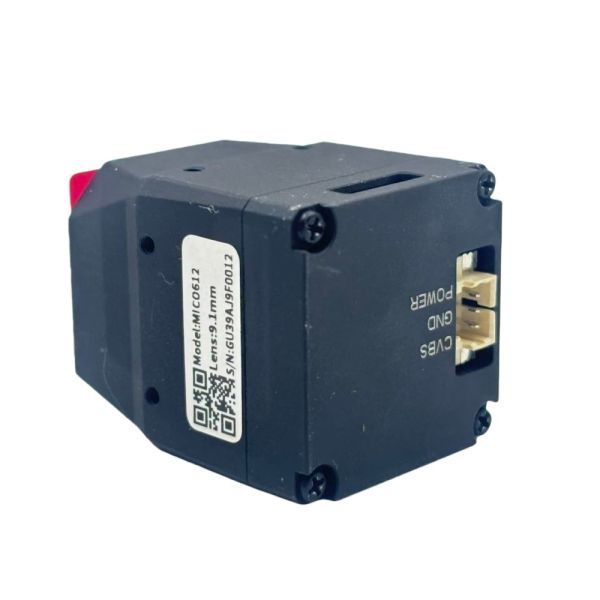

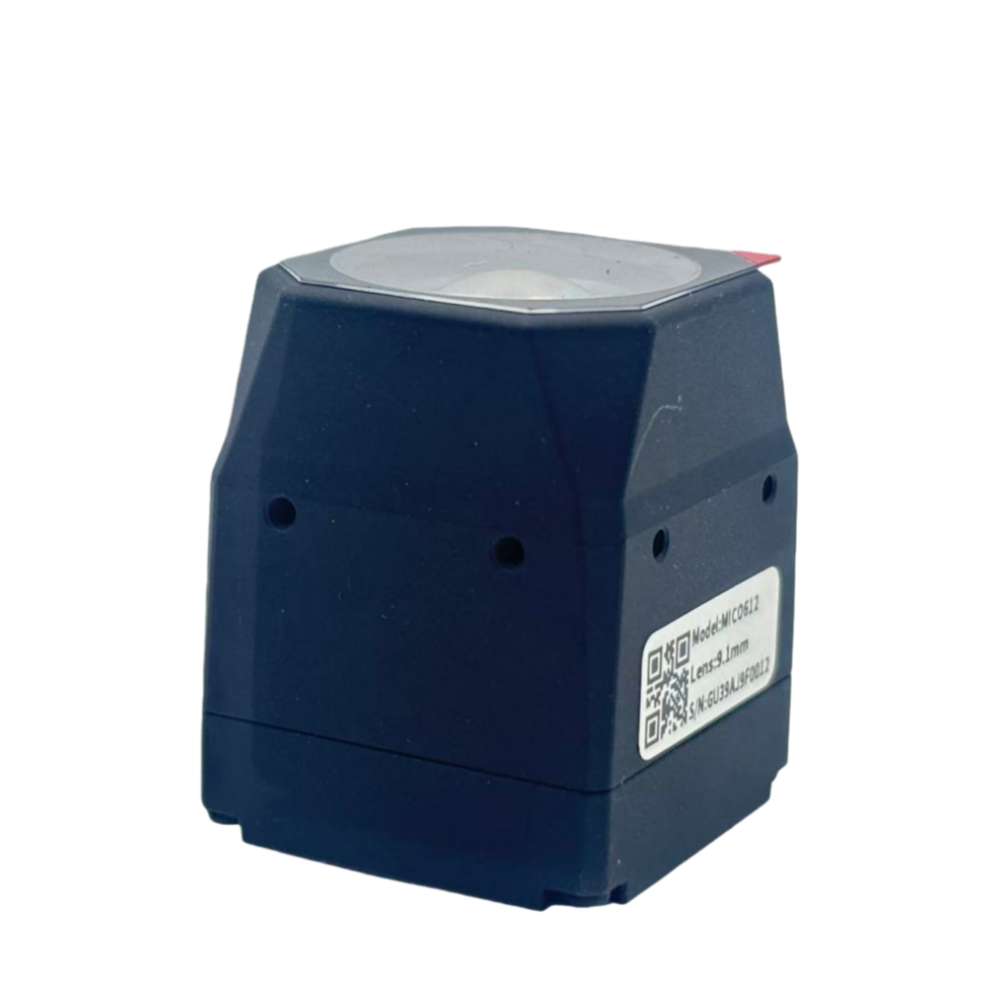

Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
Specifications
Brand Name :
Kimghz technology
Model Number :
KH-MICO612
Certification :
CE
Place of Origin :
Original/CHINA
MOQ :
10 Pieces
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000pieces/month
Delivery Time :
2-5days
Packaging Details :
International Standard Packing
Model :
KH-MICO612
Frequency :
3060MHz~3500MHz
Infrared image resolution :
640× 512
Pixel pitch :
12μm
Operating frequency band :
8~14μm
Image frame rate :
≤50Hz
Focus Mode :
Manual
Detector type :
Vanadium oxide uncooled infrared focal plane array
Description
Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
Designed specifically for outdoor engineering and industrial scenarios, this 640P Infrared Thermal Imaging Camera Module stands out as a compact, lightweight, and easily integrable solution. Its high-sensitivity uncooled VOx infrared detector enables the module to produce clear, detailed thermal images, making fast and accurate target detection achievable even in pitch-black darkness or harsh working environments.
With adjustable shutter response, hotspot tracking capability, multiple palette display options, and three available resolution configurations (256×192 / 384×288 / 640×512), this thermal imaging module is highly adaptable to UAV applications, security surveillance, industrial flaw detection, firefighting, search & rescue operations, and outdoor monitoring systems. The inclusion of CVBS and USB outputs ensures hassle-free integration with various hardware platforms and video transmission devices.
Technical Specifications
Brand Name Kimghz technology
Model Number KH-MICO612
Infrared image resolution 640×512
Pixel pitch 12μm
Operating frequency band 8~14μm
Image frame rate ≤50Hz
Focus Mode Manual
Detector type Vanadium oxide uncooled infrared focal plane array
Product Images
Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
3.3GHz FPV VTX installation example on drone frame
Key Features
  • High-Sensitivity VOx Infrared Detector: Utilizes an uncooled vanadium oxide focal plane array covering the 8-14μm spectral range, which ensures stable and precise thermal imaging results.
  • Multiple Resolution Options: Offers 256×192, 384×288, and 640×512 infrared resolutions to meet different performance requirements and budgetary needs of various projects.
  • Steady 50Hz Frame Rate: Boasts a refresh rate of up to 50Hz, ensuring real-time thermal video with smooth playback and no lag or motion distortion.
  • CVBS / USB Video Output: Provides standard PAL (720×576) video output, enabling convenient integration with displays, recorders, and wireless video transmission equipment.
