Long-Range 3.3GHz 5W FPV VTX Offering Stable Performance and 3060–3500MHz Frequency Range
Long-Range 3.3GHz 5W FPV VTX Offering Stable Performance and 3060–3500MHz Frequency Range
Long-Range 3.3GHz 5W FPV VTX Offering Stable Performance and 3060–3500MHz Frequency Range
Long-Range 3.3GHz 5W FPV VTX Offering Stable Performance and 3060–3500MHz Frequency Range
Long-Range 3.3GHz 5W FPV VTX Offering Stable Performance and 3060–3500MHz Frequency Range
Long-Range 3.3GHz 5W FPV VTX Offering Stable Performance and 3060–3500MHz Frequency Range
Long-Range 3.3GHz 5W FPV VTX Offering Stable Performance and 3060–3500MHz Frequency Range
Long-Range 3.3GHz 5W FPV VTX Offering Stable Performance and 3060–3500MHz Frequency Range
Long-Range 3.3GHz 5W FPV VTX Offering Stable Performance and 3060–3500MHz Frequency Range
Long-Range 3.3GHz 5W FPV VTX Offering Stable Performance and 3060–3500MHz Frequency Range
Long-Range 3.3GHz 5W FPV VTX Offering Stable Performance and 3060–3500MHz Frequency Range
Long-Range 3.3GHz 5W FPV VTX Offering Stable Performance and 3060–3500MHz Frequency Range
Specifications
Brand Name :
Kimghz technology
Model Number :
KH-ALV3305AC
Certification :
CE
Place of Origin :
Original/CHINA
MOQ :
10 Pieces
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000pieces/month
Delivery Time :
2-5days
Packaging Details :
International Standard Packing
Model :
KH-ALV3305AC
Frequency :
3060MHz~3500MHz
Input Voltage :
7-26V
Power Output :
7W
Channels :
64CH
Output Voltage :
5V
Range :
3060MHz~3500MHz
Weight :
40.4g
Dimensions :
50*38*16mm
Description
Long-Range 3.3GHz 5W FPV VTX Offering Stable Performance and 3060–3500MHz Frequency Range
High-stability wireless video transmission module featuring stable transmission and 3060MHz–3500MHz frequency coverage for professional drone applications.
Product Overview
This advanced 3.3GHz FPV Video Transmitter with adjustable power output operates from 3060MHz to 3500MHz, designed for reliable, low-latency, long-range drone video transmission in professional and industrial UAV applications.
The 3.3G 64-channel VTX is a high-performance wireless video transmission module specifically engineered for drone applications, providing stable and reliable video signal transmission with flexible parameter customization. Supporting 7-26V wide voltage input, it adapts to various drone power supply systems and features a dedicated LED display for intuitive real-time monitoring of working parameters.
Compared to standard single-channel or fixed-parameter VTX modules, this product offers 8 selectable bands and 8 channels per band, totaling 64 channels, which significantly enhances anti-interference capability and avoids signal conflicts in complex flight environments.
Technical Specifications
Brand Name Kimghz technology
Model Number KH-ALV3305AC
Frequency 3060MHz~3500MHz
Power Output 5 Watt
Output Voltage 5V
Power Supply 7-26V
Antenna Connector SMA connector
Extra Feature IRC

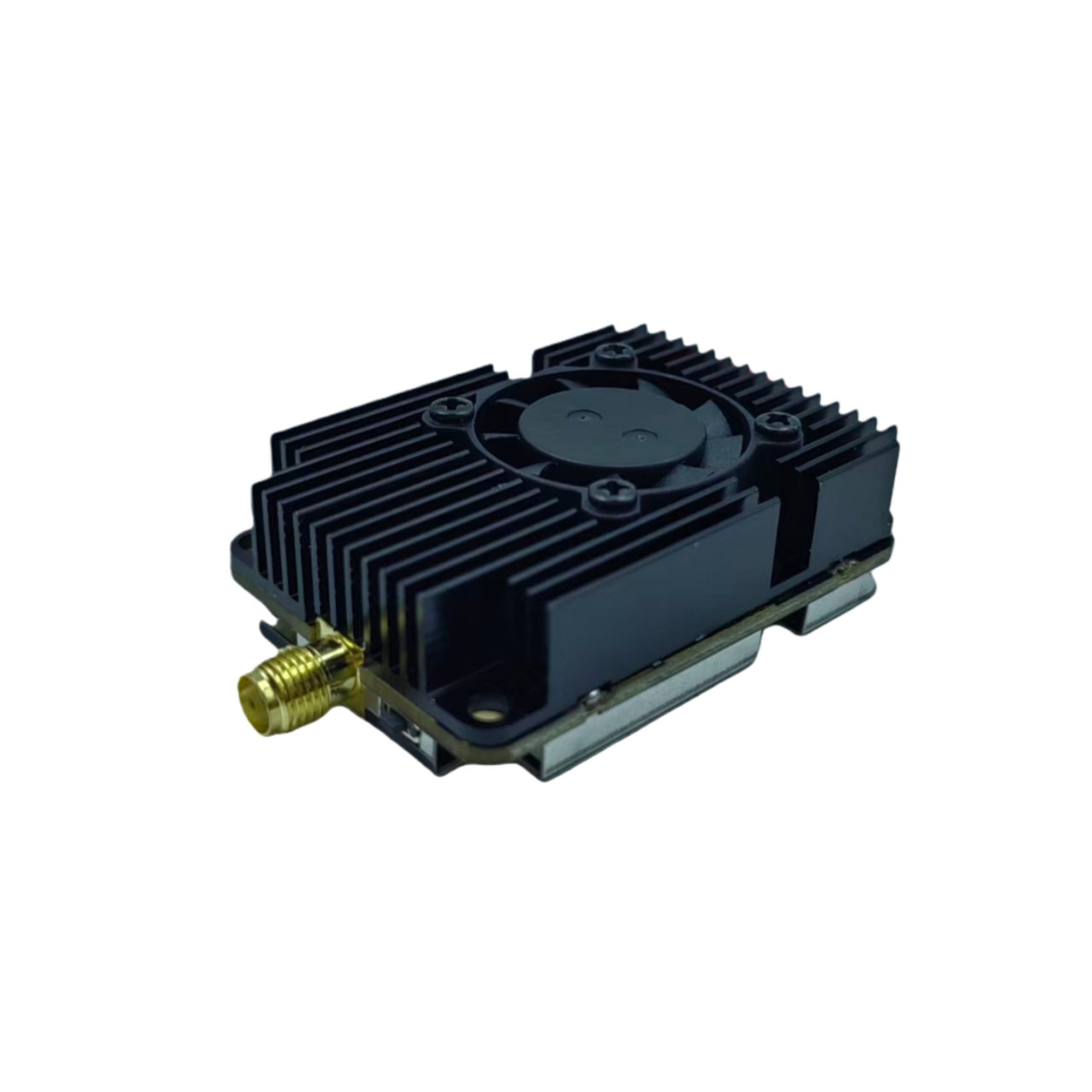

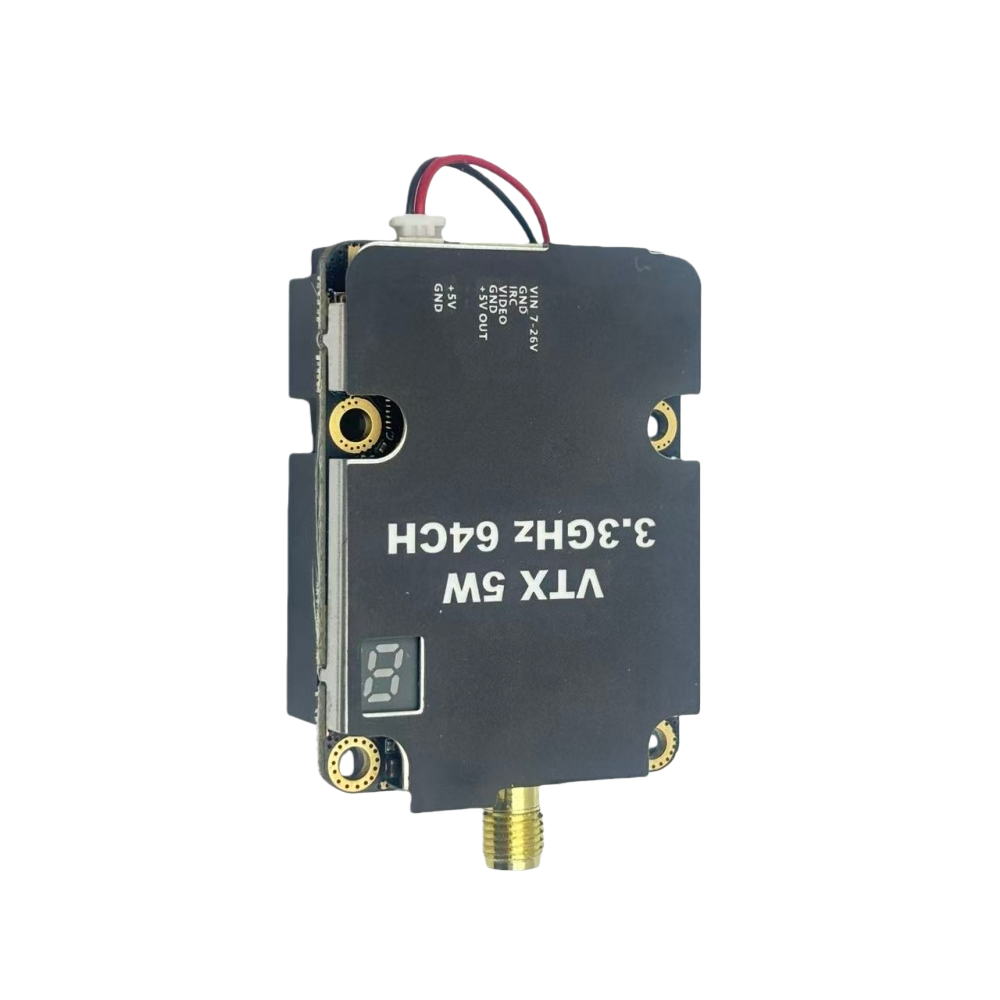

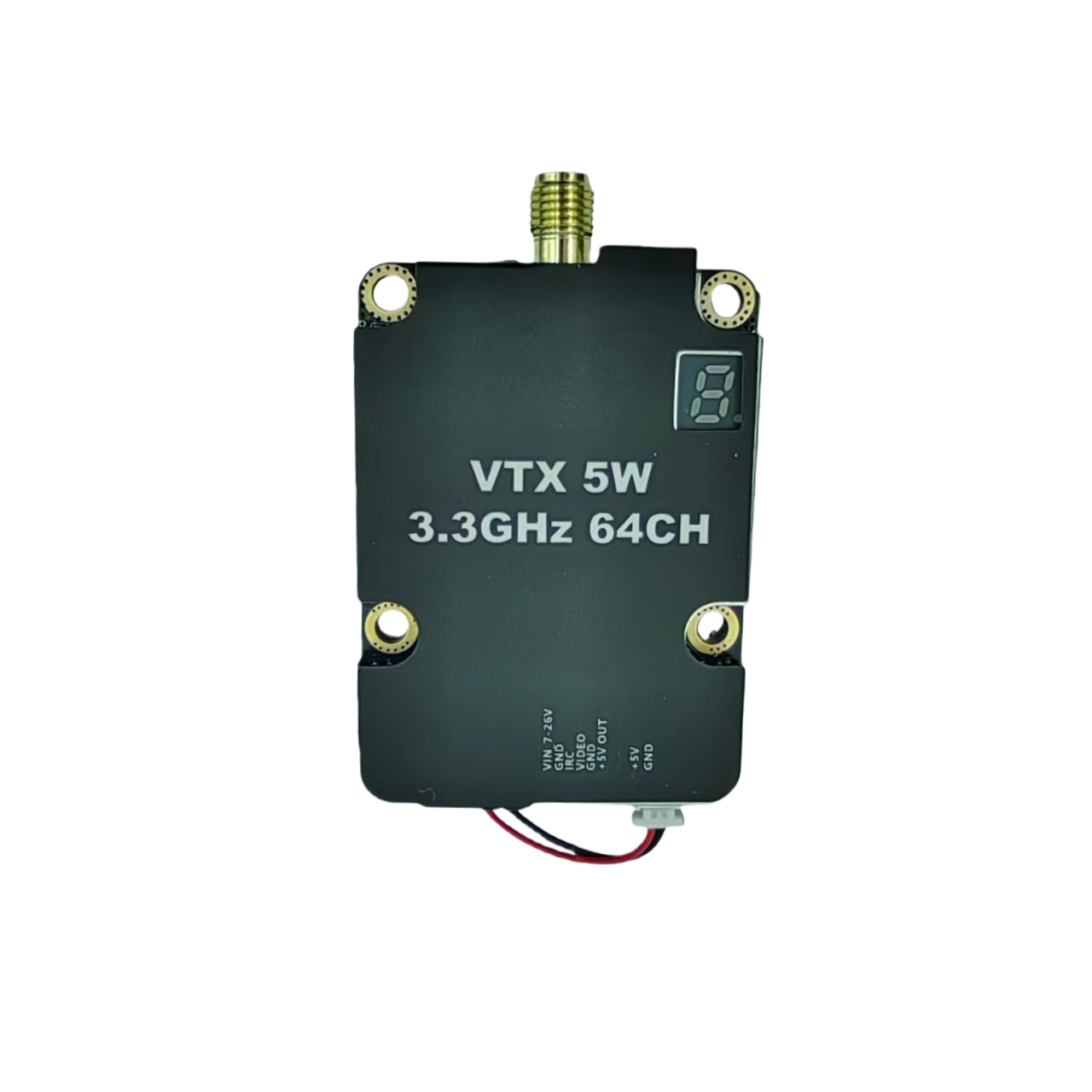

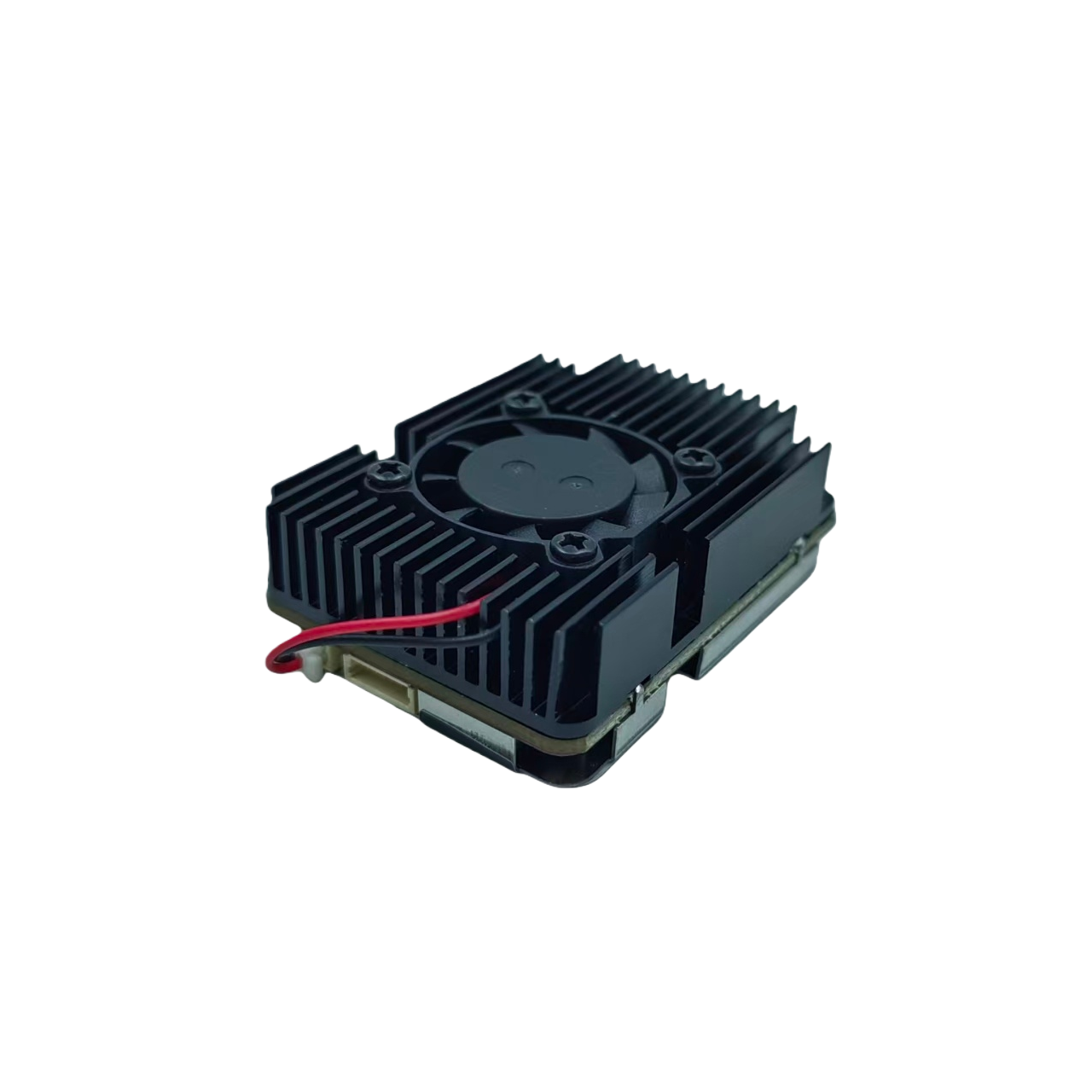

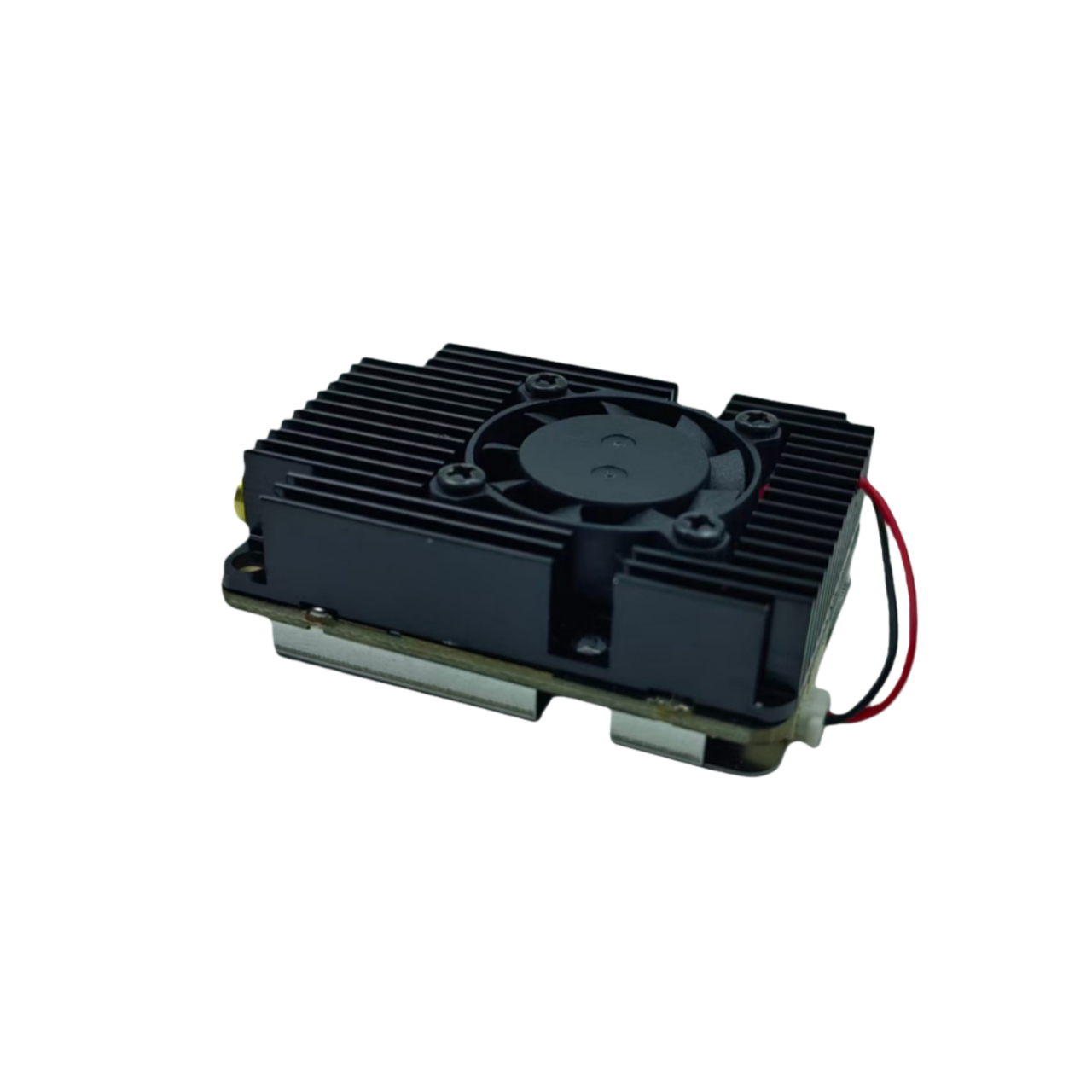

Product Images
Long-Range 3.3GHz 5W FPV VTX Offering Stable Performance and 3060–3500MHz Frequency Range Long-Range 3.3GHz 5W FPV VTX Offering Stable Performance and 3060–3500MHz Frequency Range Long-Range 3.3GHz 5W FPV VTX Offering Stable Performance and 3060–3500MHz Frequency Range Long-Range 3.3GHz 5W FPV VTX Offering Stable Performance and 3060–3500MHz Frequency Range Long-Range 3.3GHz 5W FPV VTX Offering Stable Performance and 3060–3500MHz Frequency Range Long-Range 3.3GHz 5W FPV VTX Offering Stable Performance and 3060–3500MHz Frequency Range
Key Features
  • Frequency & Channel Configuration: 3.3G frequency band with 8 selectable bands (A-H) and 8 channels per band, totaling 64 channels for strong anti-interference and flexible signal transmission
  • Flexible Power Adjustment: Supports 2 high-power levels (2000mW and 7000mW) and 0dBm P-mode, with convenient power switching via button operation (4-second press to enter, short press to adjust)
  • Wide Voltage Adaptation: 7-26V input voltage range, compatible with various drone power supply systems for strong versatility
  • Enhanced Reliability: Designed with dedicated heat sink for optimal thermal management, ensuring stable operation under long-term high-load transmission conditions
  • Safe Operation: Supports pit mode for safe ground debugging with flexible entry/exit methods via Betaflight or button operation
