3.3GHz 7W Variable Power Output Wireless Video Transmitter Module for Drones
3.3GHz 7W Variable Power Output Wireless Video Transmitter Module for Drones
3.3GHz 7W Variable Power Output Wireless Video Transmitter Module for Drones
3.3GHz 7W Variable Power Output Wireless Video Transmitter Module for Drones
3.3GHz 7W Variable Power Output Wireless Video Transmitter Module for Drones
3.3GHz 7W Variable Power Output Wireless Video Transmitter Module for Drones
3.3GHz 7W Variable Power Output Wireless Video Transmitter Module for Drones
3.3GHz 7W Variable Power Output Wireless Video Transmitter Module for Drones
3.3GHz 7W Variable Power Output Wireless Video Transmitter Module for Drones
3.3GHz 7W Variable Power Output Wireless Video Transmitter Module for Drones
Specifications
Brand Name :
Kimghz technology
Model Number :
KH-ALV3307AC
Certification :
CE
Place of Origin :
Original/CHINA
MOQ :
10 Pieces
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000pieces/month
Delivery Time :
2-5days
Packaging Details :
International Standard Packing
Model :
KH-ALV3307AC
Frequency :
3060MHz~3500MHz
Input Voltage :
7-26V
Power Output :
7W
Channels :
64CH
Output Voltage :
5V
Range :
3060MHz~3500MHz
Weight :
40.4g
Dimensions :
50*38*16mm
Description
3.3GHz 7W Variable Power Output Wireless Video Transmitter Module for Drones
High-Stability 3.3GHz FPV Video Transmitter with Adjustable Power Output. This wide frequency range FPV VTX operates from 3060MHz to 3500MHz and is designed for reliable, low-latency, long-range drone video transmission in professional and industrial UAV applications.
Product Overview
This 3.3G 64-channel VTX (Video Transmitter) is a high-performance wireless video transmission module designed specifically for drone applications, providing stable and reliable video signal transmission with flexible parameter customization. The product supports 7-26V wide voltage input, adapting to various drone power supply systems, and features a dedicated LED display for intuitive real-time monitoring of working parameters, ensuring convenient operation and parameter management.

Compared to standard single-channel or fixed-parameter VTX modules, this product offers 8 selectable bands and 8 channels per band, totaling 64 channels, which greatly enhances the anti-interference capability of video transmission and avoids signal conflicts in complex flight environments. It also provides two high-power output levels (2000mW and 7000mW) as well as a 0dBm P-mode, meeting diverse transmission distance and scene requirements from short-distance practice flights to long-distance aerial photography.

The module is designed with reliability and heat dissipation performance as core priorities, featuring a dedicated heat sink that must not be removed. Its recommended installation on the uppermost layer of the drone frame ensures sufficient airflow for effective heat dissipation, guaranteeing stable operation under long-term high-load transmission conditions. Additionally, it supports pit mode for safe ground debugging, with flexible entry/exit methods via Betaflight or button operation, further improving the safety and convenience of use.
Technical Specifications
Brand Name Kimghz technology
Model Number KH-ALV3307AC
Frequency 3060MHz~3500MHz
Power Output 7 Watt
Output Voltage 5V
Power Supply 7-26V
Antenna Conneclor SMA connector
Extra Feature IRC

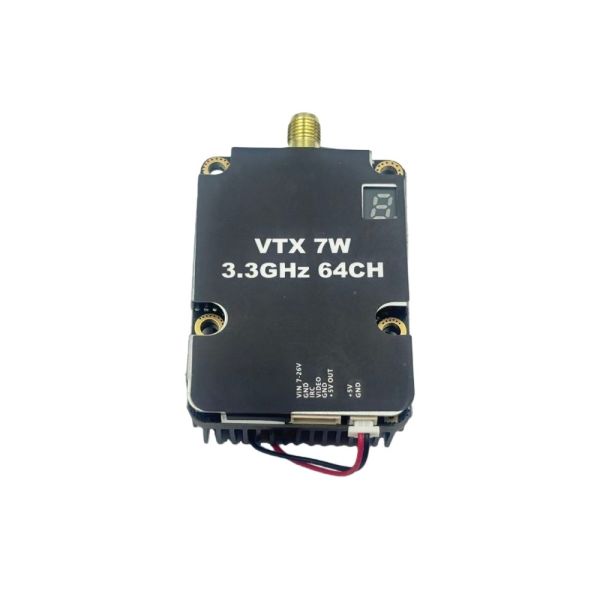

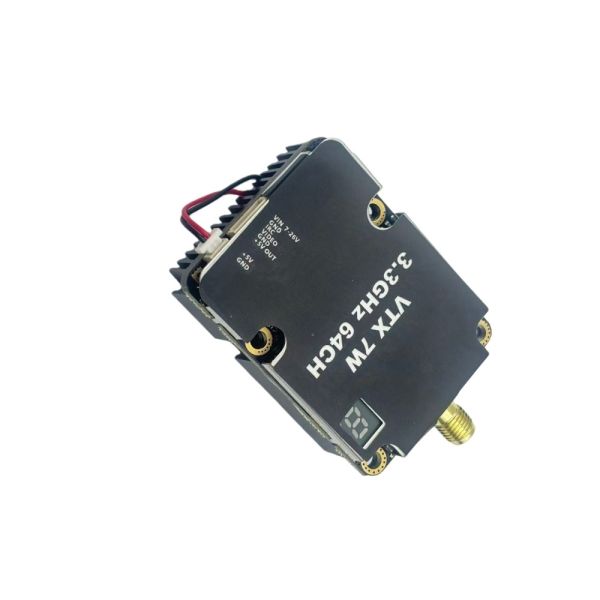

Product Images

3.3GHz 7W Variable Power Output Wireless Video Transmitter Module for Drones3.3GHz 7W Variable Power Output Wireless Video Transmitter Module for Drones3.3GHz 7W Variable Power Output Wireless Video Transmitter Module for Drones
3.3GHz 7W Variable Power Output Wireless Video Transmitter Module for Drones


Key Features
  • Frequency & Channel Configuration: 3.3G frequency band with 8 selectable bands (A-H) and 8 channels per band, totaling 64 channels for strong anti-interference and flexible signal transmission
  • Flexible Power Adjustment: Supports 2 high-power levels (2000mW and 7000mW) and 0dBm P-mode, with convenient power switching via button operation (4-second press to enter, short press to adjust)
  • Wide Voltage Adaptation: 7-26V input voltage range, compatible with various drone power supply systems for strong versatility
