Specifications
Brand Name :
Kimghz technology
Model Number :
KH-ALV3304AC
Certification :
CE
Place of Origin :
Original/CHINA
MOQ :
10 Pieces
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000pieces/month
Delivery Time :
3-8days
Packaging Details :
International Standard Packing
Model :
KH-ALV3304AC
RF Power :
4W
Protocol :
IRC- Tramp
Channels :
64CH
Frequency Range :
3.3GHz
Input Voltage :
7-26V
Weight :
40.4g
Dimensions :
50*36*16mm
Description

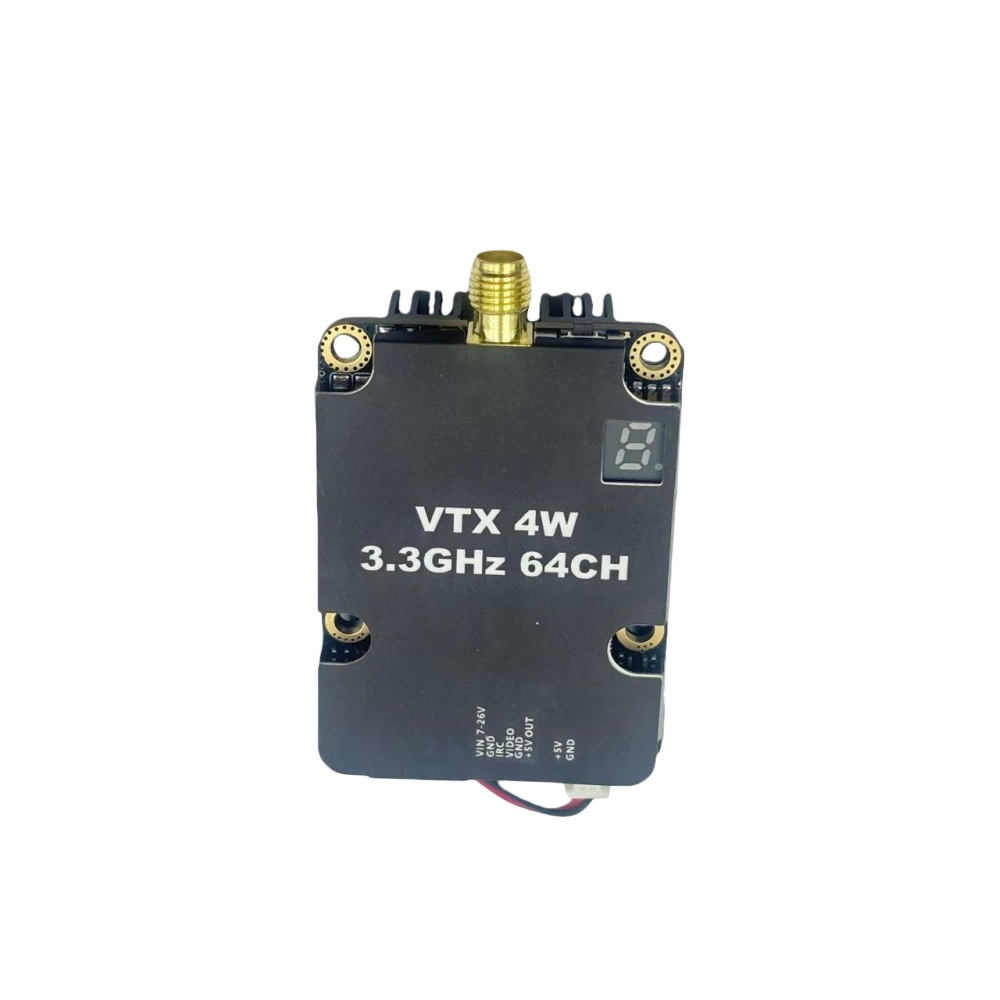

Compact 64CH FPV VTX (Pit/2W/4W) with 7-26V Input, IRC & Universal Connectors for Mini Drones
Designed exclusively for lightweight mini drones and micro FPV setups, this compact VTX module packs powerful performance into a small footprint. It supports a wide input voltage range of 7–26V (6S battery suggested for steady operation) and delivers a stable 5V output to power tiny cameras and peripherals. Equipped with 64 transmission channels and three adjustable power modes (Pit, 2W, 4W), it adapts to indoor micro-racing and outdoor short-range flights with ease. With optimized low power consumption (1.34A at 12V, 0.64A at 25.2V), it avoids draining the limited battery capacity of mini drones. The module also features integrated IRC functionality, standard SMA antenna connectors, JST-6Pin cable ports, and 30.5*30.5mm mounting holes—ensuring it fits perfectly in compact drone frames without adding excess weight.
Technical Specifications
Brand Name Kimghz technology
Model Number KH-ALV3304AC
Origin China
Frequency 3.3GHz
Power Output Pit/2W/4W
Channels 64CH
Power Supply 7-26V
Protocol IRC
Frequency Range 3060MHz-3500MHz
Product Overview
This drone FPV VTX (Video Transmitter) is designed to enhance long-range FPV (First-Person View) flight experiences, integrating key features for reliable and flexible performance.
Compact 64CH FPV VTX (Pit/2W/4W) with 7-26V Input, IRC & Universal Connectors for Mini DronesCompact 64CH FPV VTX (Pit/2W/4W) with 7-26V Input, IRC & Universal Connectors for Mini DronesCompact 64CH FPV VTX (Pit/2W/4W) with 7-26V Input, IRC & Universal Connectors for Mini DronesCompact 64CH FPV VTX (Pit/2W/4W) with 7-26V Input, IRC & Universal Connectors for Mini Drones
Performance Test Results
Compact 64CH FPV VTX (Pit/2W/4W) with 7-26V Input, IRC & Universal Connectors for Mini Drones
Key Advantages
  • Mini-drone Optimized Efficiency: Low power consumption matches the limited battery capacity of micro drones, extending flight time without sacrificing signal quality.
  • Space-saving Installation: 30.5*30.5mm standard mounting holes fit snugly in compact frames, ideal for 1S–3S mini FPV builds and micro racing drones.
  • Plug-and-play Compatibility: Universal SMA and JST-6Pin connectors work with most mini FPV cameras and transmitters, eliminating the need for custom wiring.
