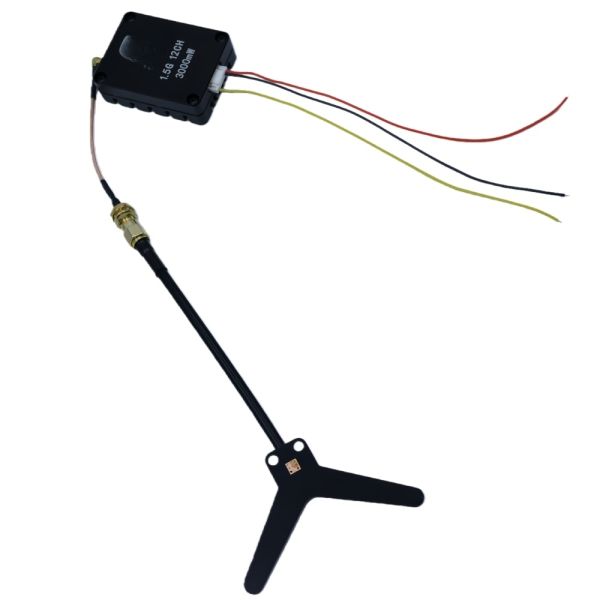

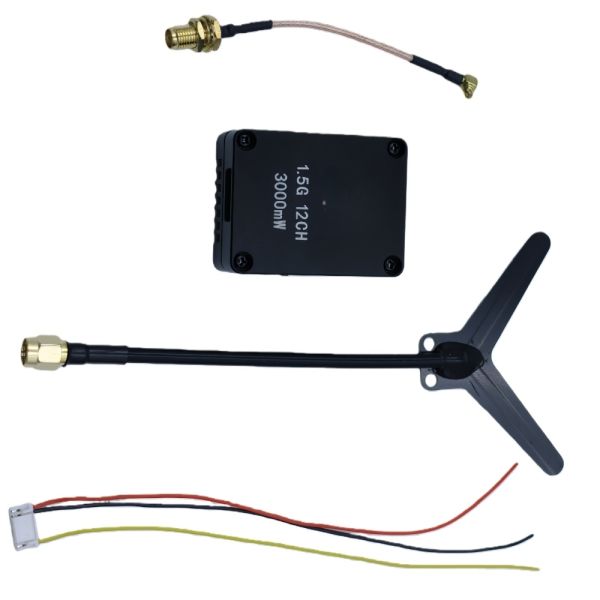

1.5GHz Analog Video Transmitter 12 Channels 4W RF Output For Remote Surveillance
1.5GHz Analog Video Transmitter 12 Channels 4W RF Output For Remote Surveillance
1.5GHz Analog Video Transmitter 12 Channels 4W RF Output For Remote Surveillance
1.5GHz Analog Video Transmitter 12 Channels 4W RF Output For Remote Surveillance
1.5GHz Analog Video Transmitter 12 Channels 4W RF Output For Remote Surveillance
1.5GHz Analog Video Transmitter 12 Channels 4W RF Output For Remote Surveillance
1.5GHz Analog Video Transmitter 12 Channels 4W RF Output For Remote Surveillance
1.5GHz Analog Video Transmitter 12 Channels 4W RF Output For Remote Surveillance
1.5GHz Analog Video Transmitter 12 Channels 4W RF Output For Remote Surveillance
1.5GHz Analog Video Transmitter 12 Channels 4W RF Output For Remote Surveillance
1.5GHz Analog Video Transmitter 12 Channels 4W RF Output For Remote Surveillance
1.5GHz Analog Video Transmitter 12 Channels 4W RF Output For Remote Surveillance
Specifications
Brand Name :
Kimghz technology
Model Number :
KH-1540T
Certification :
CE
Place of Origin :
Original/CHINA
MOQ :
10 Pieces
Supply Ability :
10000pieces/month
Delivery Time :
3-8days
Packaging Details :
International Standard Packing
Price :
56$-399$
Model :
KH-1540T
Frequency :
1.5GHz
Channels :
12CH
Power :
4W (200MW 400MW 800MW 1600MW 4000MW )
Protocol :
IRC- Tramp
Input Voltage :
7-32V
Weight :
30g
Dimensions :
50*38*15mm
Description
Powerful 1.5GHz Video Transmitter with 11 Channels and 4W Max RF Output for High-Performance UAVs and Remote Surveillance
Product Overview

A 1.5GHz Video Transmitter delivering 4W max RF power (adjustable via 200mW/400mW/800mW/1600mW/4000mW modes), paired with 11 channels and a 1405-1680MHz frequency range. Its 7-32V wide-voltage design balances high-power long-range transmission (up to 2+ km) with energy-efficient short-range operation, ideal for UAVs, remote surveillance, and outdoor broadcast systems.

1.5GHz Analog Video Transmitter 12 Channels 4W RF Output For Remote Surveillance1.5GHz Analog Video Transmitter 12 Channels 4W RF Output For Remote Surveillance


Technical Specifications
Specification Details
Brand Name XH
Model Number KH-1540T
Frequency 1.5GHz
Power Output 4 Watt (adjustable: 200MW, 400MW, 800MW, 1600MW, 4000MW)
Channel 11CH
Power Supply 7-28V
Protocol IRC-Tramp
Frequency Range 1405MHz - 1680MHz
TEST PART
1.5GHz Analog Video Transmitter 12 Channels 4W RF Output For Remote Surveillance
Key Features

· 4W Peak Power with Precision Tuning: Switch between 200mW (battery-saving short links) and 4W (max coverage) to adapt to terrain—1.5GHz’s lower frequency minimizes signal loss through obstacles like foliage or urban structures.

· 11-Channel Flexibility: 11 pre-tuned channels reduce cross-interference in dense environments, ensuring stable video integrity for multi-device networks.

· Universal Power Compatibility: 7-32V input works with lithium batteries, solar panels, or vehicle power, enabling deployment in off-grid or mobile scenarios (e.g., drone fleets, field monitoring).
