12V Fpv Long Range Vtx Compact Real Time Advanced With Multi Channel
12V Fpv Long Range Vtx Compact Real Time Advanced With Multi Channel
Specifications
Brand Name :
XINHU
Model Number :
ALPHA 5
Certification :
CE
Place of Origin :
Original/CHINA
MOQ :
10 Pieces
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000pieces/month
Delivery Time :
3-8days
Packaging Details :
International Standard Packing
Model :
ALPHA 5
Frequency Band :
5.8GHz
Power :
5 Watt
Channels :
80CH
Features :
Smart audio/Built-in cooling fan+heat sink
Input Voltage :
12V to 28V
Range :
5W (25mW/1W/2W/3W/5W adjustable)
Color :
Black
Dimensions :
68*36*15mm, 30.5*30.5mm (hole)
Weight :
48g (excluding antenna )
Price :
56$-399$
Description

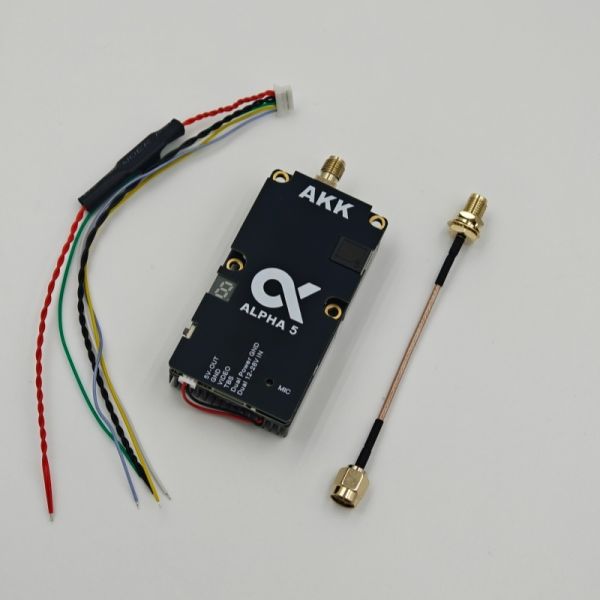

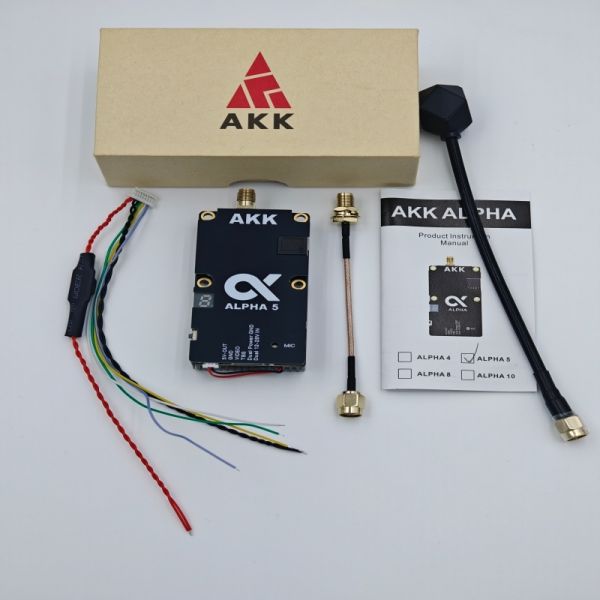

Powerful AKK ALPHA 5 5.8GHz 5W Video Transmitter
80CH with Cooling Fan - ALPHA 5 Stable Signal VTX
Technical Specifications
Specification Details
Band Name AKK
Model Number ALPHA 5
Frequency 5.8GHz
Power Output 5 Watt
Channel 80CH
Power Supply 12V to 28V
Protocol Smart audio/Built-in cooling fan+heatsink
Frequency Range 4990-5945MHz
Product Overview
The AKK ALPHA 5 5W VTX (Alpha5 5W Wireless Video Transmitter) stands out as a top-tier pick for drone racing lovers. This compact yet powerful transmitter sends real-time footage from your drone’s camera to FPV goggles or monitors through the 5.8GHz band, letting pilots enjoy sharp, uninterrupted flight visuals. Dive into immersive FPV sessions with steady, low-delay transmission that holds up well in crowded or obstacle-heavy environments. The ALPHA 5’s strong signal stability turns it into a must-have “visual extension” for anyone competing in drone racing or chasing dynamic aerial shots.
12V Fpv Long Range Vtx Compact Real Time Advanced With Multi Channel12V Fpv Long Range Vtx Compact Real Time Advanced With Multi Channel

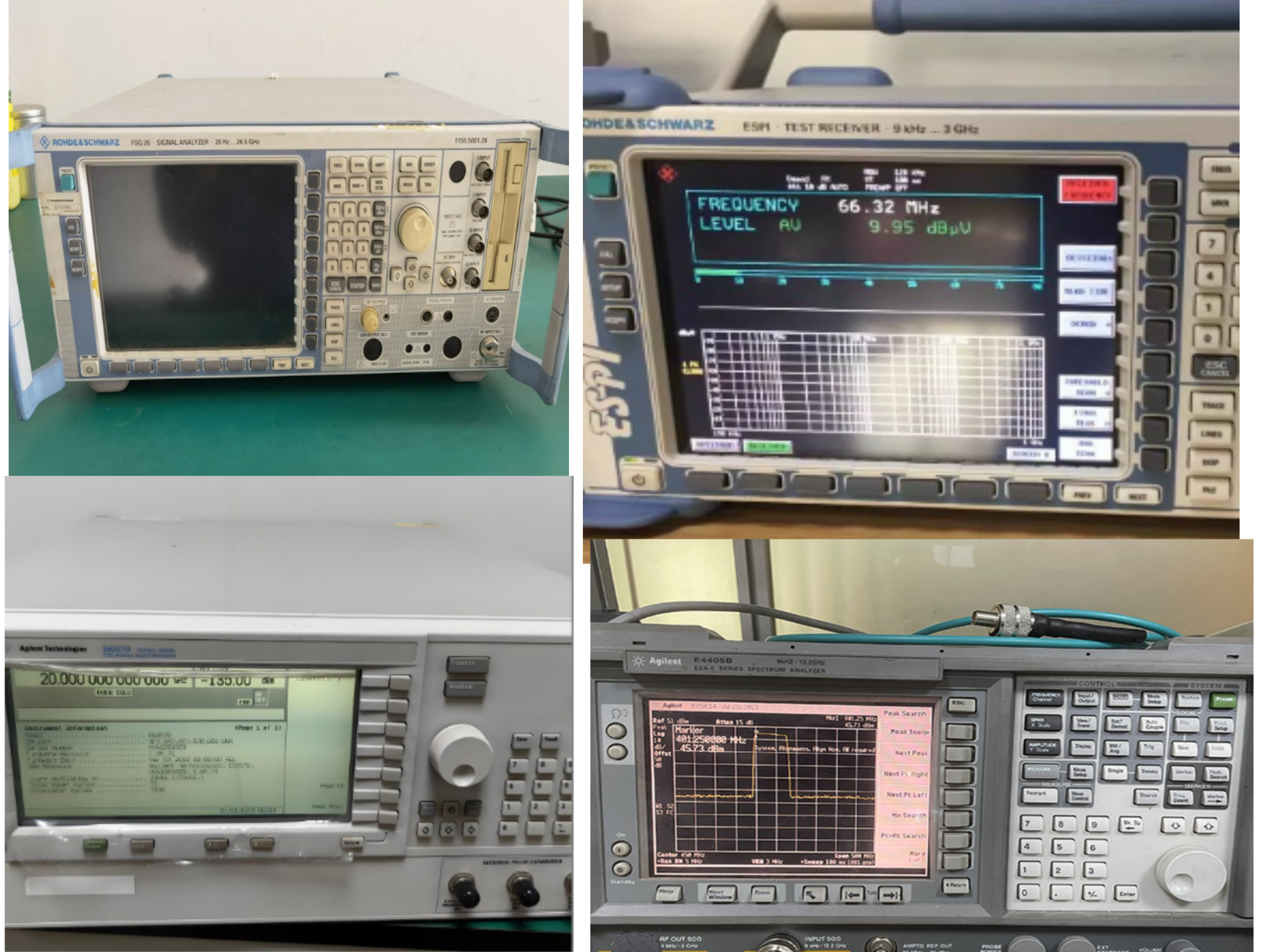

Test Part

12V Fpv Long Range Vtx Compact Real Time Advanced With Multi Channel

Key Advantages
  • Superior 5.8GHz Performance - Offers wider transmission bandwidth and better interference resistance compared to 4.3GHz systems
  • Multi-Channel Flexibility - 80-channel support allows quick switching to avoid signal conflicts
  • High Power Output - 5W transmission power ensures strong, stable signal coverage
  • Advanced Cooling System - Built-in fan and heatsink maintain optimal operating temperatures
  • Wide Voltage Range - Compatible with 12V to 28V power systems for versatile installation
  • Smart Audio Support - Enables convenient control and configuration
The ALPHA 5 excels in urban environments and areas with electronic interference, making it ideal for both racing and aerial photography applications where clear, uninterrupted video feed is critical for precise flight control.
