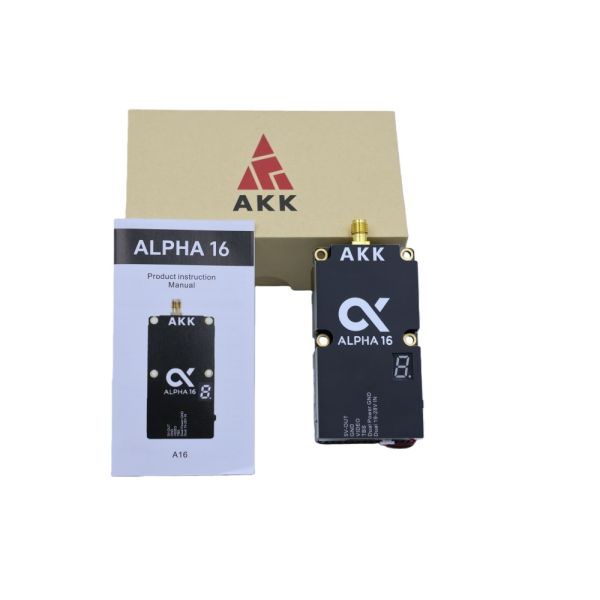

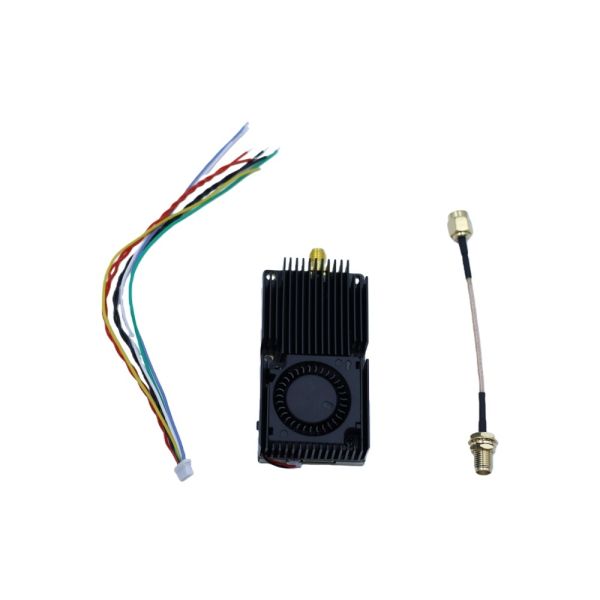

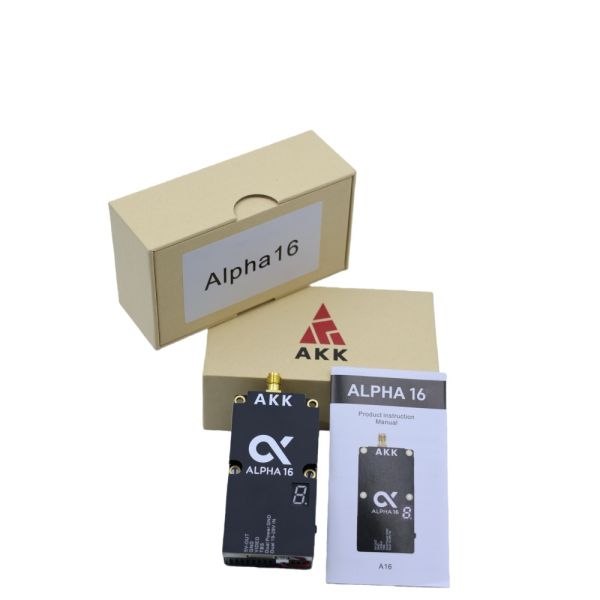

96CH Vtx Fpv Transmitter Fpv Vtx Long Range 19-28V 16W Adjustable
96CH Vtx Fpv Transmitter Fpv Vtx Long Range 19-28V 16W Adjustable
96CH Vtx Fpv Transmitter Fpv Vtx Long Range 19-28V 16W Adjustable
96CH Vtx Fpv Transmitter Fpv Vtx Long Range 19-28V 16W Adjustable
96CH Vtx Fpv Transmitter Fpv Vtx Long Range 19-28V 16W Adjustable
96CH Vtx Fpv Transmitter Fpv Vtx Long Range 19-28V 16W Adjustable
96CH Vtx Fpv Transmitter Fpv Vtx Long Range 19-28V 16W Adjustable
96CH Vtx Fpv Transmitter Fpv Vtx Long Range 19-28V 16W Adjustable
Specifications
Brand Name :
XINHU
Model Number :
ALPHA 16
Certification :
CE
Place of Origin :
Original/CHINA
MOQ :
10 Pieces
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000pieces/month
Delivery Time :
3-8days
Packaging Details :
International Standard Packing
Model :
ALPHA 16
Input Voltage :
19V to 28V
Frequency Range :
5.8GHz
Channels :
96CH
Features :
Smart Audio, Pit Mode, Adjustable Power Output
Power Output :
16W (25mW/1W/3W/5 W/8W/1 6W adjustable)
Color :
Black
Weight :
56g (excluding antenna )
Dimensions :
68*36*15mm, 30.5*30.5mm (hole)
Price :
56$-399$
Description
AKK ALPHA 4: 5.8GHz 4W Professional FPV Transmitter – Cool Under Pressure
Technical Specifications
Band Name AKK
Model Number ALPHA 16
Frequency 5.8GHz
Power Output 16 Watt
Channel 96CH
Power Supply 19V to 28V
Protocol Smart audio/Built-in cooling fan+heatsink
Frequency Range 4990-5945MHz
Crafted for pro drone pilots and tournament racers, this high-performance VTX features adjustable power, minimal lag, and rapid cooling to excel in extreme FPV scenarios.
Specs
  • Manufacturer: AKK
  • Model: ALPHA 4
  • Frequency: 5.8GHz (4990-5945MHz)
  • Power: 4W (with 1W/2W/3W adjustment)
  • Channels: 80
  • Voltage: 12-28V
  • Cooling: Integrated fan + heatsink; Smart Audio protocol
Key Features
  • Adaptable power levels for varied flying needs
  • 80 channels for flexible frequency selection
  • FCC/CE-certified chip for dependable operation
  • 18ms ultra-low latency for real-time control
  • Premium image quality enhancing FPV experience
  • 38g compact design (with mounts) in aluminum with optimized cooling fins
Professional Performance The ALPHA 4 is more than a transmitter – it’s an FPV engine built for extremes. Its aluminum housing dissipates heat efficiently while staying lightweight, delivering stable 4W power to overcome traditional high-power limitations.
Note: Avoid 4W mode in signal-dense areas to prevent interference. Beginners should use filters and start with lower settings.
Advanced Cooling Tech Leading 2025 FPV innovation: the ALPHA 4 proves high power and stability coexist. Its fan + heatsink system ensures reliable performance even at max output.
