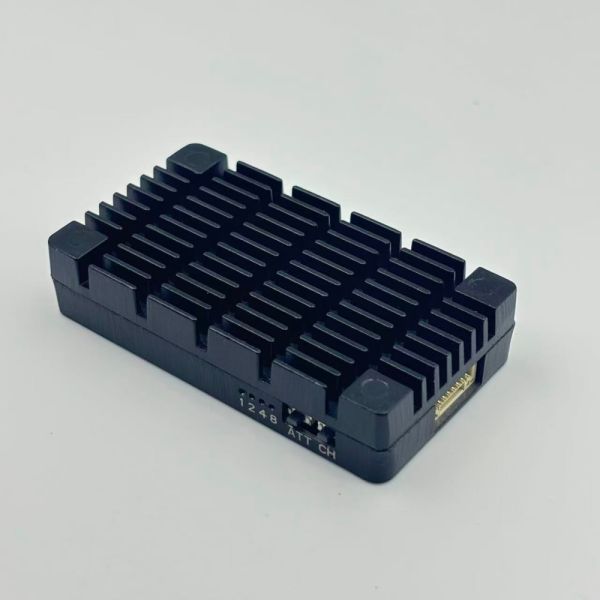

3.7GHZ 15CH Analog Video Transmitter 8-10W With Adjustable Power IRC Tramp Protocol
3.7GHZ 15CH Analog Video Transmitter 8-10W With Adjustable Power IRC Tramp Protocol
3.7GHZ 15CH Analog Video Transmitter 8-10W With Adjustable Power IRC Tramp Protocol
3.7GHZ 15CH Analog Video Transmitter 8-10W With Adjustable Power IRC Tramp Protocol
3.7GHZ 15CH Analog Video Transmitter 8-10W With Adjustable Power IRC Tramp Protocol
3.7GHZ 15CH Analog Video Transmitter 8-10W With Adjustable Power IRC Tramp Protocol
3.7GHZ 15CH Analog Video Transmitter 8-10W With Adjustable Power IRC Tramp Protocol
3.7GHZ 15CH Analog Video Transmitter 8-10W With Adjustable Power IRC Tramp Protocol
Specifications
Brand Name :
XH
Model Number :
KH-70S10T
Certification :
CE
Place of Origin :
Original/CHINA
MOQ :
10 Pieces
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
10000pieces/month
Delivery Time :
3-8days
Packaging Details :
International Standard Packing
Model :
KH-70S10T
Frequency Range :
3705MHz-4080MHz
Channel :
15CH
Power :
Power 8-10W(200MW 400MW 1W 4W 8-10W)
Protocol :
IRC-Tramp
Weight :
60g
Dimension :
L*W*H 68*38*15mm
Product Type :
Transmitter
Operating Temperature :
0-50°C
Antenna Type :
Omni-directional
Compatibility :
NTSC/PAL
Video Input :
Analog
Video Output :
Analog
Price :
56$-399$
Description
3.7GHZ 8-10W 15CH Video Transmitter with Adjustable Power and IRC-Tramp Protocol for Signal Transmission in FPV Racing

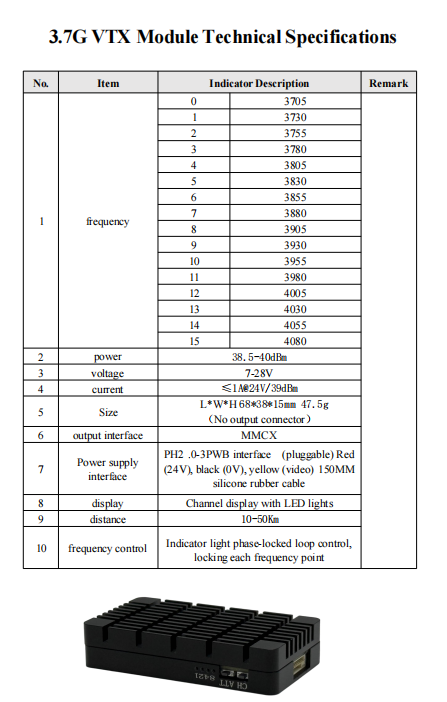

Technical Specifications
Band Name XH
Model Number KH-3730T
Frequency 3.7GHZ
Power

8-10W(200MW 400MW 1W 4W 8-10W)
Channel 15CH
Power Supply 7-32V
Protocol IRC-Tramp
Frequency Range 3705MHz-4080MHz

3.7GHZ 15CH Analog Video Transmitter 8-10W With Adjustable Power IRC Tramp Protocol

3.7GHZ 15CH Analog Video Transmitter 8-10W With Adjustable Power IRC Tramp Protocol

Product Overview

Built for tactical and military operations, this 7.0GHz Video Transmitter offers 8-10W adjustable power, 7 channels, and a 6.11-7.2GHz range with 7-32V rugged power compatibility. It ensures secure, long-range video transmission for reconnaissance drones, mobile command units, and battlefield surveillance—thriving in high-interference, austere environments.

3.7GHZ 15CH Analog Video Transmitter 8-10W With Adjustable Power IRC Tramp Protocol

3.7GHZ 15CH Analog Video Transmitter 8-10W With Adjustable Power IRC Tramp Protocol
TEST PART
3.7GHZ 15CH Analog Video Transmitter 8-10W With Adjustable Power IRC Tramp Protocol

Key Advantages

  • Tactical-Grade Long-Range Performance: 8-10W RF power penetrates battlefield obstacles (e.g., terrain, structures) and resists jamming, delivering reliable feeds for real-time situational awareness in combat zones.
  • Stealth & Efficiency Modes: Switch between low-power (200mW/400mW for covert operations) and high-power (8-10W for long-range reconnaissance) to balance stealth with coverage, critical for mission security.
  • 7 Channels for Secure Frequency Hopping: 7 selectable channels enable rapid frequency switching to avoid detection or interference, supporting secure communication between tactical drones and ground units.
  • Rugged Power Compatibility: 7-32V input works with military vehicle batteries, field generators, or portable power packs, ensuring operation in remote theaters with no grid access—ideal for expeditionary forces.
