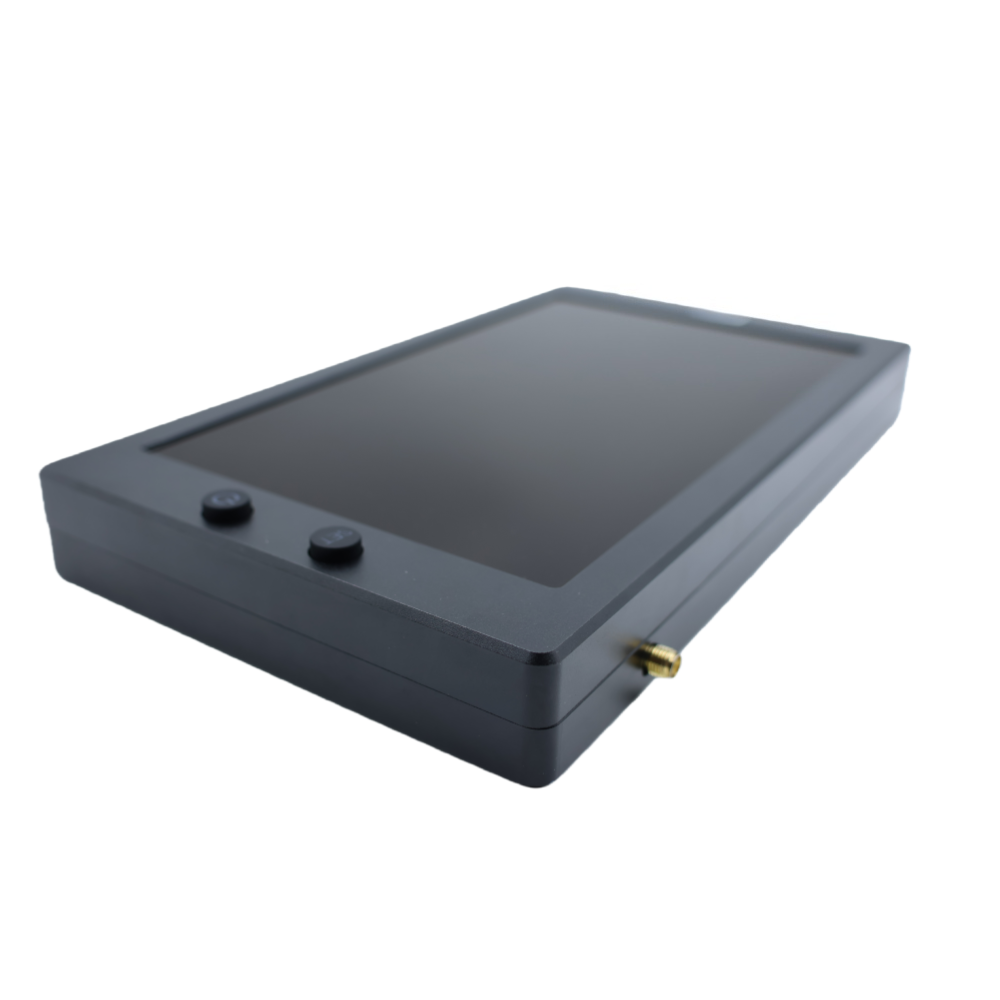

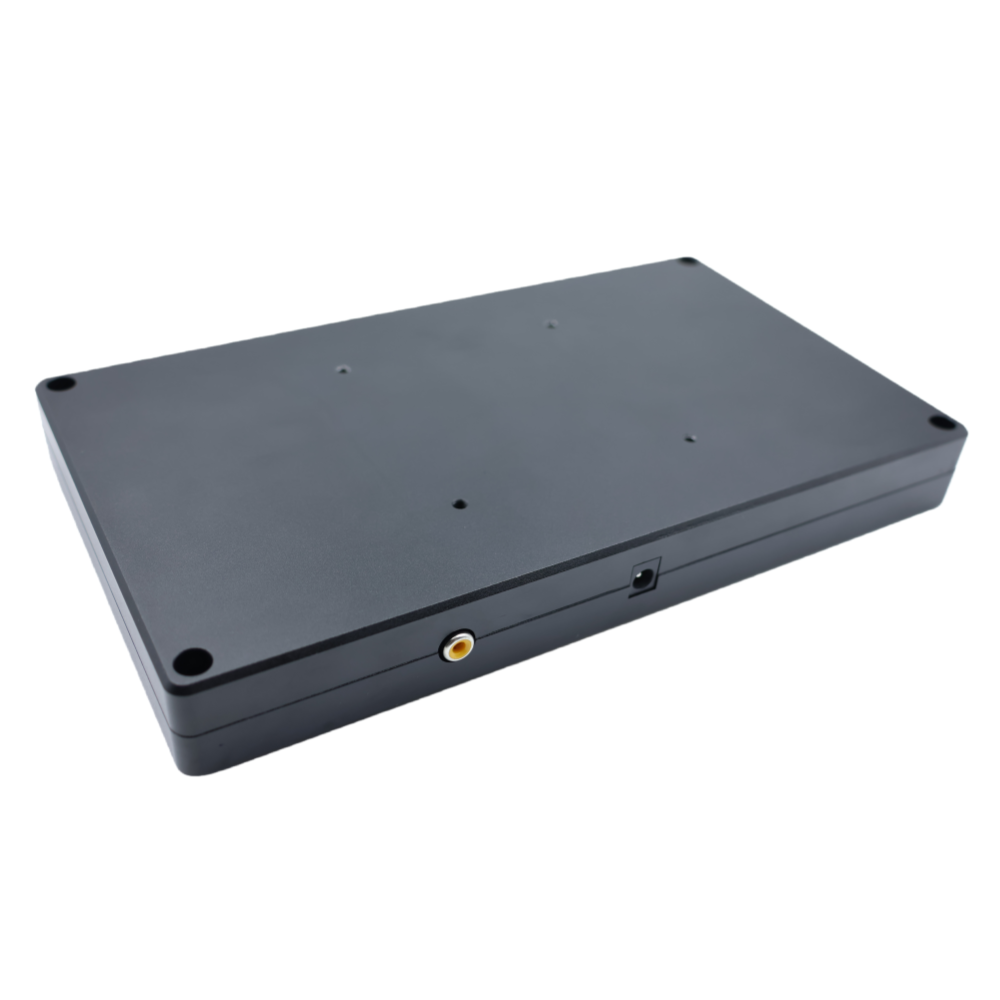

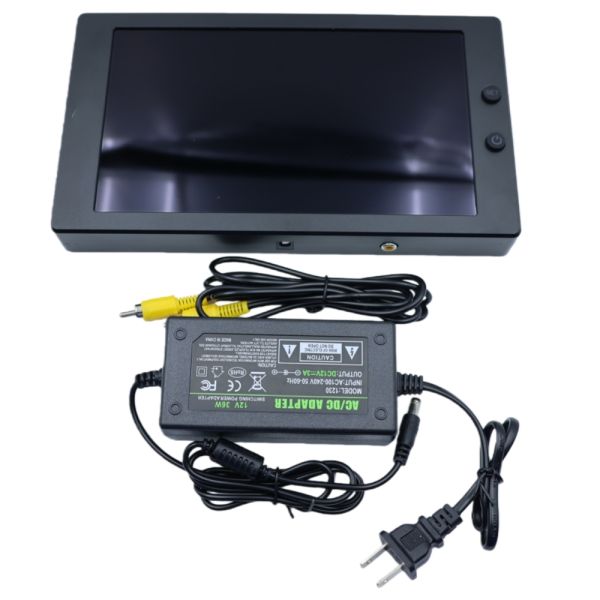

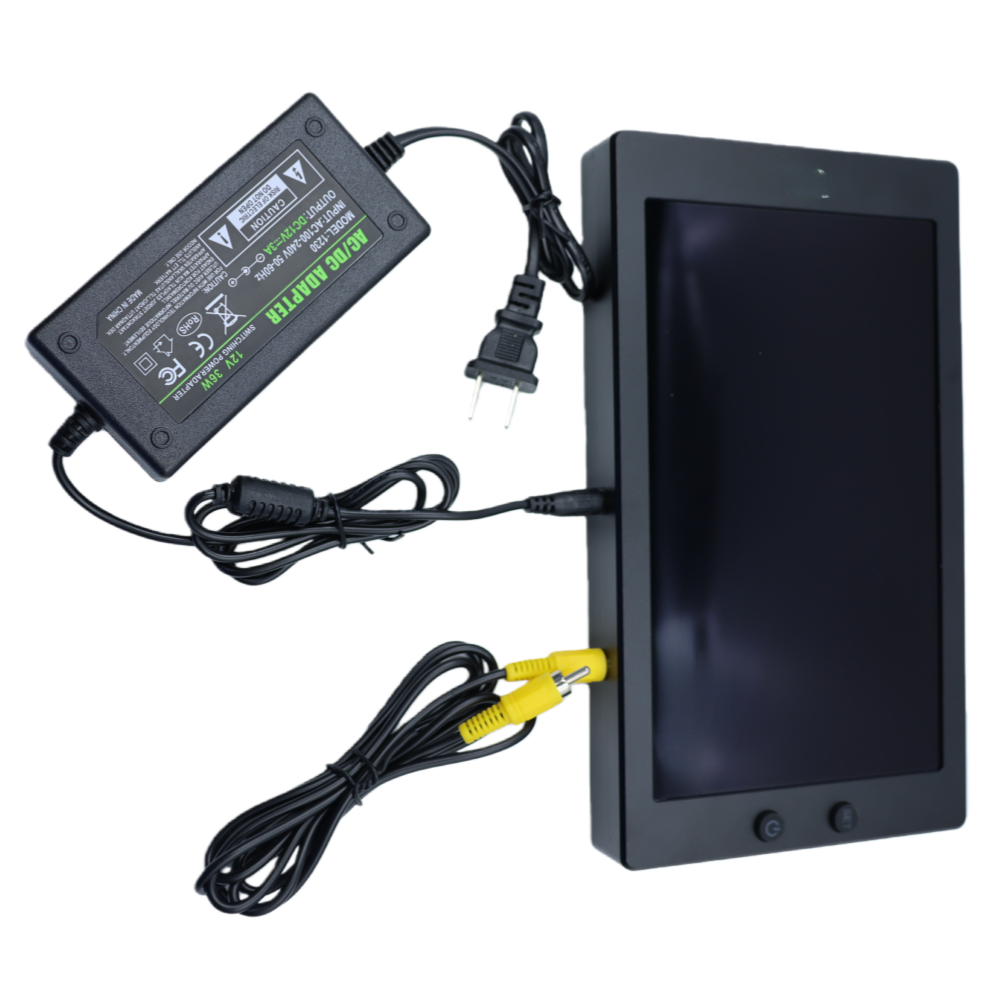

High Performance Full Band Receiver 500MHz-8GHz DC 12-28V For Security
High Performance Full Band Receiver 500MHz-8GHz DC 12-28V For Security
High Performance Full Band Receiver 500MHz-8GHz DC 12-28V For Security
High Performance Full Band Receiver 500MHz-8GHz DC 12-28V For Security
High Performance Full Band Receiver 500MHz-8GHz DC 12-28V For Security
High Performance Full Band Receiver 500MHz-8GHz DC 12-28V For Security
High Performance Full Band Receiver 500MHz-8GHz DC 12-28V For Security
High Performance Full Band Receiver 500MHz-8GHz DC 12-28V For Security
High Performance Full Band Receiver 500MHz-8GHz DC 12-28V For Security
High Performance Full Band Receiver 500MHz-8GHz DC 12-28V For Security
Specifications
Brand Name :
XH
Model Number :
KH-VRX05-800
Certification :
CE
Place of Origin :
Original/CHINA
MOQ :
10 Pieces
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
100000pieces/month
Delivery Time :
3-8days
Packaging Details :
International Standard Packing
Power :
DC 12-28V
Weight :
1180g
Dimension :
244*193*30mm
frequency band :
500MHz-8GHz
scanning speed :
1.5s full bandwidth
display screen :
30CM 1024*600IPS
Price :
56$-399$
Description

High-performance FPV Video Receiver with 500MHz-8GHz ultra-wideband coverage and 1.5-second full-bandwidth scanning

A high-performance Video Receiver with 500MHz–8GHz ultra-wideband coverage, designed for security and surveillance professionals. Featuring 1.5-second full-bandwidth scanning, SMA antenna compatibility, and dual 3.5mm AV-OUT/RCA video interfaces, it rapidly locates and demodulates video signals in complex RF environments. Its 12–28VDC low-power design (≤1A) integrates seamlessly with security control rooms or mobile monitoring units, ideal for counter-surveillance, signal tracking, or law enforcement operations.

Technical Specifications
Band Name XH
Model Number KH-VRX05-800
Frequency
500MHz-8GHz
battery
built-in 3S 6000mAh lithium polymer battery
battery life
approximately 3–5 hours (depending on screen
brightness and scan settings)
Power Supply
DC12-28V & ≤1A
antenna interface
SMA Type (Recommended for use with broadband
omnidirectional or directional antennas)
scanning speed
1.5s full bandwidth

Product Overview

High Performance Full Band Receiver 500MHz-8GHz DC 12-28V For SecurityHigh Performance Full Band Receiver 500MHz-8GHz DC 12-28V For SecurityHigh Performance Full Band Receiver 500MHz-8GHz DC 12-28V For SecurityHigh Performance Full Band Receiver 500MHz-8GHz DC 12-28V For Security
TEST PART
High Performance Full Band Receiver 500MHz-8GHz DC 12-28V For Security

Key Advantages

· 500MHz–8GHz Pan-Band Coverage: Captures signals across VHF, UHF, and microwave bands, eliminating blind spots when monitoring analog/digital video transmitters (e.g., hidden cameras, drone feeds, or legacy CCTV systems).

· 1.5s Rapid Scanning: Scans the entire 7.5GHz bandwidth in 1.5 seconds—3x faster than conventional receivers—enabling security teams to pinpoint unauthorized video transmission sources in real time.

· Dual Video Outputs: Simultaneously connects to monitors via 3.5mm AV (portable displays) and RCA (desktop monitors), supporting multi-operator workflows in command centers.
