Digital Vortex Flow Meter for Gas and Oil with Medium Temperature -40-450C
Digital Vortex Flow Meter for Gas and Oil with Medium Temperature -40-450C
Specifications
Brand Name :
yunyi
Model Number :
LUGB
Certification :
ce
Place of Origin :
china
MOQ :
1
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
10000pcs/month
Delivery Time :
7days
name :
china cheap digital vortex flow meter
Accuracy :
±1%R,±1.5%R,±1FS;Insert type:±2.5%R,±2.5%FS
Range :
1:6~1:30
loss coefficient :
In line with the JB / T9249standard Cd = 2.4
Allowable vibration :
Piezoelectric type:0.2g Capacitance type:1.0~2.0g
Description

Description china cheap digital vortex flow meter

China cheap digital vortex flow meter is a kind of intelligent integration by using the latest international digital integrated technology and according to the actual needs of domestic industrial automatic control research and development of a new generation of high quality intelligent instrument.Piezoelectric crystals as detecting element stress testing new type intelligent turbine flow meter.

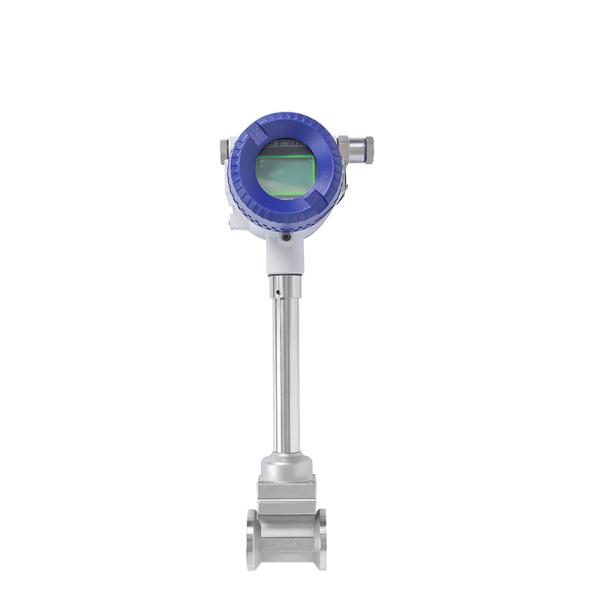

Detailed Images china cheap digital vortex flow meter gas oil flow meter

Digital Vortex Flow Meter for Gas and Oil with Medium Temperature -40-450CDigital Vortex Flow Meter for Gas and Oil with Medium Temperature -40-450C

Digital Vortex Flow Meter for Gas and Oil with Medium Temperature -40-450CDigital Vortex Flow Meter for Gas and Oil with Medium Temperature -40-450C

Technical parameter china cheap digital vortex flow meter gas oil flow meter

Nominal diameter(mm) 25,40,50,65,80,100,125,150,200,250,300,(300~1000 Insert type)
Nominal pressure (MPa) DN25-DN200 4.0(>4.0 Supply agreement),DN250-DN300 1.6(>1.6 Supply agreement)
Medium temperature(℃)

Piezoelectric type:-40~260,-40~320;Capacitance type

: -40~300, -40~400,-40~450(Supply agreement)
Body material 1Cr18Ni9Ti,(Other materials supply agreement)
Allowable vibration acceleration Piezoelectric type:0.2g Capacitance type:1.0~2.0g
Accuracy ±1%R,±1.5%R,±1FS;Insert type:±2.5%R,±2.5%FS
Range of 1:6~1:30
Power supply voltage Sensor:+12V DC,+24V DC;Transmitter:+12V DC ,+24V DC;Battery type:3.6V Battery
Output signal Square wave pulse ( not including the battery power supply type ): high level or low level5V,1V; current: 4~ 20mA
Pressure loss coefficient In line with the JB / T9249standard Cd = 2.4
Explosion proof marks Intrinsic safety type: Exd IA CT2-T5 flameproof type: Exd CT2-T5
Protection grade The ordinary IP65 diving type IP68
Environmental conditions Temperature - 20~ 55,5% ~ 90% of relative humidity, atmospheric pressure is 86 ~ 106kPa
Applicable medium Gas, liquid, steam
Transmission distance Three wire system pulse output type: < 300m, two line standard current output type (4 ~ 20mA ): load resistance less than 750ohm

Features electric steam v ortex flowmeter gas oil flow meter

1.Two-wire and three -wire system.

2.large range

3.Can be used to measure gas,steam and liquid.

4.EVC function is optional.
