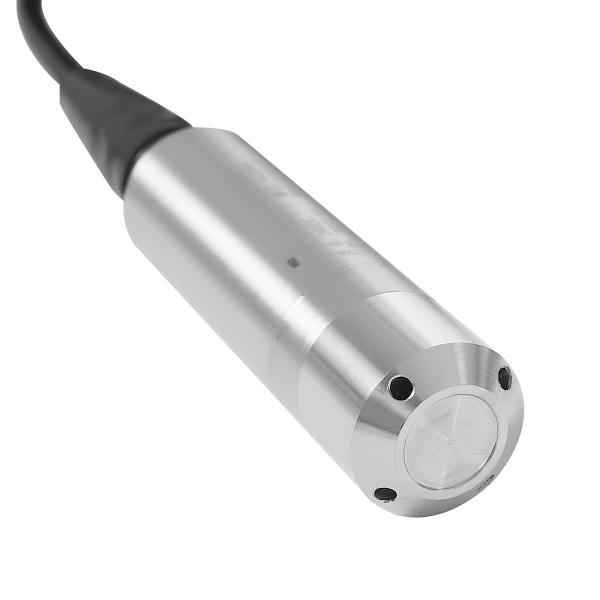

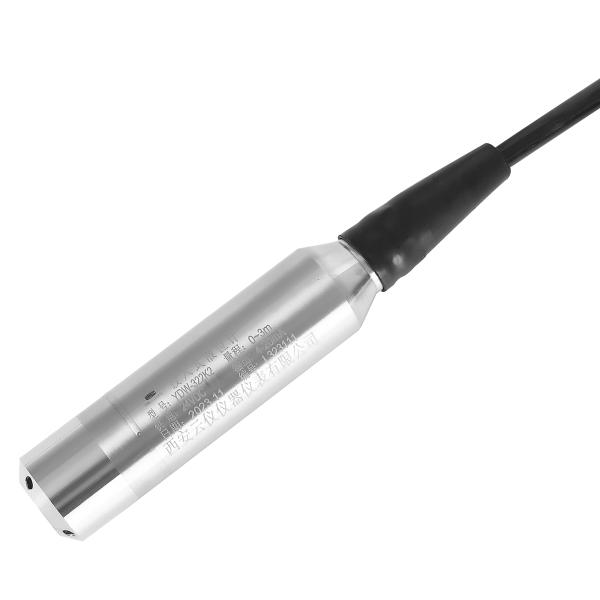

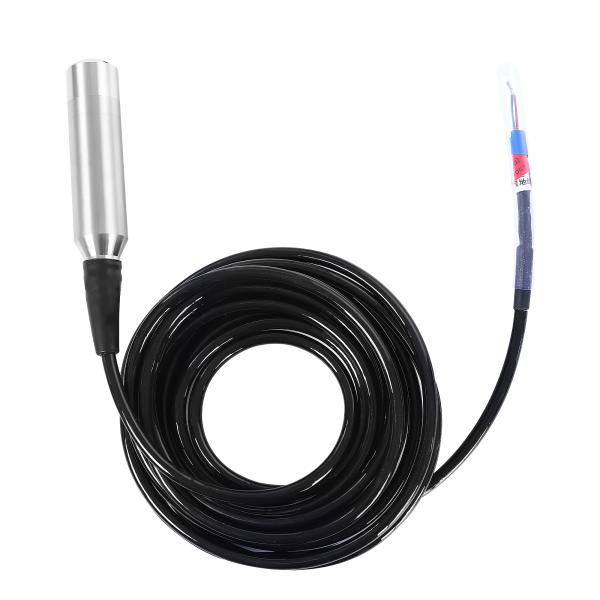

Submersible Pressure Transmitter for Harsh Mining Marine Level Measurement Applications Low-Maintenance No Moving Parts
Submersible Pressure Transmitter for Harsh Mining Marine Level Measurement Applications Low-Maintenance No Moving Parts
Submersible Pressure Transmitter for Harsh Mining Marine Level Measurement Applications Low-Maintenance No Moving Parts
Submersible Pressure Transmitter for Harsh Mining Marine Level Measurement Applications Low-Maintenance No Moving Parts
Submersible Pressure Transmitter for Harsh Mining Marine Level Measurement Applications Low-Maintenance No Moving Parts
Submersible Pressure Transmitter for Harsh Mining Marine Level Measurement Applications Low-Maintenance No Moving Parts
Specifications
Brand Name :
Yunyi
Model Number :
YD322
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$43.3~$59.3/p
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
200PCS/week
Delivery Time :
7 days
Packaging Details :
Carton box
Item :
Wastewater Level Sensor Submersible Level Transducer Submersible Level Transmitters
pressure medium :
liquid compatible stainless steel
pressure ranges :
0~0.5m~1 m H2O...300 m H2O
overload pressure :
150%FS
compensated temperature range :
-10~70°c
Input power :
10~36VDC
Protection grade :
IP68
Accuracy :
0.1%FS,0.25%FS,0.5%FS (standard)
Description

Wastewater Level Sensor Submersible Level Transducer Submersible Level Transmitters

Description of Wastewater Level Sensor Submersible Level Transducer Submersible Level Transmitters
Intelligent Submersible Level Transmitter for Diesel Fuel Tanks, Water Tanks, and Liquid Level Monitoring
This advanced transmitter integrates an isolation diaphragm oil-filled sensor and a high-performance MCU. It features automatic linearity correction and temperature drift compensation, with dual output options: digital output (HART protocol) and analog output.
Key Characteristics:
High precision and exceptional stability
Two-way communication for on-site diagnostics
Applications: Municipal power, water conservancy, metallurgy, petrochemical, and related industries.



Specification Wastewater Level Sensor Submersible Level Transducer Submersible Level Transmitters

pressure medium liquid compatible stainless steel
pressure ranges 0~0.5m~1 m H2O...300 m H2O
overload pressure 150%FS
output signal 4~20mA, 0.4 ~4.5V, 0~5V
accuracy 0.1%FS,0.25%FS,0.5%FS (standard)
load resistance RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output)
long term stability 0.2%FS/year
supply voltage 10~36VDC
compensated temperature range -10~70°c
operating temperature range -20~85°c
storage temperature range -40~125°c
temperature coefficient of zero ±0.015%FS/°c@25°c
temperature coefficient of span ±0.02%FS/°c@25°c
insulation resistance 100MΩ@ 500VDC
Pressure connection screw thread, throw-in type
Protection grade IP68
material of wetted part and housing 304SS or 316L
material of pressure membrane 316L
Response time 1ms

Product Wastewater Level Sensor Submersible Level Transducer Submersible Level Transmitters

1. Premium Signal Processing
Advanced circuit conditioning technology ensures operational stability and high-sensitivity measurement.
2. Extended Range Capability
Multiple range options with max. 200m H₂O column pressure measurement.
3. 316L Stainless Steel Isolation Diaphragm
Corrosion-resistant construction compatible with diverse media (fuels, chemicals, wastewater).
4. Flexible Configuration
Customizable output options and parameters for application-specific solutions.
5. Robust Electrical Protection
Integrated reverse polarity protection, overvoltage safeguard, and lightning/transient surge immunity (EN 61000-4-5).
6. Advanced Temperature Compensation
Laser-trimmed resistive compensation with field-adjustable zero & span calibration.
7. High Overload Tolerance
150% FS overload rating with EMC anti-interference design for harsh environments.


Submersible Pressure Transmitter for Harsh Mining Marine Level Measurement Applications Low-Maintenance No Moving PartsSubmersible Pressure Transmitter for Harsh Mining Marine Level Measurement Applications Low-Maintenance No Moving Parts
