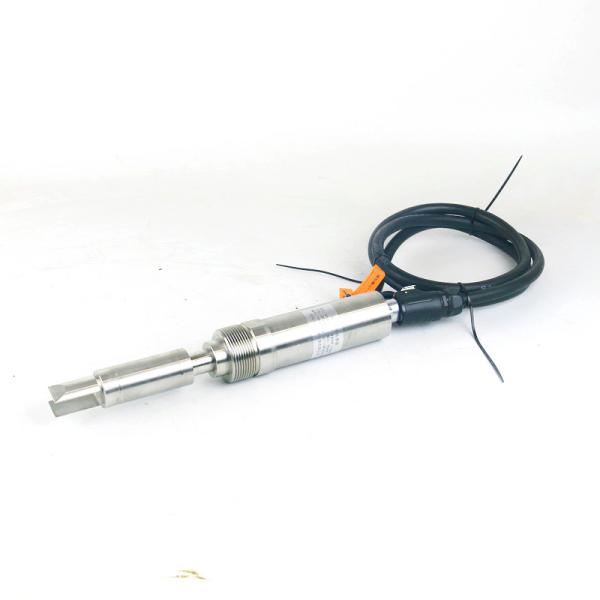

Good Quality Portable 4-20mA Micro Digital Milk Electronic Diesel Alcohol Oil Density Meter Sensor
Good Quality Portable 4-20mA Micro Digital Milk Electronic Diesel Alcohol Oil Density Meter Sensor
Good Quality Portable 4-20mA Micro Digital Milk Electronic Diesel Alcohol Oil Density Meter Sensor
Good Quality Portable 4-20mA Micro Digital Milk Electronic Diesel Alcohol Oil Density Meter Sensor
Specifications
Brand Name :
Yunyi
Model Number :
XY-886
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
860-950usd
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000/month
Delivery Time :
5-7 days
Packaging Details :
carton or wooden box
Name :
Good Quality Portable 4-20mA Micro Digital Milk Electronic Diesel Alcohol Oil Density Meter Sensor
Range :
0-3g / CM3 (3 /2.5/ 2 /1.5/ 1)
Output :
4-20 mA
Accuracy :
0.001 g / cc, with a resolution of 0.0001 g / cc
Insert depth :
125mm~2000mm
Display unit :
kg/cubic meter or g/cc
Work temperature :
-50℃ ~ +200℃
Fluid viscosity range :
0 – 20000 cP
Temperature coefficient :
0.1 kg/m3/℃
Built in temperature sensor :
PT100
Power supply :
20–28 VDC，35–45 mA
Process connection :
1.5"NPT threaded connections; din 50 PN40 and PN100 flange connections;
Description

Good Quality Portable 4-20mA Micro Digital Milk Electronic Diesel Alcohol Oil Density Meter Sensor

Typical application scenarios
Chemical/petrochemical: monitoring acid-base concentration and reaction liquid density.

Food and beverage: sugar content and alcohol content detection.

Pharmaceutical: liquid medicine ratio control.

Environmental protection: sludge concentration monitoring in wastewater treatment.

Measure range 0–3g/cm3 (0 – 3000 kg/m3)
Accuracy ±0.001g /cc (±1 kg/m3)
Operating temperature -50℃ ~ +200℃
Max work temperature 20MPa
Fluid viscosity range 0 – 20000 cP
Temperature coefficient 0.1 kg/m3/℃
Pressure influence Can be ignored
Built in temperature sensor PT100
Wetted part material Stainless steel, Hastelloy C22, manganese alloy 400, titanium alloy, etc.
Fork body coating Standard type, PTFE or electrolytic polishing
Power supply 20–28 VDC,35–45 mA
Analog signal output 4-20 mA, isolated, non self powered
Output accuracy(20℃) ±0.1%FS, ±0.05%FS
Output repeatability (-40~ 85℃) ± 0.05% FS
Process connection 1.5"NPT threaded connections; din 50 PN40 and PN100 flange connections;
Protection IP65

Good Quality Portable 4-20mA Micro Digital Milk Electronic Diesel Alcohol Oil Density Meter Sensor

Good Quality Portable 4-20mA Micro Digital Milk Electronic Diesel Alcohol Oil Density Meter Sensor
