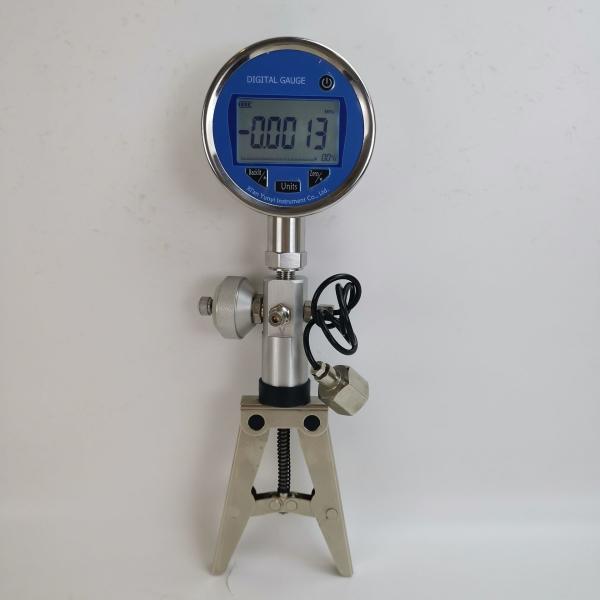

Factory Pressure Calibrater Gauge Calibration Pump Digital Portable Hydraulic Hand Pump Pressure Calibrator
Factory Pressure Calibrater Gauge Calibration Pump Digital Portable Hydraulic Hand Pump Pressure Calibrator
Factory Pressure Calibrater Gauge Calibration Pump Digital Portable Hydraulic Hand Pump Pressure Calibrator
Factory Pressure Calibrater Gauge Calibration Pump Digital Portable Hydraulic Hand Pump Pressure Calibrator
Specifications
Brand Name :
YunYi
Model Number :
Y039
Certification :
CE，ROHS
Place of Origin :
China
MOQ :
1
Price :
140~160 USD/set
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
100pcs/month
Delivery Time :
7days
Packaging Details :
Plastic box
Item :
Portable Handheld Pressure Pump
model number :
Y039
Range :
0-1.6Mpa
flexible hose connector :
M20*1.5 female
master gage connector :
1/4NPT male
Application :
offer pressure to pressure gauge
Warranty :
12 months
Package size :
250x150x150mm
Description

Factory Pressure Calibrater Gauge Calibration Pump Digital Portable Hydraulic Hand Pump Pressure Calibrator

Description

The vacuum pump (see diagram) consists of a buffer valve, a connector, a gas release valve, a cylinder, a piston rod and a handle, and a connecting hose. The M14*1.5 table connector installed on the top of the vacuum pump is connected to the vacuum gauge. When operating the vacuum pump, the bleed valve shall be tightened clockwise first, then the handle shall be gripped by hand, and the handle shall be repeatedly tightened and relaxed to make the piston rod reciprocate so that the vacuum pump will generate negative pressure.

Technical Parameters:

1. Output pressure: -0.088~1.6MPa(-0.88~16bar)

-0.088~2.0MPa(-0.88~20bar)

-0.088~2.5MPa(-0.88~25bar)

2. Work Environment: Temperature: 0~40℃

Relative Humidity: 5~95%

Specification

output pressure range

Y039: 0-1.6MPa

Y061: -0.1-0MPa

Y060: -25MPa

YFP-16: -0.088~1.6MPa(-0.88~16bar)

YFP-20: -0.088~2.0MPa(-0.88~20bar)

YFP-25: -0.088~2.5MPa(-0.88~25bar)
operating temperature -20~50C
operating relative humidity ~100%
flexible hose connector M20*1.5 female
master gage connector 1/4NPT male
dimensions 235×120×65 230 x 110 x 60
weight 0.6kg 0.5kg
Accessories 500 mm long plastic hose and a leatherette carrying bag
Outlet threads 1/4 NPT, or to custom request
Vernier-adjuster

micro-adjustable, volume control

Related products YFP20-0.1-2 MPA(-1--20bar)Pneumatic Vacuum Calibration Pumps Handpump Y039 Air Hand Pressure Calibrator Portable Handheld Pressure Pump

YFP16pneumatic (-1-16bar)

Y061 pneumatic (-1-0bar)

XYBS Hydraulic60 (0-600bar)

Y060 Hydraulic (0-250bar)

YFP25 pneumatic (-1-25bar)

Y039 pneumatic (0-16
