Digital Pressure Gauge Digital Manometer With Selectable Units Digital Manometer
Digital Pressure Gauge Digital Manometer With Selectable Units Digital Manometer
Digital Pressure Gauge Digital Manometer With Selectable Units Digital Manometer
Digital Pressure Gauge Digital Manometer With Selectable Units Digital Manometer
Digital Pressure Gauge Digital Manometer With Selectable Units Digital Manometer
Digital Pressure Gauge Digital Manometer With Selectable Units Digital Manometer
Specifications
Brand Name :
YUNYI
Model Number :
YK 100
Certification :
CE，ROHS
Place of Origin :
China
MOQ :
1pc
Price :
130~170 USD/pcs Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
500PCS/week
Delivery Time :
7days
Packaging Details :
Carton box
Product Name :
Digital Pressure Gauge Digital Manometer With Selectable Units Digital Manometer
Pressure Range :
(-1~0) bar, (0~700) bar
Analog output :
RS485
model number :
YK100
Power supply :
3.6V lithium battery
Application Temp :
-10 ℃ ~ 80 ℃
Display :
5 digits LED
Accuracy :
±0.5%F.S, ±0.2%F.S
Connection :
M20*1.5 male
Description

Digital Pressure Gauge Digital Manometer With Selectable Units Digital Manometer

Description Digital Pressure Gauge Digital Manometer With Selectable Units Digital Manometer

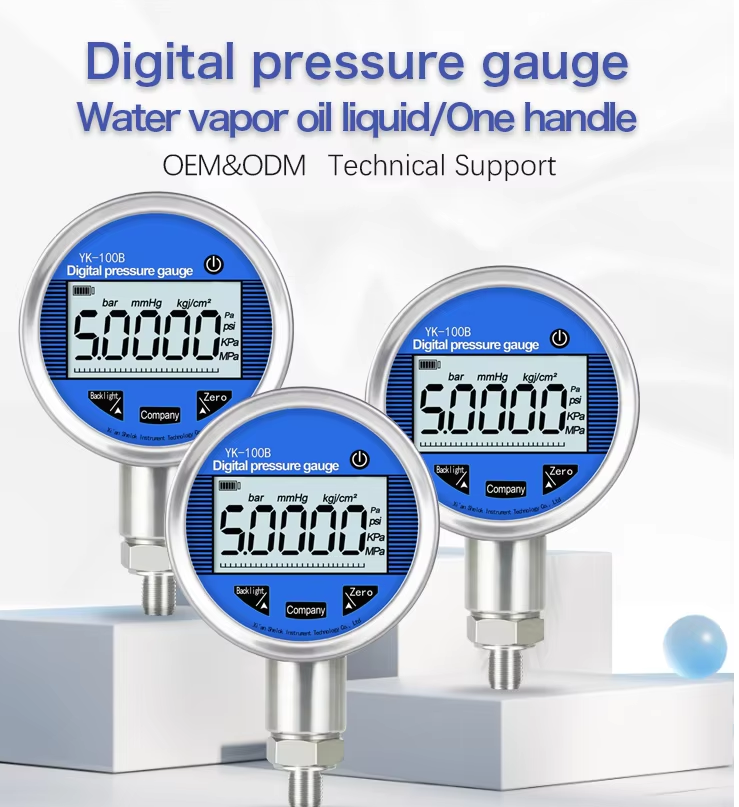

YK-100 digital pressure gauge features imported sensor with excellent performance: high accuracy, corrosion/impact/vibration resistance, and stability. Equipped with ultra-low-power processor and power management chip, it runs on large-capacity lithium battery, no external power needed. With digital & analog display, readings are intuitive. Precision up to 0.05, ideal for calibrating/testing ordinary/precision pressure gauges and transmitters, replacing traditional mechanical ones. Search "YK-100 digital pressure gauge" for reliable industrial measurement.

Specification Digital Pressure Gauge Digital Manometer With Selectable Units Digital Manometer:

Scale Range
-0.1~0~250MPa
Accuracy
0.4%, 0.2%,
Overload capacity
200%
Pressure Type
Vacuum,Gauge,Absolute Pressure
Stability
≤0.1%/year
Battery voltage
High energy 3.7v lithium battery
Display
LCD,5characters
Display range
-19999~99999
Ambient temperature
-20°C~70°C
Relative humidity
≤80%
Connection size
M20x1.5 Male or oem
Pressure unit
MPa,Kpa,PSI,mmHg,mHg,Bar,kgf/cm2,Pa
Case material
SS
Medium temp
-10~80°C

YK-60/80/100 Digital Pressure Gauge
Code Measuring range
-0.1~0MPa, 0.6MPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa,25MPa, 40MPa..100Mpa
Code Process connection
M1 M20*1.5 M4 NPT1/2
M2 G1/4 M5 NPT1/4
M3 G1/2 M6 Customized
Code Power supply
P1 AAA 7 batteries
P2 Lithium battery
P3 External 220V/24V power supply
Code Accuracy
2 0.1
3 0.2
4 0.25
4 0.4
4 0.5

Digital Pressure Gauge Digital Manometer With Selectable Units Digital Manometer
