Portable Handheld Pressure Pump
Portable Handheld Pressure Pump
Portable Handheld Pressure Pump
Portable Handheld Pressure Pump
Portable Handheld Pressure Pump
Portable Handheld Pressure Pump
Specifications
Brand Name :
YunYi
Model Number :
Y039
Certification :
CE，ROHS
Place of Origin :
China
MOQ :
1
Price :
140~160 USD/set
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
100pcs/month
Delivery Time :
7days
Packaging Details :
Plastic box
Item :
Portable Handheld Pressure Pump
model number :
Y039
Range :
0-1.6Mpa
flexible hose connector :
M20*1.5 female
master gage connector :
1/4NPT male
Application :
offer pressure to pressure gauge
Warranty :
12 months
Package size :
250x150x150mm
Description

Y039 Air Hand Pressure Calibrator Portable Handheld Pressure Pump

Description Y039 Air Hand Pressure Calibrator Portable Handheld Pressure Pump

YFP type vacuum pressure hand pump is a quick hand pressure source, by adjusting the pressure vacuum valve can realize the vacuum pumping and positive pressure, suitable to calibrate kinds of differential pressure, vacuum, vacuum pressure and pressure instrument.

Technical Parameters:

1. Output pressure: -0.088~1.6MPa(-0.88~16bar)

-0.088~2.0MPa(-0.88~20bar)

-0.088~2.5MPa(-0.88~25bar)

2. Work Environment: Temperature: 0~40℃

Relative Humidity: 5~95%

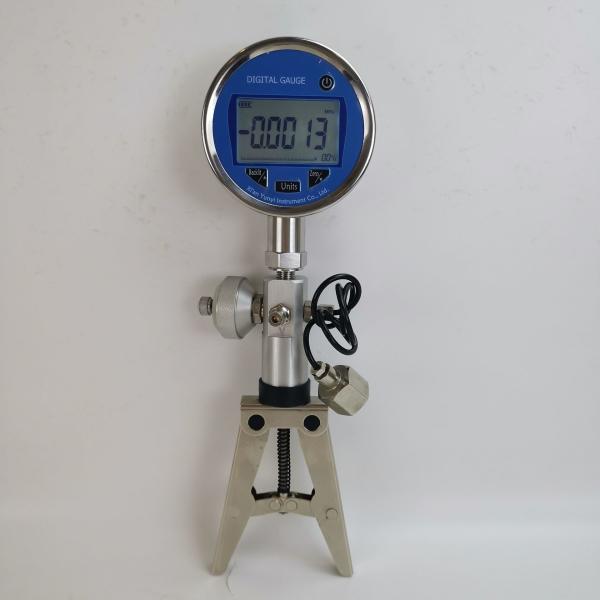

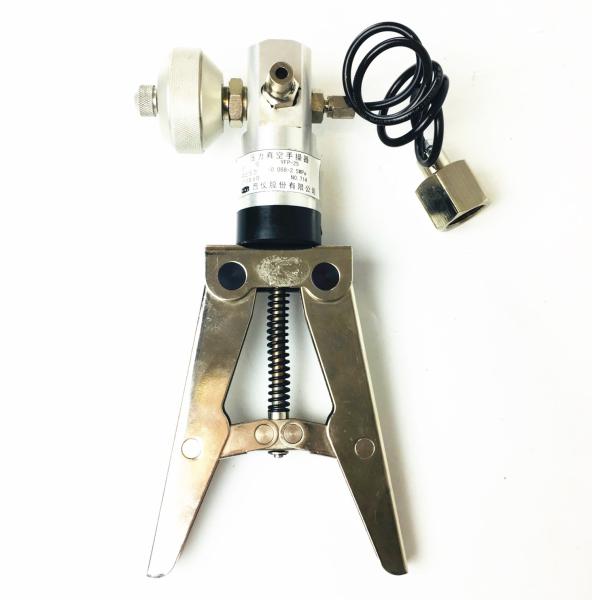

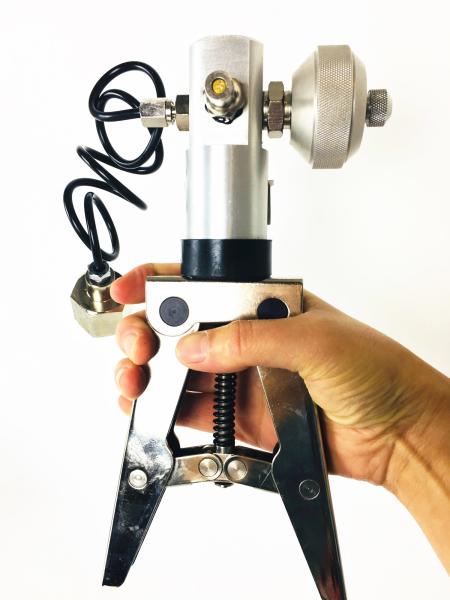

Detailed Images Y039 Air Hand Pressure Calibrator Portable Handheld Pressure Pump

Portable Handheld Pressure Pump

Specification Y039 Air Hand Pressure Calibrator Portable Handheld Pressure Pump

output pressure range

Y039: 0-1.6MPa

Y061: -0.1-0MPa

Y060: -25MPa

YFP-16: -0.088~1.6MPa(-0.88~16bar)

YFP-20: -0.088~2.0MPa(-0.88~20bar)

YFP-25: -0.088~2.5MPa(-0.88~25bar)
operating temperature -20~50C
operating relative humidity ~100%
flexible hose connector M20*1.5 female
master gage connector 1/4NPT male
dimensions 235×120×65 230 x 110 x 60
weight 0.6kg 0.5kg
Accessories 500 mm long plastic hose and a leatherette carrying bag
Outlet threads 1/4 NPT, or to custom request
Vernier-adjuster

micro-adjustable, volume control

Usage:
1. Connect the instrument, close the pressure relief valve, and pump pressure using the handle.

2. Slide the vacuum/pressure valve from "V" (vacuum) or "P" (positive pressure) to the opposite side for quick mode switching.

3. Use the trimmer for fine-tuning during positive pressure to ensure accurate readings.

4. After positive pressure testing, release pressure via the relief valve before disconnecting the instrument.

Accessories: adapter: 1/4NPT (Male) to M14x1.5 (Female) 1 piece
