High Pressure Industrial Pipeline electromagnetic Flow Meter Sewage FlowMeter

The Industrial Pipeline electromagnetic Flow Meter Sewage FlowMeter is designed for use in industrial applications and is capable of withstanding high pressures up to 42MPa. Its stainless steel watchcase and high-pressure flange make it durable and reliable for measuring the flow of conductive liquids with a conductivity greater than 5μS/cm. This flow meter consists of a sensor and converter, and it operates based on Faraday's law of electromagnetic induction. It is suitable for measuring the volume flow of conductive liquids, as well as homogeneous liquid-solid two-phase flows, corrosive liquids, slurries, and pulp. With its high-quality construction and versatility, this flow meter is an ideal solution for monitoring sewage and other industrial liquid flows.

Specification of DN15~DN300 Industrial Pipeline electromagnetic Flow Meter Sewage FlowMeter

1. Simple and reliable structure with no moving parts, ensuring long-lasting performance.
2. No shut-off or flow-blocking parts, resulting in minimal pressure loss and fluid blockage.
3. Fast response and excellent stability, suitable for automatic detection and adjustment control systems.
4. Measurement accuracy remains unaffected by the type, temperature, viscosity, pressure, or other physical parameters of the medium being measured.
5. Various lining and electrode material combinations available to meet the needs of different media.
6. All-digital processing, strong anti-interference capability, and high measurement accuracy of up to 150:1 flow range.
7. User-friendly Chinese character menu operation for easy use.
8. High-definition backlit LCD display for clear and easy reading.

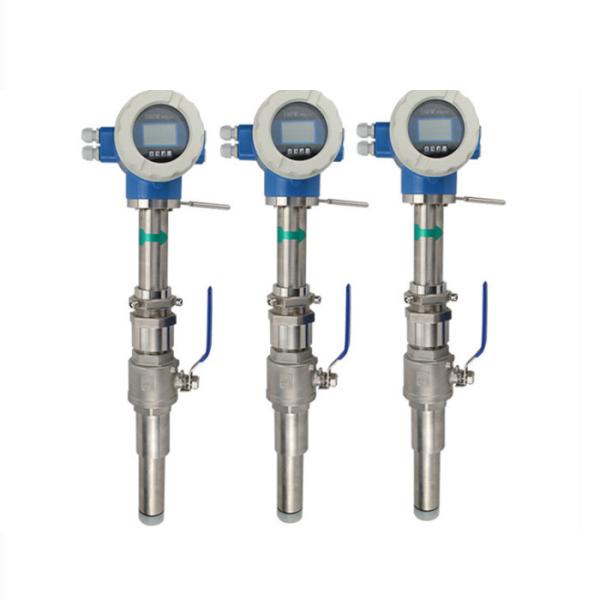

Detaild picture of DN15~DN300 Industrial Pipeline electromagnetic Flow Meter Sewage FlowMeter
