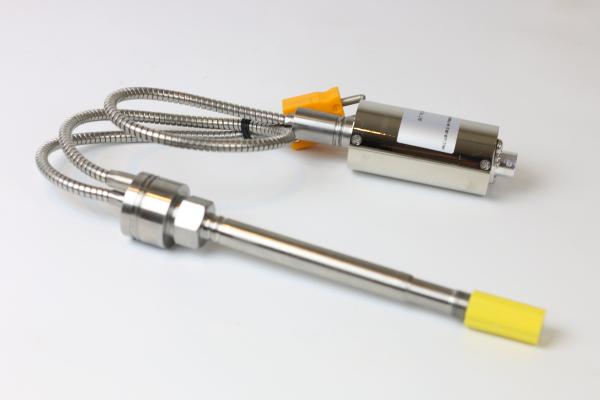

YD-327 High Temperature Pressure Transducer with Threaded Process Connection and Customizable Pressure Range
YD-327 High Temperature Pressure Transducer with Threaded Process Connection and Customizable Pressure Range
YD-327 High Temperature Pressure Transducer with Threaded Process Connection and Customizable Pressure Range
YD-327 High Temperature Pressure Transducer with Threaded Process Connection and Customizable Pressure Range
YD-327 High Temperature Pressure Transducer with Threaded Process Connection and Customizable Pressure Range
YD-327 High Temperature Pressure Transducer with Threaded Process Connection and Customizable Pressure Range
YD-327 High Temperature Pressure Transducer with Threaded Process Connection and Customizable Pressure Range
YD-327 High Temperature Pressure Transducer with Threaded Process Connection and Customizable Pressure Range
YD-327 High Temperature Pressure Transducer with Threaded Process Connection and Customizable Pressure Range
YD-327 High Temperature Pressure Transducer with Threaded Process Connection and Customizable Pressure Range
Specifications
Brand Name :
yunyi
Model Number :
YD-327
Certification :
CE
Place of Origin :
China
MOQ :
1 Piece
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000-5000pcs
Delivery Time :
10 work days
Packaging Details :
cardboard box
Description

YD-327 High Temperature Pressure Transducer

The YD-327 is a premium, high-performance pressure transducer engineered specifically for demanding applications involving extreme temperatures. Utilizing advanced sensing technology and robust construction, it delivers exceptional accuracy, long-term stability, and reliable operation in harsh environments. Its key feature is the integrated cooling element that effectively protects the internal electronics, allowing for direct measurement in high-temperature media where standard transducers would fail. The YD-327 is the ideal solution for industries such as energy generation, aerospace, automotive testing, and industrial process control.

Key Features & Benefits

Exceptional High-Temperature Resistance: Directly measures media temperatures up to 300°C (572°F) with optional cooling.

High Accuracy & Stability: Precision-machined sensor ensures reliable and repeatable measurements.

Robust Construction: Manufactured from stainless steel (17-4PH) for excellent corrosion resistance and durability.

Multiple Electrical Outputs: Available in various output signals (e.g., 4-20mA, 0-5V, 0-10V) for easy integration into existing systems.

Threaded Process Connection: Standard G1/2" or NPT 1/2" male thread for secure and leak-free installation.

Technical Specifications

Parameter Specification
Pressure Range 0-100psi to 0-10,000psi (custom ranges available)
Output Signal 4-20mA (2-wire); 0-5VDC; 0-10VDC; 1-5VDC
Power Supply 12-36 VDC (for voltage output); 15-36 VDC (for 4-20mA)
Accuracy ±0.5% FS (typical); ±0.25% FS (optional)
Long-Term Stability ±0.2% FS / year
Media Temperature -20°C to +125°C (Standard, without cooling)
Up to +300°C (With integrated cooling system)
Compensated Temperature -10°C to +80°C
Proof Pressure 150% of Full Scale
Burst Pressure 200% of Full Scale
Electrical Connection DIN43650-A; M12x1 connector (optional)
Process Connection G1/2" or 1/2" NPT Male (other options available)
Diaphragm Material 17-4PH Stainless Steel
Housing Material 304 Stainless Steel
Ingress Protection IP65 (Standard)

Typical Applications & Operating Environment

The YD-327 is designed to perform reliably in the most challenging conditio

  • Industries:
  1. Power Generation: Steam line pressure, turbine monitoring.
  2. Automotive Test: Engine oil pressure, brake system testing, exhaust gas recirculation (EGR) systems.
  3. Industrial Machinery: Hydraulic and pneumatic systems operating in hot environments.
  4. Chemical Processing: Reactor pressure monitoring with heated chemicals.
  5. Aerospace: Fuel and oil pressure measurement in test rigs.
  • Operating Environment:
  1. The transducer is suitable for both indoor and outdoor use.
  2. Its IP65 rating protects it against dust and low-pressure water jets.
  3. The housing is resistant to common oils, fuels, and solvents.
  4. For optimal performance and longevity, it is recommended to install the transducer in a location with minimal vibration and electrical noise.
