Digital Pressure Gauge with Impact Resistant Sensor Core and Long Battery Life for Continuous Online Pressure Monitoring
Digital Pressure Gauge with Impact Resistant Sensor Core and Long Battery Life for Continuous Online Pressure Monitoring
Specifications
Brand Name :
YunYi
Model Number :
YK-80
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD39.0-USD42.0/piece
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/week
Delivery Time :
10 days
Packaging Details :
carton box
Description

Smart Water Precision Appliance 0 600 Bar Pressure Gauge Digital

Description

1. Product OverviewPrecision digital pressure gauge is an online measuring instrument mainly controlled by a micro controller, This produet uses highquality pressure sensor cores, which have advantages such as high precision, corrosion resistance, impact resistance, yibrationresistanee, sm all temperalure drift, and good stability, sing low-power microprocessors to delay battery life without the need foran external power soure,, mak ing installation and use convenient, It can be used for gauge pressure, absolute pressure, anddiflerential pressure detection, with a vaniety of forms and varieties, ineluding ordinary type, explosion-proof type, diaphragmtype, ete, Can meet various measurement needs, lt fundamentally overcomes many shotcomings of pointer pres ure gauges, suchas low accuracy, poor reliability, and high damage rate, especially in corrosive and vibration environments, demonstrating itsextraordinary perfommanee, This produet is widely used in fields such as petroleum, chem ical, aviation, and various industrial gasliquids

Digital Pressure Gauge with Impact Resistant Sensor Core and Long Battery Life for Continuous Online Pressure Monitoring

Parameter

Pressure Range -0.1~0~100MPa Accuracy 0.2 ,0.5,1
Overload capacity 1.5 times full Pressure Type Vacuum,Gauge,Absolute Pressure

Response time:

≤50ms

 Battery voltage Two AAA 7 batteries (3V)
Display

up to 4 dynamic pressure display

 Measuring medium:

water, gas, etc. compatible with stainless steel

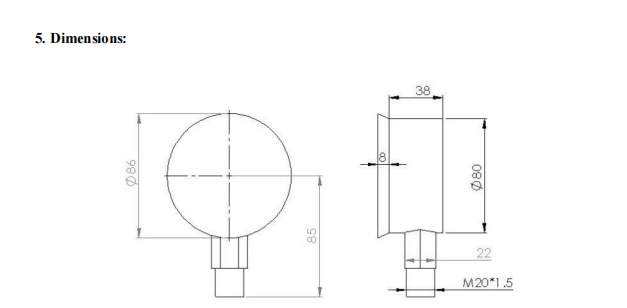

Connection size M20x1.5 Male Pressure unit MPa/KPa/Bar/Psi
Case material SS Working temperature:

-10～60°C

Features

1. The keys are made of rubber conductive keys, which are gentle to touch, easy to rebound, and have a longer life span.

2. The instrument interface use stainless steel, high hardness, impact resistance, anti-rust and anti-fouling

3. FSTN large LCD screen, clear display, easy to read, viewing angle and low temperature resistance performance is stronger than ordinary STN

4. Using high-precision imported AD chip, low power consumption and fast processing speed

5. Optimized circuit design, reduce signal transmission loss, accurate sensing, accurate measurement
