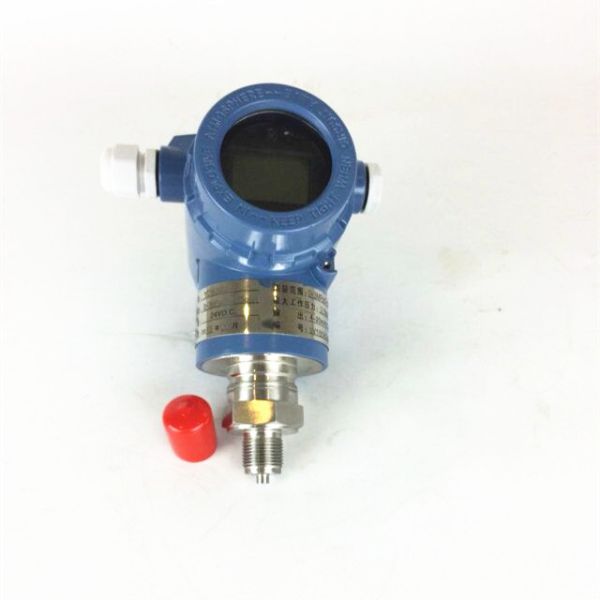

Get Accurate Readings Every Time with YD-3051 Digital Intelligent Differential Pressure Transmitter
Get Accurate Readings Every Time with YD-3051 Digital Intelligent Differential Pressure Transmitter
Get Accurate Readings Every Time with YD-3051 Digital Intelligent Differential Pressure Transmitter
Get Accurate Readings Every Time with YD-3051 Digital Intelligent Differential Pressure Transmitter
Get Accurate Readings Every Time with YD-3051 Digital Intelligent Differential Pressure Transmitter
Get Accurate Readings Every Time with YD-3051 Digital Intelligent Differential Pressure Transmitter
Get Accurate Readings Every Time with YD-3051 Digital Intelligent Differential Pressure Transmitter
Get Accurate Readings Every Time with YD-3051 Digital Intelligent Differential Pressure Transmitter
Get Accurate Readings Every Time with YD-3051 Digital Intelligent Differential Pressure Transmitter
Get Accurate Readings Every Time with YD-3051 Digital Intelligent Differential Pressure Transmitter
Specifications
Brand Name :
Shelok
Model Number :
YD-3051
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/P, T/T, D/A, D/P, T/T
Supply Ability :
1000-5000pcs
Delivery Time :
10 days after get payment
Packaging Details :
cardboard Box
accuracy :
0.2%FS , 0.5% FS
output :
hart , 4-20mA
range :
0-1.6MPa 1.6~2.5Mpa
weight :
4.5kg
packing :
285*230*225mm
Description

Description 3051 Capacitive differential pressure transmitter

YD-3051 Series Digital & Smart Pressure/Differential Pressure Transmitter

The YD-3051 series is a multi-functional digital and intelligent transmitter developed on the basis of globally advanced capacitive sensor technology. It integrates sophisticated single-chip computing and digital sensor conversion to deliver high performance and reliability.

This product utilizes digital signal processing technology, offering excellent noise resistance and zero-point stability. It features zero-point automatic tracking (ZSC) and temperature automatic compensation (TSC). The integrated design of signal conversion, acquisition, processing, and current output ensures a compact and robust structure. The sensing component is known for its stability, reliability, and vibration resistance.

Key Features:

  • Advanced capacitive sensor technology

  • Digital signal processing with high noise immunity

  • Automatic zero and temperature compensation

  • All-in-one compact and reliable design

  • Stable, shock-resistant sensing component

Detailed Images

Get Accurate Readings Every Time with YD-3051 Digital Intelligent Differential Pressure Transmitter

Get Accurate Readings Every Time with YD-3051 Digital Intelligent Differential Pressure Transmitter

Specification

Range code Range Measuring range
Min. Max.
4 0.374KPa 37.4KPa -37.4~37.4KPa
5 1.868KPa 186.8KPa -186.8~186.8KPa
6 6.9KPa 690KPa -690~690KPa
7 20.68KPa 2068KPa -2068~2068KPa

Technical Data Capacitive

Output Analog output: two –wire 4-20mADC
Digital output: two –wire 4-20mADC and superimposing variable digital signal accord with HART
Power supply supply voltage 24VDC
Limit load Max load resistor Rmax in loop decided by the supply voltage, see the below drawing. HART PROTOCOL require the load resistor not less than 250Ω,not more than 600Ω
Communication distance Max. 1.5Km, multi-address communication can connect 15 smart transmitters Max.
Display 4 digital display,5 digit LCD display, pointer type.
Explosion-proof ExiaIICT5;explosion suppression type
Zero offset Can positive transfer or negative transfer, but can not overstep the utmost value
Temperature ambient temperature -40-85℃(When choose LCD : -20-70℃)
Medium temperature -40~104℃
Static pressure and single side overpressure 3.45KPa(absolute pressure)~31.2MPa(gauge pressure)
Relative humidity 5~98%RH
Run-up time less than 5 sec.
Capability change Less than 0.16cm3
Damp adjust 0.20~25 second
Malfunction alarming If occur malfunction, automatism diagnose function will output 3.9 or 21.0mA
Configuration protection To avoid the datas are modified random, can utilize software or protect switch lock the record data

Reference condition

zero is the lower limit and not offset, temperature 25℃, Atmospheric pressure, 24VDC power,

silicon oil , diaphragm 316L, data adjust range the same as the up and lower limit of the range.
Accuracy ±0.075~±0.2%
Stability ≤0.2%URL/year
Tem. influence ±(0.05%URL+0.15%FS+200Pa)20℃
Static pressure influence zero error 0.1URL/6.9Mpa; Zero error 0.1URL/1.7MPa
Vibration influence withstand frequency 200Hz at any direction, arouse error ±0.05%URL
Power influence <0.005%/V
Load influence no load influence
Mounting position influence about 250Pa zero offset, can be eliminate via calibration, no range influence.
RF interference influence drift is ±0.1%span in the condition of 30-1000MHz frequency and the most field intensity 10V/m

Note:The model belongs to the project special pressure transmitter ,all data can be custom according to the customers requirements.

Get Accurate Readings Every Time with YD-3051 Digital Intelligent Differential Pressure Transmitter

Features

  • Core Sensor: Single-crystal silicon resonant sensor technology

  • Measurement Capability: Pressure, differential pressure, and temperature

  • Accuracy: ±0.075% to ±0.2% F.S

  • Long-term Stability: ≤0.2% per year

  • Output & Communication: 4–20 mA standard output, RS-485 interface

  • Intelligent Features: Supports field-based control function upgrades

  • Environmental Performance: Low temperature drift, minimal static pressure effect

Applications Fields

Get Accurate Readings Every Time with YD-3051 Digital Intelligent Differential Pressure Transmitter

Get Accurate Readings Every Time with YD-3051 Digital Intelligent Differential Pressure Transmitter

Chemical equipment, hydraulic engineering, industrial gases, hydraulic systems, and related industrial sectors.
