Specifications
Brand Name :
YunYi
Model Number :
YK-102
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000-5000pcs
Delivery Time :
10 work days
Packaging Details :
cardboard Box
Description

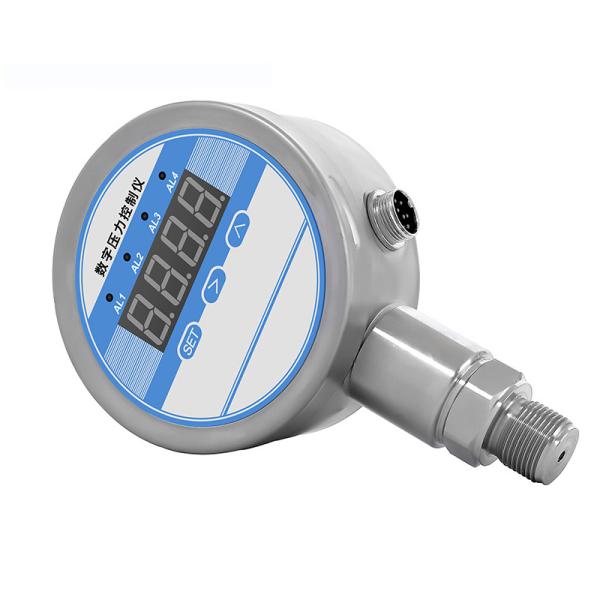

YK-102 Digital Pressure Transmitter & Controller

This integrated instrument combines pressure measurement, display, analog transmission, and alarm output in a single compact unit. Built around a high-performance U.S. imported pressure sensor and an intelligent microcontroller, it delivers high-precision measurement and control capabilities.

YK-102 The Smart Water Pressure Sensor with Intelligent Microcontroller and High-Performance Pressure Sensor

Key Features:

  • High-precision pressure measurement

  • Compact and aesthetically designed housing

  • Integrated analog output (4–20mA)

  • Programmable alarm outputs

  • Clear digital display

  • All-in-one functional design

The YK-102 offers a comprehensive solution for industrial pressure monitoring and control applications where space-saving design and reliable performance are essential.

Overall dimensions

Technical Specifications

Parameter Specification
Power Supply AC 85–260 V / DC 24 V
Power Consumption < 3 W
Sampling Rate 3 times/second
Measurement Accuracy 0.1% FS, 0.2% FS, 0.5% FS
Feed Output DC 24 V (25 mA)
Constant Current Output 0.82–2.48 mA
Temperature Drift ≤ 0.02% FS/℃ (typ. 100 ppm/℃)
Display Range –1999 ~ 9999
Over-Limit Display "EEEE"
Display Type 0.56″ red, 4-digit
Contact Capacity AC 220 V, 3 A
Operating Environment 0 to +70℃; ≤ 85% RH
Dimensions 97 × 39 mm

Technical parameters:

Range range 0~100MPa Accuracy rating 0.5% F.S.
Overload capability 200% Type of stress Gauge Pressure
stability ≤0.1% / year Supply voltage 24VDC/220VAC
Display mode 0.56" nixie tube Display range

~

-1999 9999
Response time <30ms Ambient temperature - 20 ℃ ~ 70 ℃
Relative humidity 80% or less Interface material 304 stainless steel
