Wireless Draw‑Wire Displacement Sensor
Wireless Draw‑Wire Displacement Sensor
Specifications
Model Number :
YDW34
MOQ :
1sets
Delivery Time :
5-8 working days
Place of Origin :
China
Payment Terms :
T/T,Western Union,MoneyGram
Packaging Details :
carton or wooden box
Certification :
CE, ROHS, ISO
Brand Name :
YUNYI
Description

What It Is

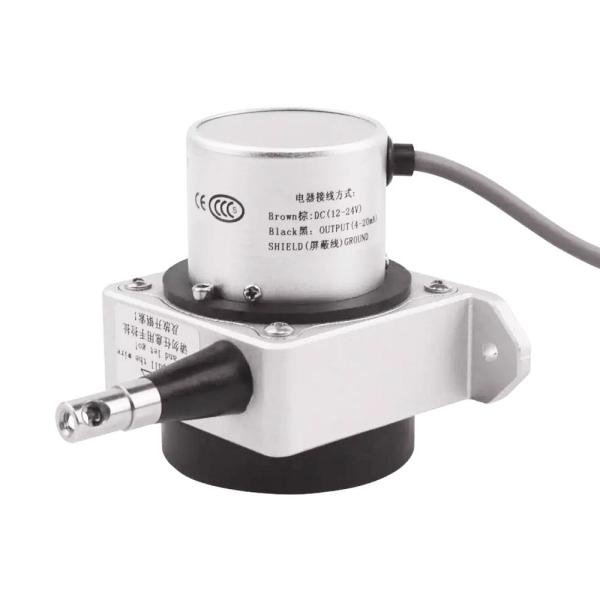

A draw‑wire sensor with built‑in 4G wireless transmission. It measures linear displacement by tracking how much cable is pulled out – just attach the cable to a moving object and the sensor does the rest.

Simple Key Features

  • Wireless 4G – send data to the cloud or your server from anywhere

  • IP68 waterproof – fully submersible, built for outdoor use

  • Long range – measures from a few hundred mm up to 15 metres (or more)

  • High precision – 0.01% linearity, resolution down to 0.001 mm

  • 9900mAh battery – low‑power design for months of operation

  • Built‑in display – see readings on site without a phone or laptop

  • Remote setup – change settings from your office – no field visit needed

  • Alarms – alerts for high/low displacement and low battery

  • Optional GPS – track exactly where the sensor is located

Where It's Used

  • Bridge and building movement monitoring

  • Hydraulic cylinder and valve position feedback

  • Mining equipment and slope stability

  • Railway track and dam displacement

  • Landslide early warning systems

Why Choose This One

  • No cables to run – saves installation time and cost

  • Works in rain, dust, and harsh conditions

  • Data is safe – auto‑reconnect and retry on signal loss

  • Easy to install and forget – long battery life and remote config
